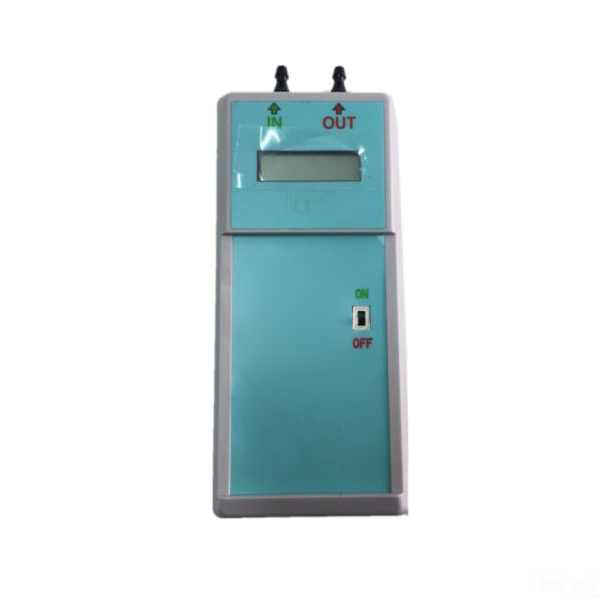

Ultrasonic Oxygen Analyzer Handheld
Product Code : EL-RAAE-10963
Quick answer: The handheld ultrasonic oxygen analyzer measures the oxygen concentration and flow rate of a medical gas stream, and is used to check oxygen concentrators, cylinders, ventilators and anaesthesia systems. It reads 21-96% O2 with ±3% accuracy, responds in under 30 seconds and runs over 250 hours on 2 AA cells. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Parameter | Value |
|---|---|
| Type | Handheld ultrasonic oxygen analyzer, permanent sensing chamber |
| O2 range | 21-96% |
| O2 accuracy | ±3% |
| Flow rate accuracy | ±3%, resolution 0.1 L/min |
| Response time | Under 30 seconds |
| Warm-up time | Under 15 seconds |
| Power | 2 x AA alkaline batteries, over 250 hours continuous use |
| Display | O2 concentration, flow rate, system messages, battery status |
How it is used
Ultrasonic analyzers work out oxygen concentration from the speed of sound in the gas. Sound travels at a different speed in oxygen than in nitrogen, so by timing ultrasonic pulses across a chamber of known length the instrument calculates the oxygen fraction, and the same timing method gives the flow rate. With no chemical fuel cell to use up, the sensing chamber is permanent.
Biomedical and clinical engineering teams use the analyzer to confirm that an oxygen concentrator is delivering its rated purity, that a cylinder or pipeline supply is correct, and that a ventilator or anaesthesia machine is delivering the set oxygen percentage.
- Switch the analyzer on and allow the warm-up of under 15 seconds.
- Connect it to the gas outlet, or fit the adapter for the ventilator or anaesthesia circuit.
- Wait for the reading to settle (under 30 seconds) and note the O2 percentage and flow.
- Leave it connected for continuous monitoring or disconnect after a spot check; it powers off by itself when idle.
Key features
- Ultrasonic sensing with a permanent sensing chamber
- Measures both O2 concentration (21-96%) and flow rate
- Self-calibration under typical conditions of use
- Spot-check or continuous use, with adapters for ventilators and anaesthesia systems
- Automatic power-off stretches battery life beyond 250 hours
- Display shows O2, flow, system messages and battery status
Documentation and supply
Operating instructions and a manual are supplied with the analyzer. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the handheld oxygen analyzer at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Resuscitation and Anaesthesiology Equipment products
- Oxygen Flow Meter 0 - 15 LPM (EL-RAAE-10962)

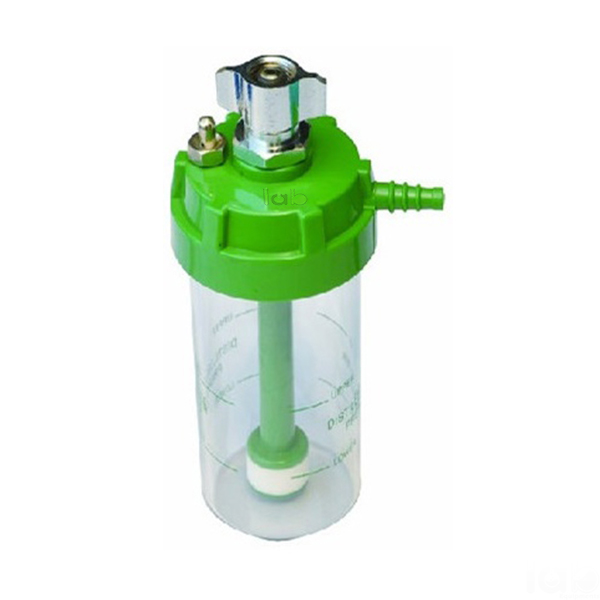

- Reusable Humidifier Bottle Non Heated (EL-RAAE-10964)

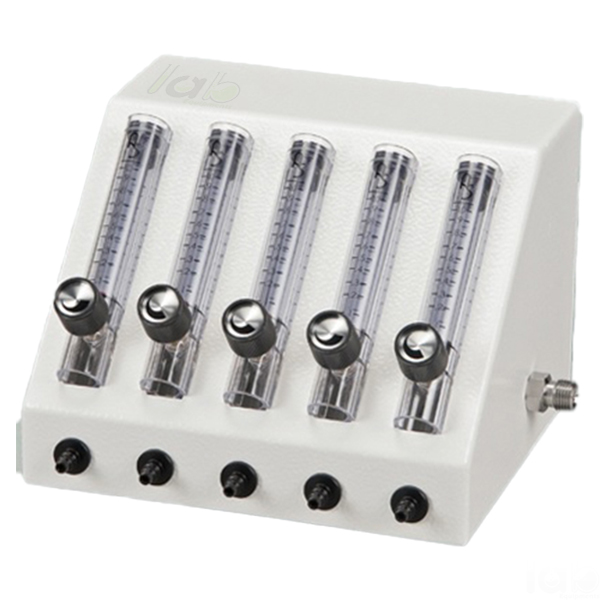

- Flow Splitter for Oxygen Concentrator (EL-RAAE-10965)

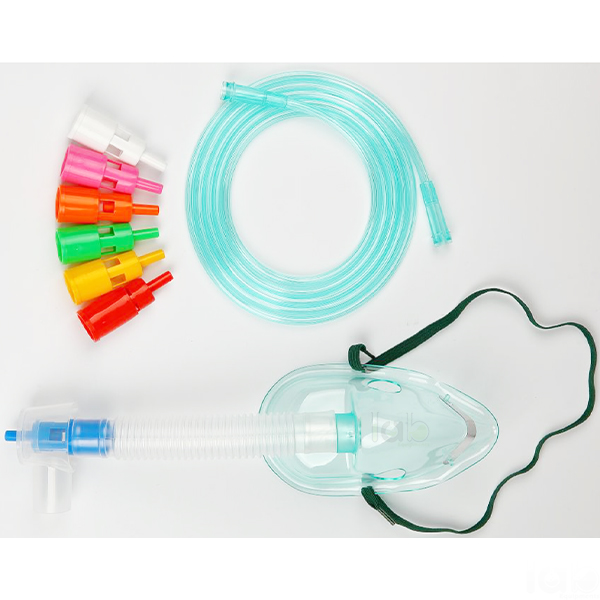

- Venturi Face Mask Adult Single Use (EL-RAAE-10966)

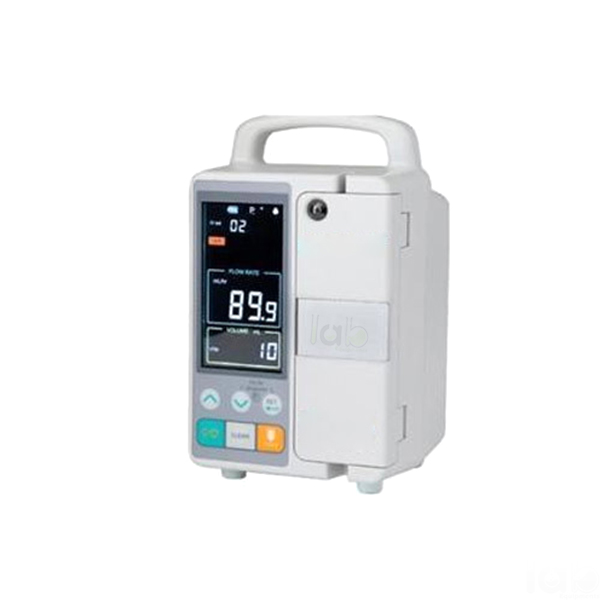

- Infusion Pump with Accessories (EL-RAAE-10967)

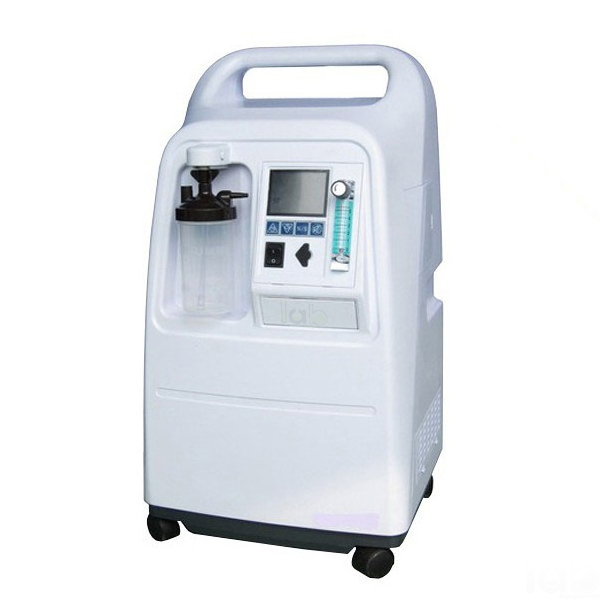

- Oxygen Concentrator (EL-RAAE-10968)
The full range is in the Resuscitation and Anaesthesiology Equipment section of the Hospital Lab range.
Frequently asked questions
What range does the oxygen analyzer measure?
Oxygen concentration from 21% to 96% with ±3% accuracy, plus flow rate with ±3% accuracy and 0.1 L/min resolution.
How is the analyzer powered?
By two replaceable AA alkaline batteries, giving more than 250 hours of continuous use.
Can it check an oxygen concentrator?
Yes. It measures oxygen concentration and flow from a gas source such as a concentrator, as well as through ventilators and anaesthesia systems.
What is the price of the handheld oxygen analyzer?
Prices are not published on the website. Add the handheld oxygen analyzer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-RAAE-10963 and the quantity, to receive a quotation.
Does Lab Exports manufacture the handheld oxygen analyzer?
Yes. Lab Exports manufactures the handheld oxygen analyzer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-RAAE-10963.
