Portable ECG Recorder w/access
Product Code : EL-MDE-10857
Quick answer: The Portable ECG Recorder with accessories is a digital electrocardiograph that acquires all 12 standard leads at once, records on 3 or 6 channels and prints on a built-in thermal printer. It is used for resting ECG screening and emergency cardiac assessment, running on mains or its rechargeable battery. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Parameter | Value |
|---|---|
| Leads | 12 standard leads (I, II, III, aVR, aVL, aVF, V1 to V6), simultaneous acquisition |
| Recording channels | 3 or 6 (model dependent) |
| CMRR | Above 89 dB |
| Frequency response | 0.05 to 150 Hz (minimum guaranteed) |
| Signal accuracy | ±5% input signal reproduction |
| ECG gain | 2.5, 5, 10, 20 mm/mV and Auto, ±5% |
| Input impedance | Above 2.5 MΩ or above 50 MΩ (model dependent) |
| Internal noise | Below 15 µV (p-p) |
| Patient leakage current | Below 10 µA |
| Printer | Built-in thermal; 5, 12.5, 25 or 50 mm/s, ±5%; 80 mm paper (3-channel) or 110 mm paper (6-channel) |
| Display | Backlit colour TFT LCD, 5 to 8 inch (model dependent) |
| Power supply | 110-220 V, 50-60 Hz, 80 W, rechargeable battery backup |
| Battery autonomy | Over 2.5 hours or 800 exams, whichever is higher |
How the ECG recorder is used
An electrocardiograph records the small voltages that the heart's electrical activity produces at the skin. Ten electrodes, four on the limbs and six across the chest, give the twelve standard views of the heart: limb leads I, II, III, aVR, aVL and aVF, and chest leads V1 to V6. This recorder acquires all twelve at the same moment and prints them on 3 or 6 channels.
Built-in analysis gives rhythm and event interpretation and pacemaker detection, while selectable filters remove baseline drift, mains interference and muscle artefact so the trace stays readable. Exams are held in internal storage and can be exported by USB or network for reporting.
- Enter the patient details and check that every electrode shows a good connection.
- Ask the patient to lie still and relaxed, then select the filters and gain needed.
- Start the recording; all 12 leads are acquired together and printed at the chosen paper speed, commonly 25 mm/s.
- Review the analysis, save the exam and export it if required.
Key features
- Simultaneous 12-lead acquisition with 3 or 6 channel printout
- Real-time and manual ECG analysis with rhythm and event interpretation, pacemaker detection and auto-zero
- Selectable baseline drift, AC mains and muscle artefact (EMG) filters
- Defibrillation and AC fluctuation protection with baseline recovery in under 5 s
- Internal storage with export by USB and network interface
- Continuous electrode-connection check and automatic switch to battery on power failure
Documentation and supply
Installation instructions and an operating manual are supplied with the recorder. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the portable ECG recorder at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Medical Diagnostic Equipment products
- FHR Doppler Detector with Accessories (EL-MDE-10856)
- CTG Monitor with Accessories (EL-MDE-10858)
- Handheld Pulse Oximeter Incl. Respiratory (EL-MDE-10855)

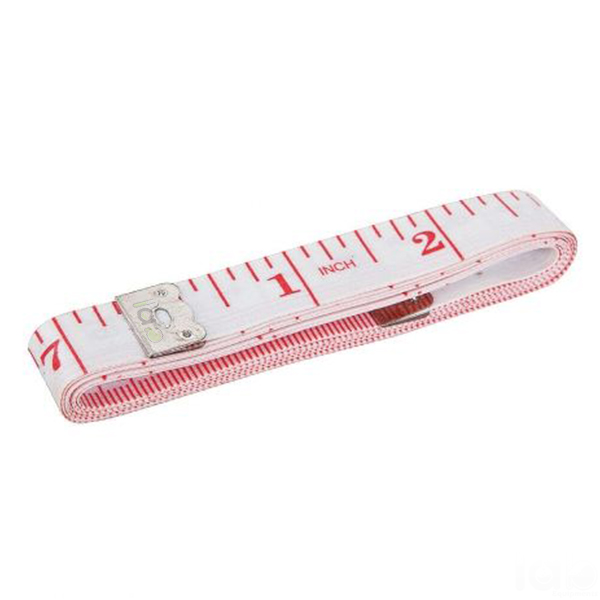

- Tape Measure Fibreglass Tailors (EL-MDE-10859)
- Disposable Wooden Tongue Depressor (EL-MDE-10860)
- Flashlight Pre-focused (EL-MDE-10861)
The full range is in the Medical Diagnostic Equipment section of the Hospital Lab range.
Frequently asked questions
How many leads does the portable ECG recorder acquire?
It acquires all 12 standard leads (I, II, III, aVR, aVL, aVF and V1 to V6) simultaneously and records them on 3 or 6 channels depending on the model.
Does the ECG recorder have a printer?
Yes. A built-in thermal printer runs at 5, 12.5, 25 or 50 mm/s on 80 mm paper (3-channel) or 110 mm paper (6-channel).
How long does the battery backup last?
The rechargeable battery gives over 2.5 hours or 800 exams, whichever is higher, and the unit switches to battery automatically if mains power fails.
What is the price of the portable ECG recorder?
Prices are not published on the website. Add the portable ECG recorder to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-MDE-10857 and the quantity, to receive a quotation.
Does Lab Exports manufacture the portable ECG recorder?
Yes. Lab Exports manufactures the portable ECG recorder at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-MDE-10857.
