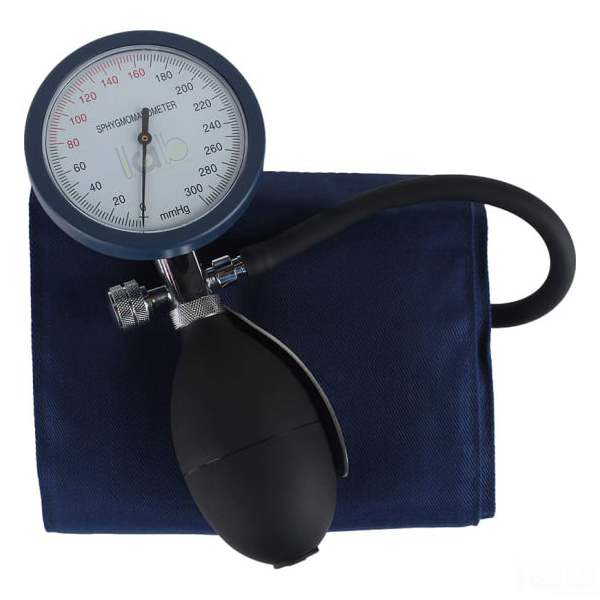

Sphygmomanometer Adult Aneroid
Product Code : EL-MDE-10867
Quick answer: The Sphygmomanometer Adult Aneroid is a mercury-free blood pressure instrument with a needle gauge on the inflation bulb and a washable adult cloth cuff, used with a stethoscope to measure systolic and diastolic pressure from the Korotkoff sounds. The gauge reads 0-300 mmHg with ±3 mmHg accuracy. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Parameter | Value |
|---|---|
| Gauge range | 0-300 mmHg (minimum), increments of 2 mmHg (maximum) |
| Accuracy | ±3 mmHg |
| Gauge | Manometer needle gauge integrated with the inflation bulb, with pressure release valve |
| Cuff | Washable one-size adult cloth cuff with inflatable bag, velcro fastening, reinforced at both ends |
| Tube length | 50-80 cm |
| Connector | Universal quick connector, compatible with all inflation bulb types |
| Materials | Latex free, mercury free |
| Weight | Approx. 0.494 kg |
| Operating conditions | 10-40 °C, 85% RH non-condensing |
| Storage conditions | 5-50 °C, 85% RH non-condensing |
How blood pressure is measured
The cuff is wrapped round the upper arm and inflated with the bulb until it squeezes the brachial artery shut. As the pressure is let down slowly through the release valve, the examiner listens over the artery with a stethoscope. The first tapping sound (Korotkoff phase I) marks the systolic pressure, and the point where the sounds disappear marks the diastolic pressure.
An aneroid gauge measures pressure mechanically, with a sealed metal capsule that flexes and turns the needle, so it contains no mercury and is light enough to carry between wards and on home visits. With the gauge built into the bulb, one hand can inflate, deflate and read at the same time.
- Seat the patient with the arm supported at heart level and wrap the cuff snugly round the upper arm.
- Place the stethoscope over the brachial artery at the elbow.
- Inflate to about 30 mmHg above the point where the radial pulse can no longer be felt.
- Deflate at about 2 to 3 mmHg per second, noting the systolic and diastolic readings.
Key features
- Gauge range 0-300 mmHg in increments of 2 mmHg or finer
- ±3 mmHg accuracy
- Washable one-size adult cloth cuff with velcro fastening, reinforced at both ends
- Needle gauge and pressure release valve built into the inflation bulb
- Universal quick connector compatible with all inflation bulb types
- Latex free and mercury free, weighing approx. 0.494 kg
Documentation and supply
A user manual is supplied with the instrument. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the aneroid sphygmomanometer at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Medical Diagnostic Equipment products
- Clinical Thermometer Digital (EL-MDE-10866)
- Binaural Stethoscope Complete (EL-MDE-10868)
- Ultrasound Scanner Mobile w/access (EL-MDE-10865)
- Pulse Oximeter Portable with Accessories (EL-MDE-10869)
- Stethoscope Foetal Pinard (EL-MDE-10864)
- Ophthalmoscope Set (EL-MDE-10863)
The full range is in the Medical Diagnostic Equipment section of the Hospital Lab range.
Frequently asked questions
How accurate is the aneroid sphygmomanometer?
It is accurate to ±3 mmHg over a gauge range of 0-300 mmHg.
What cuff is supplied with it?
A washable, one-size-fits-all adult cloth cuff with velcro fastening, reinforced at both ends.
Is the sphygmomanometer used with a stethoscope?
Yes. In the auscultatory method a stethoscope is placed over the brachial artery to hear the Korotkoff sounds while the cuff is deflated.
What is the price of the aneroid sphygmomanometer?
Prices are not published on the website. Add the aneroid sphygmomanometer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-MDE-10867 and the quantity, to receive a quotation.
Does Lab Exports manufacture the aneroid sphygmomanometer?
Yes. Lab Exports manufactures the aneroid sphygmomanometer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-MDE-10867.
Request a quote
Email [email protected] with the house code EL-MDE-10867 and the quantity, or add the aneroid sphygmomanometer to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
