Binaural Stethoscope Complete
Product Code : EL-MDE-10868
Quick answer: The Binaural Stethoscope Complete is a mechanical listening instrument for hearing heart and lung sounds, with a double-cup chest piece for adult and paediatric patients joined by a Y tube to two ear pieces. It has a 43-47 mm adult and a 28-36 mm paediatric diaphragm and is latex free. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Part | Specification |
|---|---|
| Arms | Stainless steel or chrome brass |
| Ear pieces | Removable, plastic |
| Chest piece | Double cup, dual use (adult and paediatric), stainless steel or chrome-plated brass |
| Adult diaphragm | 43-47 mm |
| Paediatric diaphragm | 28-36 mm |
| Y tube | Treated rubber or PVC, 8-11 mm diameter |
| Sensitivity, lung sounds | 8.1 dB in the 600-1,500 Hz range |
| Sensitivity, heart sounds | 3.2-26 dB in the 50-1,000 Hz range |
| Material | Latex free |
How the stethoscope is used
A binaural stethoscope carries sound from the chest piece through the Y tube to both ears, shutting out room noise so that faint body sounds can be heard. Auscultation of the heart listens for the two normal heart sounds and for murmurs or added sounds; auscultation of the lungs compares breath sounds on each side and listens for wheezes or crackles.
The double-cup chest piece gives two listening surfaces: the larger 43-47 mm diaphragm for adults and the smaller 28-36 mm one for children, selected by turning the chest piece. Its sensitivity is specified for both the lower frequencies of heart sounds (50-1,000 Hz) and the higher frequencies of breath sounds (600-1,500 Hz).
- Fit the ear pieces pointing slightly forward, in line with the ear canals.
- Turn the chest piece to open the adult or paediatric side.
- Place the diaphragm firmly on bare skin at the standard listening points.
- Listen through complete breaths or several heartbeats at each point, then wipe the chest piece clean.
Key features
- Dual-use adult and paediatric double-cup chest piece
- Stainless steel or chrome brass arms and chest piece
- Removable plastic ear pieces
- Y tube of treated rubber or PVC, 8-11 mm diameter
- Sensitivity specified for both pneumology and cardiology auscultation
- Latex-free construction
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the binaural stethoscope at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Medical Diagnostic Equipment products
- Sphygmomanometer Adult Aneroid (EL-MDE-10867)

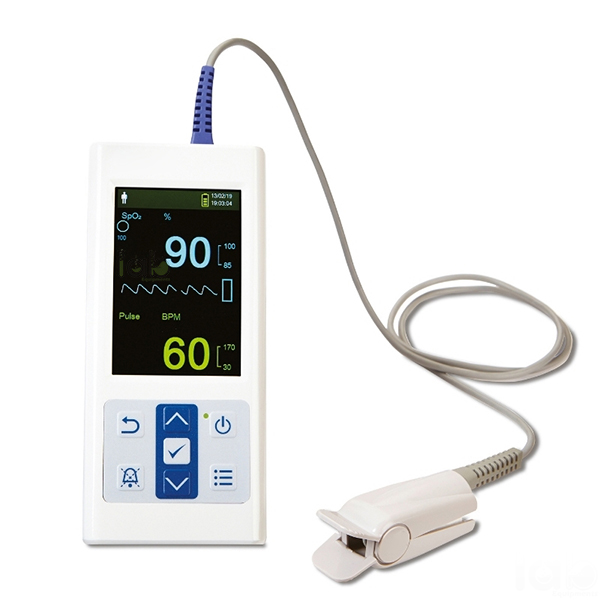

- Pulse Oximeter Portable with Accessories (EL-MDE-10869)
- Clinical Thermometer Digital (EL-MDE-10866)
- Ultrasound Scanner Mobile w/access (EL-MDE-10865)
- Stethoscope Foetal Pinard (EL-MDE-10864)
- Ophthalmoscope Set (EL-MDE-10863)
The full range is in the Medical Diagnostic Equipment section of the Hospital Lab range.
Frequently asked questions
Can the binaural stethoscope be used on children?
Yes. The double-cup chest piece has a 28-36 mm paediatric diaphragm as well as a 43-47 mm adult diaphragm.
What is the chest piece made of?
Stainless steel or chrome-plated brass.
Is the stethoscope latex free?
Yes. It is of latex-free construction.
What is the price of the binaural stethoscope?
Prices are not published on the website. Add the binaural stethoscope to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-MDE-10868 and the quantity, to receive a quotation.
Does Lab Exports manufacture the binaural stethoscope?
Yes. Lab Exports manufactures the binaural stethoscope at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-MDE-10868.
Request a quote
Email [email protected] with the house code EL-MDE-10868 and the quantity, or add the binaural stethoscope to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
