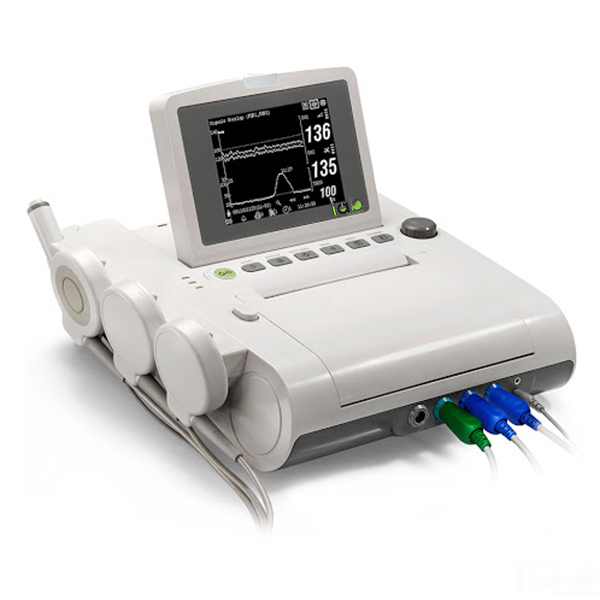

CTG Monitor With Accessories
Product Code : EL-MDE-10858
Quick answer: The CTG Monitor with Accessories is a tabletop cardiotocograph that records foetal heart rate (FHR) by ultrasound and uterine contractions (UC) by an external pressure sensor, with two FHR channels for twin pregnancies. It measures FHR from 40 to 240 bpm and prints the trace on a built-in thermal printer. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Parameter | Value |
|---|---|
| Channels | 2 FHR + 1 UC, continuous detection |
| Twins | Separate display of two FHR signals |
| FHR method | Ultrasound, 1 to 2 MHz ±10% (model dependent) |
| FHR range | 40 to 240 bpm |
| FHR accuracy | ±2 bpm |
| UC method | External pressure-sensitive detection |
| UC range | 0 to 100 units, resolution 1 unit |
| UC accuracy | ±10% |
| Printer | Integrated thermal, 110-112 mm printing area, 1, 2 or 3 cm/min, Z-folded paper |
| Display | 5.6 inch LCD showing FHR1, FHR2, UC waveform, alarms and system status |
| Power supply | 110-220 V, 50-60 Hz, 50 W, integrated battery charger |
| Battery autonomy | Over 2 hours |
How the CTG monitor is used
Cardiotocography records two signals side by side on the same paper: the foetal heart rate, picked up by an ultrasound doppler transducer placed over the foetal heart, and the mother's uterine contractions, sensed by a pressure transducer (tocodynamometer) on the upper abdomen. Reading the two traces together shows how the foetal heart rate responds to each contraction.
This monitor has two FHR channels, so twins can be followed at once with their traces shown separately. An Automatic Foetal Movement (AFM) feature and a wired remote switch let events and movements be marked on the record.
- Enter the patient information and load the Z-folded paper.
- Place the ultrasound transducer over the foetal heart (one per twin) and the UC transducer on the upper abdomen; the monitor detects each transducer automatically.
- Set the paper speed to 1, 2 or 3 cm/min and choose which FHR channel plays on the loudspeaker.
- Record for the required period, marking events with the remote switch, then store the exam.
Key features
- Twin FHR monitoring with separate FHR1 and FHR2 traces
- Automatic transducer detection with dedicated transducer slots
- Automatic Foetal Movement (AFM) with wired remote event-marker switch
- Loudspeaker with volume control and selectable FHR1 or FHR2 audio
- Audio and visual alarms for FHR1/FHR2, signal loss, battery, power, paper and system errors
- Automatic mains/battery switching, exam storage and a data/network interface
Documentation and supply
Installation instructions and an operating manual are supplied with the monitor. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the CTG monitor at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Medical Diagnostic Equipment products

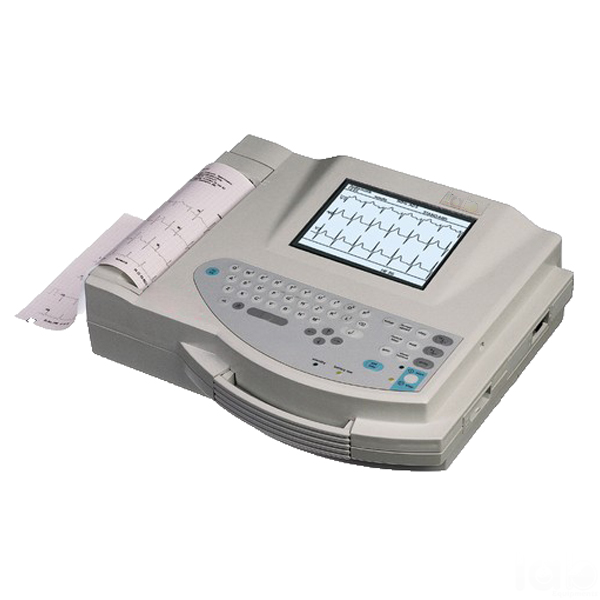

- Portable ECG Recorder w/access (EL-MDE-10857)

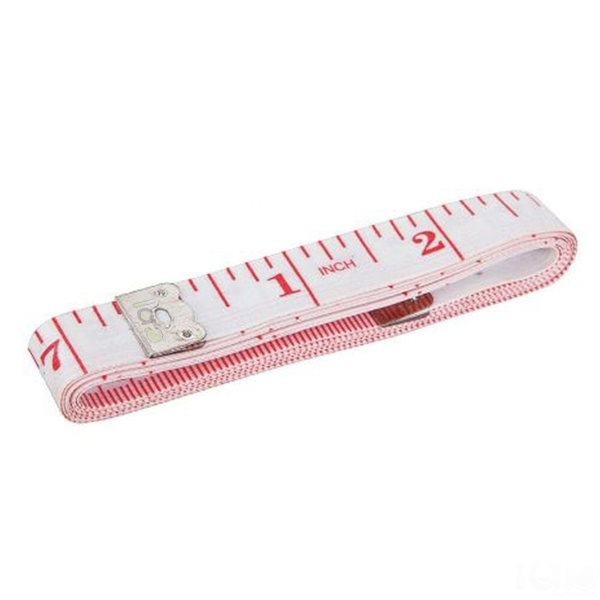

- Tape Measure Fibreglass Tailors (EL-MDE-10859)

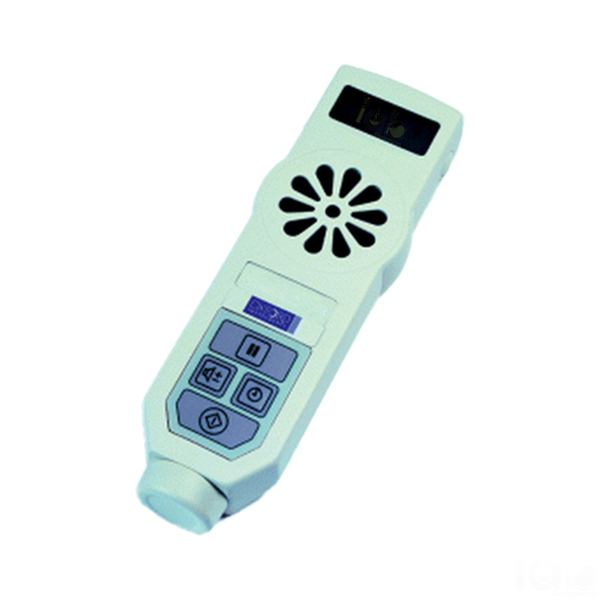

- FHR Doppler Detector with Accessories (EL-MDE-10856)
- Disposable Wooden Tongue Depressor (EL-MDE-10860)
- Handheld Pulse Oximeter Incl. Respiratory (EL-MDE-10855)
- Flashlight Pre-focused (EL-MDE-10861)
The full range is in the Medical Diagnostic Equipment section of the Hospital Lab range.
Frequently asked questions
Can the CTG monitor record twins?
Yes. It has two FHR channels and shows the two foetal heart rate signals separately.
What are the FHR and UC measuring ranges?
FHR is measured from 40 to 240 bpm with ±2 bpm accuracy; UC from 0 to 100 units with ±10% accuracy.
What printer does the CTG monitor use?
An integrated thermal printer with a 110-112 mm printing area and paper speeds of 1, 2 or 3 cm/min on Z-folded paper.
What is the price of the CTG monitor?
Prices are not published on the website. Add the CTG monitor to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-MDE-10858 and the quantity, to receive a quotation.
Does Lab Exports manufacture the CTG monitor?
Yes. Lab Exports manufactures the CTG monitor at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-MDE-10858.
