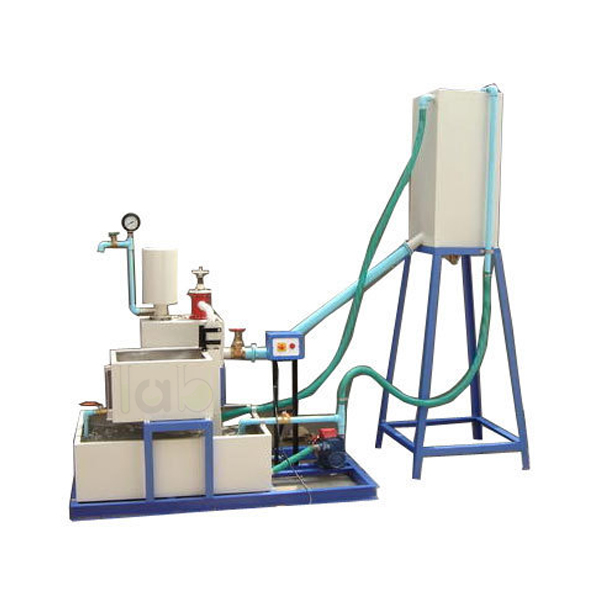

Hydraulic Ram Test Setup
Product Code : EL-HML-11057
Quick answer: The hydraulic ram test setup shows how a ram uses water hammer to lift a small flow to a high head using a larger flow at low head. The 50 x 15 mm ram works from a 2.5 m supply head and delivers up to 10 m; students measure useful and waste discharge to find its efficiency. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Component | Specification |
|---|---|
| Ram size | 50 x 15 mm |
| Supply head | 2.5 m |
| Delivery head | Up to 10 m |
| Valves | Pulse (waste) valve with adjustable closing pressure, and non-return valve |
| Air vessel | Stainless steel, above the valve chamber |
| Pipe line | 50 mm dia., 6 m length |
| Pump | 1 HP, standard make |
| Supply tank | 150 litres |
| Overhead tank | 100 litres |
| Measuring tanks | 2 nos. (useful and waste water), stainless steel, with piezometer tube and scale |
| Pressure gauge | Bourdon type |
| Services | 230 V AC, 50 Hz, single phase with earthing; tap water connection |
How the hydraulic ram experiment is done
A hydraulic ram needs no motor at the ram itself. Water from the overhead tank runs down the drive pipe and out through the open pulse valve until the flow is fast enough to slam the valve shut. The sudden stop causes a pressure rise, the water hammer effect, which opens the non-return valve and pushes a little water into the air vessel and up the delivery line. The pressure then falls, the pulse valve reopens and the cycle repeats. The air vessel evens these pulses into a steadier delivery.
Efficiency by D'Aubuisson's method is eta = q x H / ((q + Q) x h), and by Rankine's method eta = q x (H - h) / (Q x h), where q is the useful water delivered to head H, Q is the waste water and h is the supply head.
- Run the 1 HP pump to fill the overhead tank and hold the supply head at 2.5 m.
- Start the ram by pressing the pulse valve a few times until it cycles by itself.
- Set the delivery head and read it on the Bourdon pressure gauge.
- Collect the useful and waste water in their separate measuring tanks and time each rise.
- Change the pulse valve setting or delivery head, repeat, and calculate the efficiency.
Key features
- 50 x 15 mm ram working from a 2.5 m supply head to a delivery head of up to 10 m
- Pulse valve with adjustable closing pressure, plus a non-return valve
- Stainless steel air vessel to even out the delivery pulses
- Separate stainless steel measuring tanks for useful and waste water
- Overhead tank fed by a 1 HP pump for a steady supply head
- Bourdon-type pressure gauge for head readings
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the hydraulic ram test setup at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Hydraulic Machine Lab products

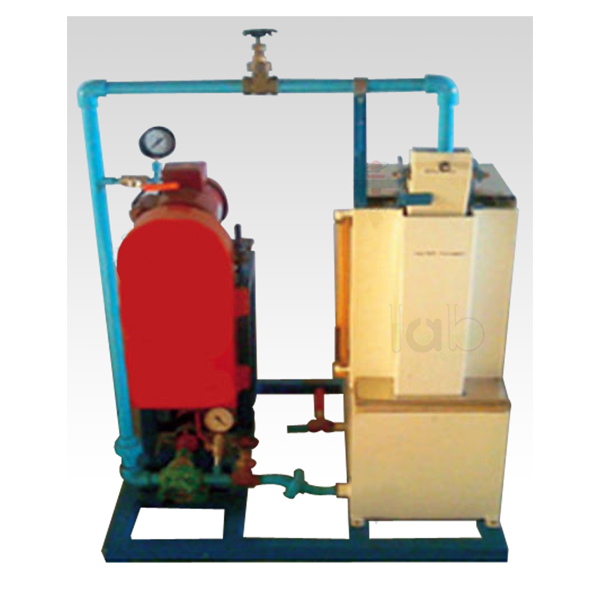

- Gear Pump Test Setup (EL-HML-11056)

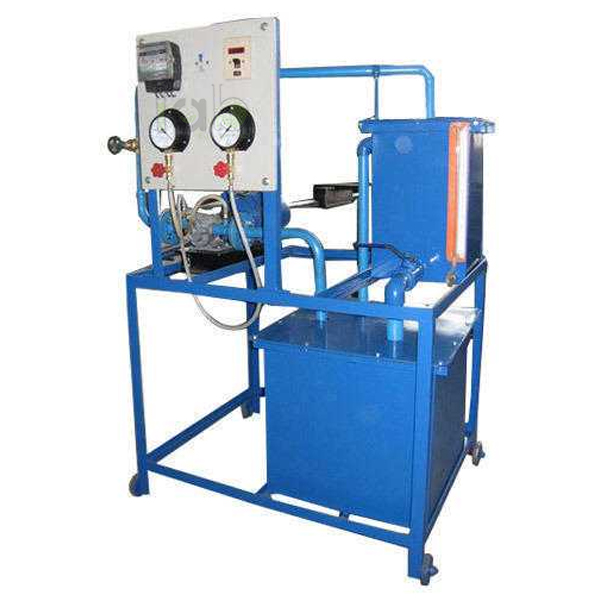

- Jet Pump Test Setup (EL-HML-11058)

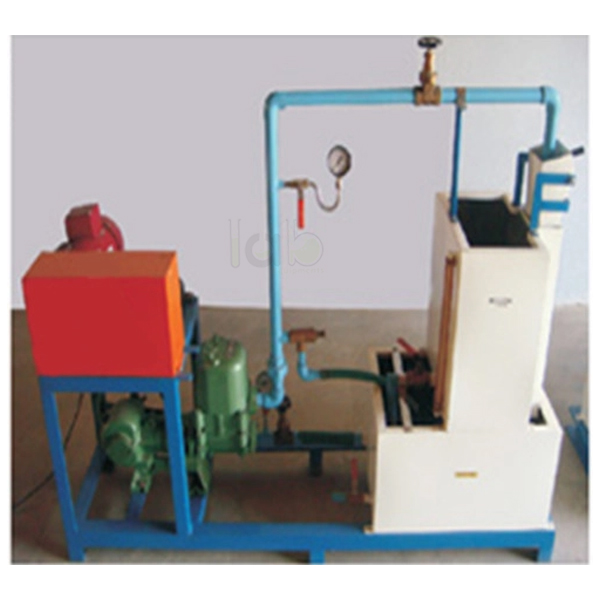

- Reciprocating Pump Test Setup (EL-HML-11055)

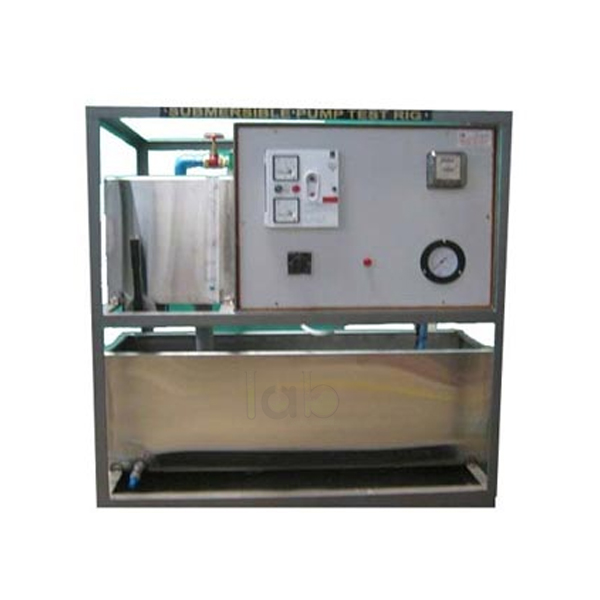

- Submersible Pump Test Rig (EL-HML-11059)
- Multi Stage Centrifugal Pump Test Setup (EL-HML-11054)

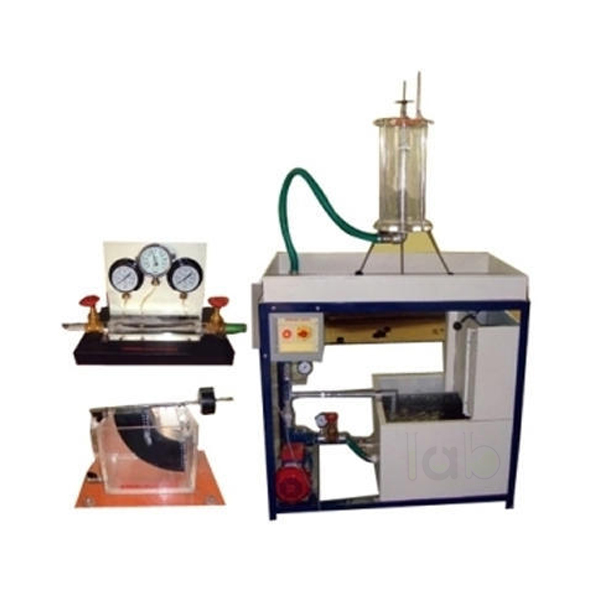

- Hydraulic Bench Apparatus (EL-HML-11060)
