Centrifuge, Clinical, Swing Out Head
Product Code : EL-C-10694
Quick answer: The clinical centrifuge with swing out head is a multi-purpose benchtop centrifuge for spinning blood, urine, cytology and chemistry samples in medical, clinical, pharmacy and biotechnology laboratories. It runs at 300 to 6000 rpm depending on the rotor, reaches 4300 x g, takes up to 4 x 100 mL, and is supplied with a swing out rotor. Lab Exports manufactures it in Delhi for hospital, clinical, research and teaching laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Speed range | 300 to 6000 rpm, depending on rotor |
| Rotor supplied | Swing out head, max 4000 rpm |
| Maximum RCF | 4300 x g |
| Maximum capacity | 4 x 100 mL |
| Speed accuracy | ± 20 rpm |
| Run time | 30 s to 99 min, or continuous |
| Program memory | 9 routine procedures |
| Acceleration / braking | 9 acceleration and 10 brake settings |
| Motor | Brushless DC, maintenance free |
| Power | 220/240 V, 50/60 Hz, 6.3 A |
| Dimensions | 445 x 579 x 269 mm |
| Weight | 36 kg |
Fixed-angle rotors are also offered for this centrifuge.
How the swing out centrifuge is used
In a swing out (horizontal) rotor the buckets hang upright at rest and swing out to horizontal as the rotor speeds up. Sediment therefore travels straight down the length of the tube and settles as a flat, even layer at the bottom, and the boundary between layers stays level. That is why swing out heads are preferred for separating serum or plasma from whole blood, for urine sediment examination and for density-gradient work, where clean, flat layers matter.
Routine clinical protocols can be stored in the 9-program memory, and the rotor is identified automatically. The 9 acceleration and 10 braking settings let the user bring delicate samples up to speed and down again gently, so separated layers are not remixed when the rotor stops.
- Load balanced tubes into opposite buckets of the swing out rotor.
- Close the lid; it locks automatically.
- Select a stored program, or set speed, time, acceleration and brake.
- Start the run and read speed and time on the LCD display.
- Open the lid after the rotor stops and remove the tubes upright.
Key features
- Swing out head rotor supplied, with fixed-angle rotors also available.
- Automatic rotor identification and memory for 9 routine procedures.
- 9 acceleration and 10 brake settings for gentle or fast runs.
- Autolocking lid with safety devices for door, imbalance, motor temperature, rotor speed and chamber temperature.
- Brushless DC motor, maintenance free, with quiet operation.
- LCD display of run settings.
Documentation and supply
Installation instructions and a manual are supplied with the centrifuge. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the clinical centrifuge with swing out head at its works in Laxmi Nagar, Delhi, and supplies it to hospital, clinical, research and teaching laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Centrifuges products

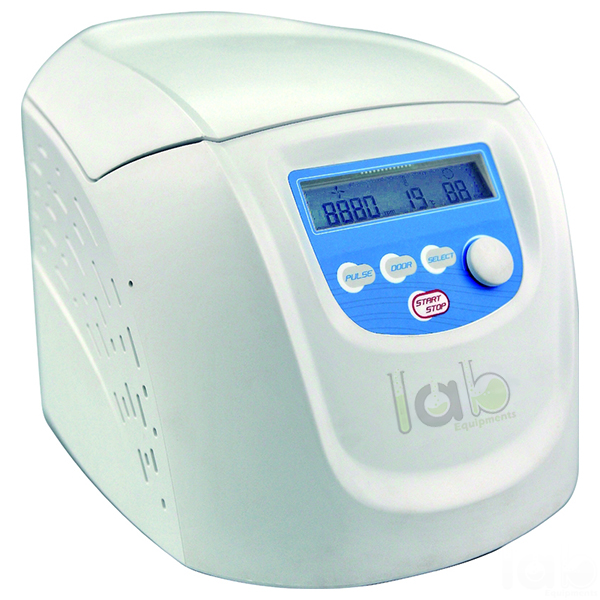

- Centrifuge, High Speed (EL-C-10693)
- Centrifuge, Clinical (EL-C-10695)

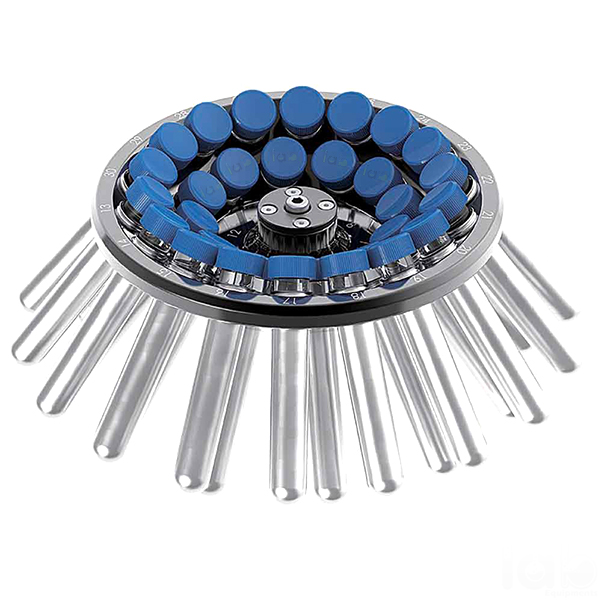

- Fixed Angle Rotor (EL-C-10692)

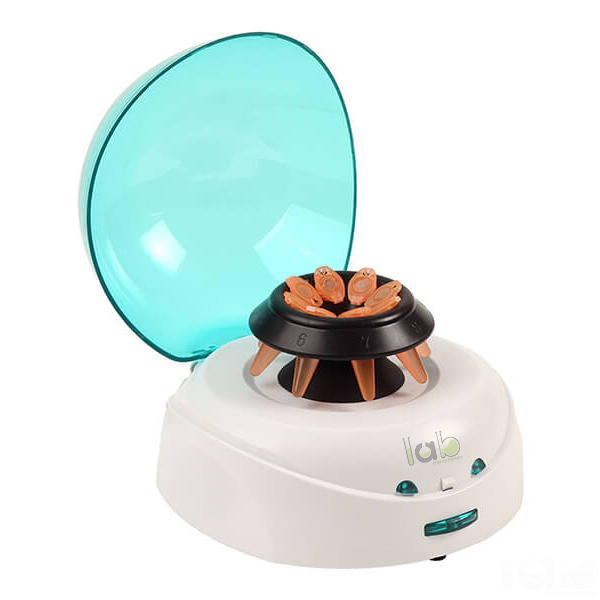

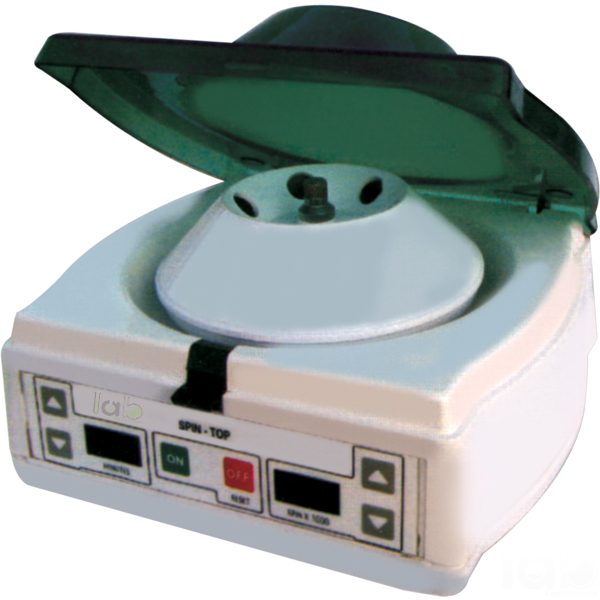

- Centrifuge, Mini (EL-C-10696)
- Hand Centrifuge (EL-C-10697)

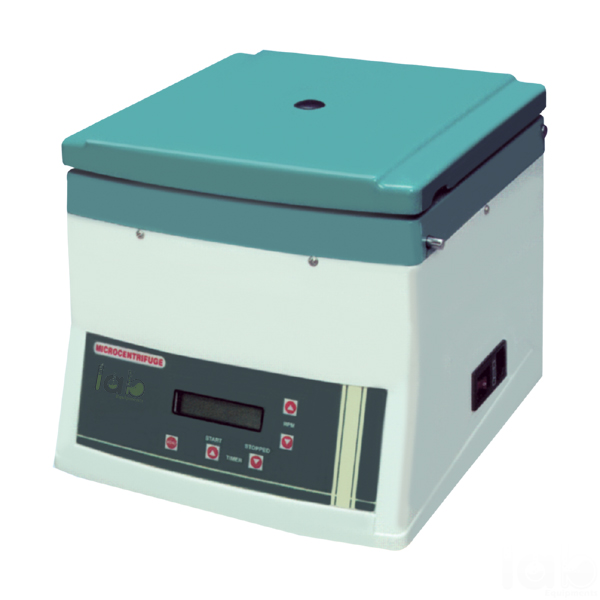

- Micro Centrifuge (EL-C-10698)
The full range is in the Centrifuges section of the Laboratory Equipment range.
Frequently asked questions
What speed does the clinical centrifuge reach?
The speed range is 300 to 6000 rpm depending on the rotor; the supplied swing out head runs up to 4000 rpm, and the maximum RCF is 4300 x g.
What is the maximum capacity?
Up to 4 x 100 mL.
What safety features does it have?
An autolocking lid and monitoring of the door, imbalance, motor temperature, rotor speed and chamber temperature.
What is the price of the clinical centrifuge with swing out head?
Prices are not published on the website. Add the clinical centrifuge with swing out head to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-C-10694 and the quantity, to receive a quotation.
Does Lab Exports manufacture the clinical centrifuge with swing out head?
Yes. Lab Exports manufactures the clinical centrifuge with swing out head at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-C-10694.
Request a quote
Email [email protected] with the house code EL-C-10694 and the quantity, or add the clinical centrifuge with swing out head to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
