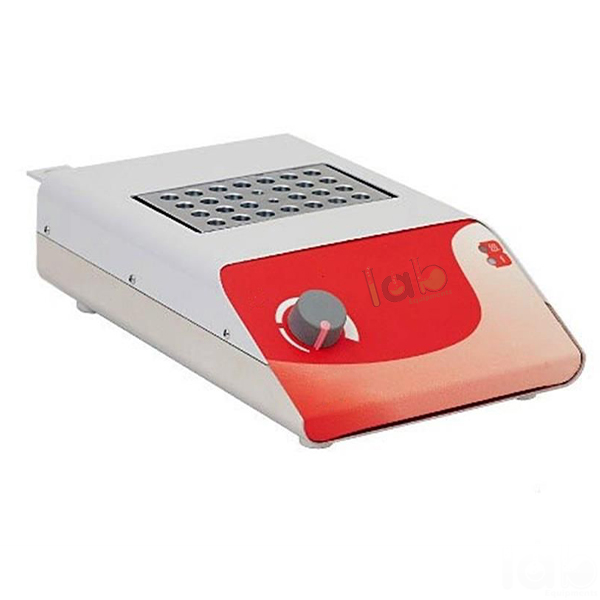

Block Heater
Product Code : EL-B-10652
Quick answer: The Block Heater is a dry heating unit that holds test tubes and microtubes in aluminium accessory blocks. It is used to incubate samples, run enzyme reactions and warm reagents steadily without a water bath or open flame. It runs from ambient +5 °C to 120 °C with ±0.5 °C uniformity at 60 °C and takes one or two blocks. Lab Exports manufactures it in Delhi for research, college and industrial laboratories.
Specifications
| Parameter | Value |
|---|---|
| Type | Dry block heater |
| Temperature range | Ambient +5 °C to 120 °C |
| Temperature setting | Analogue dial |
| Sensitivity / uniformity | ±0.5 °C at 60 °C |
| Well capacity | 1 or 2 accessory blocks |
| Heating well | 140 (W) x 50 (D) x 72 (H) mm |
| External dimensions | 200 (W) x 295 (D) x 85 (H) mm |
| Power | 220-240 V, 50-60 Hz, 250 W |
| Packed weight | 4.0 kg |
How the block heater is used
A dry block heater replaces the water bath for small-volume work. The heater warms an aluminium block drilled to fit a particular tube size; because aluminium conducts heat well and each tube sits in close contact with the metal, the tubes in the block reach the set temperature evenly. There is no water to top up, spill or contaminate the samples, and no open flame near solvents.
Typical uses are incubating microtubes for enzyme digests and molecular biology steps, holding culture tubes at a steady temperature, warming reagents before an assay and gently heating reaction tubes in chemistry practicals. The well takes either one large block or two smaller ones, so two tube sizes can be run side by side.
- Fit the accessory block for the tube size in use, or two smaller blocks side by side.
- Set the required temperature on the analogue dial and allow the block to reach it.
- Place the tubes in the block wells.
- After use, let the block cool and lift it out with the block extraction tool.
Key features
- Dry heating from ambient +5 °C to 120 °C, with no water bath
- ±0.5 °C sensitivity and uniformity at 60 °C
- Analogue dial temperature setting
- Takes one block, or two blocks for different tube sizes
- Compact 200 x 295 x 85 mm body, 250 W
Accessory blocks and tools
- Single-block format: blocks for 10, 12, 13, 16, 19 and 25 mm diameter tubes
- Single-block format: block for 50 ml tubes
- Two-block format: blocks for 0.2, 0.5, 1.5 and 2.0 ml microtubes
- Block extraction tool (supplied with the heater)
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the block heater at its works in Laxmi Nagar, Delhi, and supplies it to research, college and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Burners products
- Electric Burner (EL-B-10653)
- Burner Tube (EL-B-10654)
- Flame Spreader (EL-B-10655)
- Economy Burner Meker (EL-B-10656)
- Meker Burner Heavy Base (EL-B-10657)
- Bunsen Burner Pilot Flame (EL-B-10658)
The full range is in the Burners section of the Laboratory Equipment range.
Frequently asked questions
What temperature range does the block heater cover?
It heats from ambient +5 °C up to 120 °C, set on an analogue dial.
Which tube sizes can the block heater take?
With a single block it takes 10, 12, 13, 16, 19 and 25 mm diameter tubes or 50 ml tubes; with two blocks fitted it takes 0.2, 0.5, 1.5 and 2.0 ml tubes.
What power supply does the block heater need?
It runs on 220-240 V, 50-60 Hz and is rated at 250 W.
What is the price of the block heater?
Prices are not published on the website. Add the block heater to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10652 and the quantity, to receive a quotation.
Does Lab Exports manufacture the block heater?
Yes. Lab Exports manufactures the block heater at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10652.
