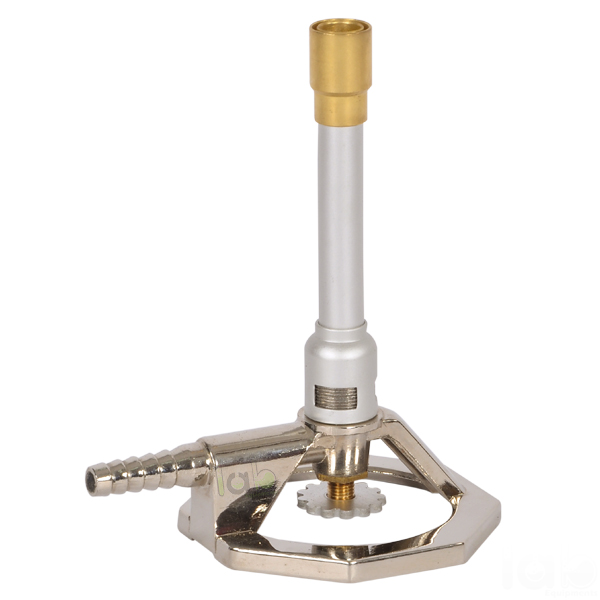

Burner Tirrill
Product Code : EL-B-10663
Quick answer: The Tirrill burner is a laboratory gas burner in which gas and air are regulated separately: a brass needle valve sets the gas and adjustable air ports set the air. This independent control gives a hotter, better-shaped flame than a basic Bunsen burner, reaching up to 1550 deg C, for general heating and ignition work. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Tirrill burner |
| Gas control | Brass needle valve |
| Air control | Adjustable air ports |
| Maximum flame temperature | Up to 1550 °C |
How the Tirrill burner is used
On a simple Bunsen burner the gas flow is set only at the bench tap, and the air collar has to be readjusted every time the gas changes. The Tirrill pattern adds a needle valve in the base, so the gas supply can be set on the burner itself, while the air ports control how much air is drawn into the barrel. With both adjusted together, the mixture can be brought close to the point of complete combustion, which gives a hotter non-luminous flame with a well-defined inner cone.
In teaching laboratories it is used to demonstrate the difference between a luminous (yellow, sooty) flame and a non-luminous (blue) flame, to heat crucibles and evaporating basins, and for flame tests and ignition of residues where a steady high temperature is needed.
- Connect the burner to the gas tap and close the air ports.
- Open the bench tap and then the brass needle valve slightly; light the gas above the barrel.
- Open the air ports until the yellow flame becomes blue with a sharp inner cone.
- Balance the needle valve and air ports to set the height and heat of the flame.
- After use, close the bench gas tap and the needle valve.
Key features
- Brass needle valve for fine adjustment of the gas supply at the burner.
- Adjustable air ports give independent control of the air supply.
- Combined gas and air adjustment produces a hotter flame than a plain Bunsen burner.
- Flame temperature up to 1550 °C for crucible and ignition work.
- Clear demonstration of luminous and non-luminous flames for teaching.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Tirrill burner at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Burners products
- Micro Bunsen Burner (EL-B-10662)
- Burner with Flame Stabilizer (EL-B-10664)
- High Temperature Burner (EL-B-10661)
- Adjustable Bunsen Burner (EL-B-10665)
- Meker Burner (EL-B-10660)
- Natural Gas Burner (EL-B-10666)
The full range is in the Burners section of the Laboratory Equipment range.
Frequently asked questions
What is the maximum temperature of the Tirrill burner?
The flame reaches up to 1550 °C when gas and air are correctly balanced.
How is a Tirrill burner different from a Bunsen burner?
It has its own brass needle valve for the gas as well as adjustable air ports, so gas and air are set independently on the burner to give a hotter, steadier flame.
What is the price of the Tirrill burner?
Prices are not published on the website. Add the Tirrill burner to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10663 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Tirrill burner?
Yes. Lab Exports manufactures the Tirrill burner at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10663.
