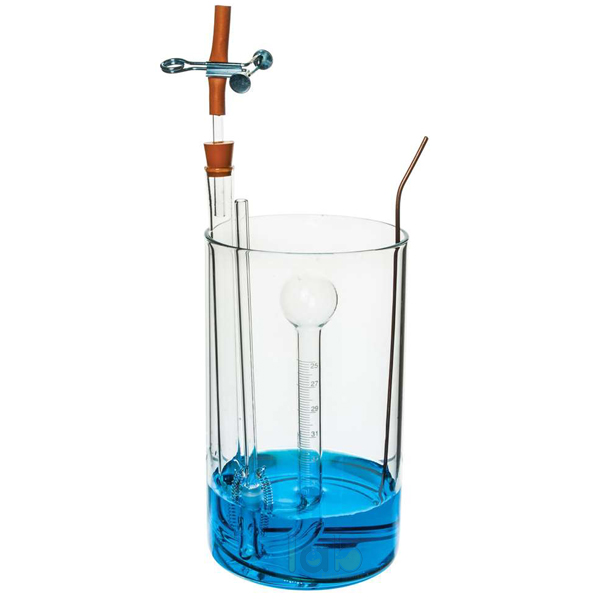

Charles Law Apparatus, Basic
Product Code : EL-POM-10374
Quick answer: The Charles law apparatus, basic, is used to show that the volume of a fixed mass of air grows in step with its temperature when the pressure is kept constant. Air trapped in a U-tube limb graduated 25-35 ml in 0.2 ml steps is warmed in a 1000 ml tall-form beaker with stirrer. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Part | Specification |
|---|---|
| U-tube | Glass, approx. 15 mm diameter |
| Plain limb | 220 mm long, with rubber bung and glass tubing fitted with rubber tubing and two pinch clips |
| Graduated limb | 120 mm long, graduated 25-35 ml x 0.2 ml, ending in a 37 mm bulb |
| Side limb | Approx. 185 mm long x 6 mm bore, at right angles |
| Water bath | 1000 ml tall-form beaker with stirrer |
How the Charles law experiment is done
Charles's law states that at constant pressure the volume of a fixed mass of gas is proportional to its absolute temperature, V/T = constant. In this apparatus the air sealed in the bulb and graduated limb is the gas sample, the liquid in the U-tube acts as its movable boundary, and the water in the beaker sets its temperature.
- Stand the U-tube in the 1000 ml tall-form beaker and fill the beaker with water so that the bulb and graduated limb are covered.
- Note the starting volume of trapped air on the 25-35 ml scale and the water temperature from a thermometer.
- Warm the water in steps, stirring well so the bath is even.
- At each temperature, adjust the liquid so that its levels in the two limbs are equal, keeping the trapped air at atmospheric pressure, then read the volume.
- Plot volume against temperature in degrees Celsius.
The volume rises by nearly the same amount for each degree of warming. Extending the straight-line graph back to zero volume gives a temperature near -273 deg C, which introduces absolute zero and the Kelvin scale. The fine 0.2 ml divisions on the graduated limb make these small changes easy to read.
Key features
- U-shaped glass tube of about 15 mm diameter
- Graduated limb reading 25-35 ml in 0.2 ml divisions, ending in a 37 mm bulb that holds the air sample
- Plain limb, 220 mm long, with rubber bung, glass tubing and two pinch clips
- Side limb about 185 mm long and 6 mm bore, set at right angles
- 1000 ml tall-form beaker and stirrer for an even water bath
- Simpler set-up than the combined apparatus, with no mercury reservoir
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Charles law apparatus at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
