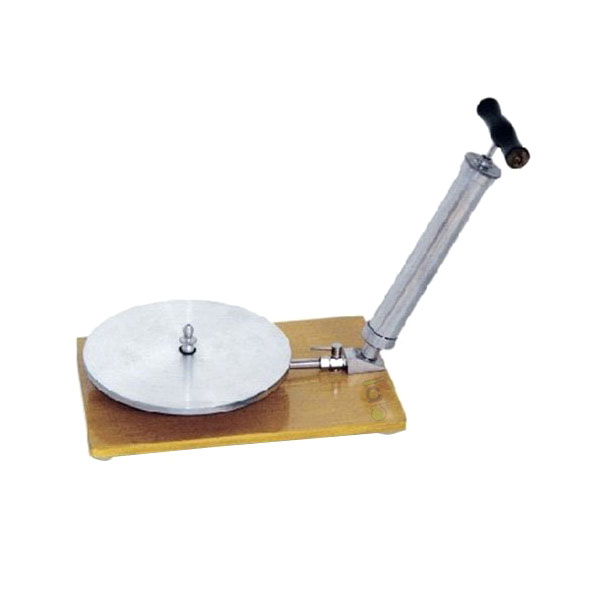

Air Pump (Vacuum Pump with Aluminium Plate)

Product Code : EL-POM-10363

Specifications

How the air pump is used

A bell jar or other receiver is seated on the aluminium plate, or a separate vessel is joined to the plate through rubber pressure tubing, and the pump is then worked to draw the air out. As air is removed, the pressure inside the vessel falls below atmospheric pressure. That reduced pressure is the starting point for most school experiments on air pressure and on how sound travels through a medium.

The stopcock air inlet screw on the plate controls the vacuum. Kept closed, it holds the reduced pressure while an observation is made; opened slowly, it lets air back in so the receiver can be lifted off without a sudden rush of air.

1. Stand the pump on the bench on its wooden base and check that the stopcock air inlet screw is closed.
2. Seat the bell jar on the aluminium plate, or connect the vessel to the tubing connection with rubber pressure tubing.
3. Work the pump steadily to draw air out of the vessel.
4. Make the observation while the reduced pressure is held, then open the air inlet screw to let air back in.

The same pump serves several apparatus in the Properties of Matter range, such as the bell experiment apparatus for sound in a vacuum and Magdeburg hemispheres for atmospheric pressure.

Key features

• Single barrel made from steel pipe
• Wooden base that keeps the pump steady on the bench while it is worked
• Aluminium plate with a stopcock air inlet screw for holding or releasing the vacuum
• Connection for rubber pressure tubing, so vessels can also be evacuated away from the plate
• Offered in two sizes, 12.5 cm and 15.0 cm

Documentation and supply

Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.

Lab Exports manufactures the air pump at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.

Related Properties of Matter products

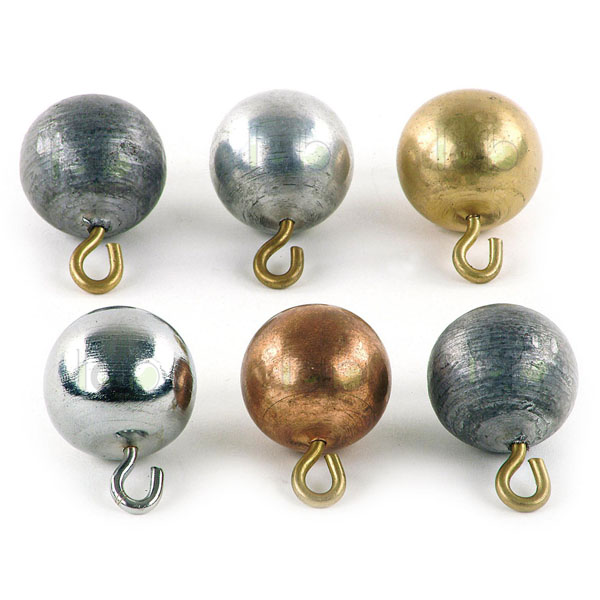

• Pendulum Bobs or Spheres (EL-POM-10362)
• Bell Experiment Apparatus (EL-POM-10364)
• Metal Cubes (EL-POM-10361)
• Portable Diaphragm Type Vacuum Pump cum Air Compressor, Oil Free, Light Weight (EL-POM-10365)
• Metal Cylinder (EL-POM-10360)
• Magdeburg Hemispheres (EL-POM-10366)

The full range is in the Properties of Matter section of the Physics Lab range.

Frequently asked questions

What experiments is the air pump with aluminium plate used for?

It is used for classroom vacuum demonstrations, such as the bell experiment that shows sound cannot travel through a vacuum, and for evacuating Magdeburg hemispheres to show atmospheric pressure.

What sizes are available?

The pump is offered in 12.5 cm and 15.0 cm sizes.

What is the stopcock on the plate for?

The stopcock air inlet screw lets air back into the evacuated vessel in a controlled way, while the tubing connection takes rubber pressure tubing to other apparatus.

What is the price of the air pump?

Prices are not published on the website. Add the air pump to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-POM-10363 and the quantity, to receive a quotation.

Does Lab Exports manufacture the air pump?

Yes. Lab Exports manufactures the air pump at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-POM-10363.
