Boyles Law Apparatus, Advanced with Oil

Product Code : EL-POM-10375

Specifications

How the Boyle's law experiment is done

Boyle's law states that for a fixed mass of gas at constant temperature, pressure and volume are inversely proportional: p x V = constant. In this apparatus the gas is the column of air trapped above the oil in the closed glass tube. Pumping air into the oil chamber pushes oil up the tube, so the trapped air is squeezed into a smaller volume while the Bourdon gauge shows the rising pressure.

1. Connect an air compression pump to the valve on the oil chamber and check that the O-ring joint is seated.
2. Read the starting volume of trapped air on the 0-65 cm³ scale and the pressure on the Bourdon gauge.
3. Pump air in a little at a time, then wait a minute for the oil level and the air temperature to settle.
4. Record each pair of pressure and volume readings.
5. Release the pressure slowly through the valve and take a second set of readings as the air expands.

A graph of pressure against 1/volume gives a straight line through the origin, and the product p x V stays nearly constant across the readings. Waiting after each change lets the heat produced by compression escape, so the process stays close to isothermal.

Key features

• Bourdon gauge graduated 0 to 3.4 x 10^5 N/m² for direct pressure readings
• Thick-walled, wide-bore glass tube that gives a large safety margin under pressure
• Volume scale from 0 to 65 cm³, read against the oil level
• O-ring sealed joint that keeps the system leak-proof
• Valve on the oil chamber for connecting an air compression pump

Documentation and supply

Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.

Lab Exports manufactures the Boyle's law apparatus with oil at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.

Related Properties of Matter products

• Charles Law Apparatus, Basic (EL-POM-10374)
• Bourdon Gauge (EL-POM-10376)

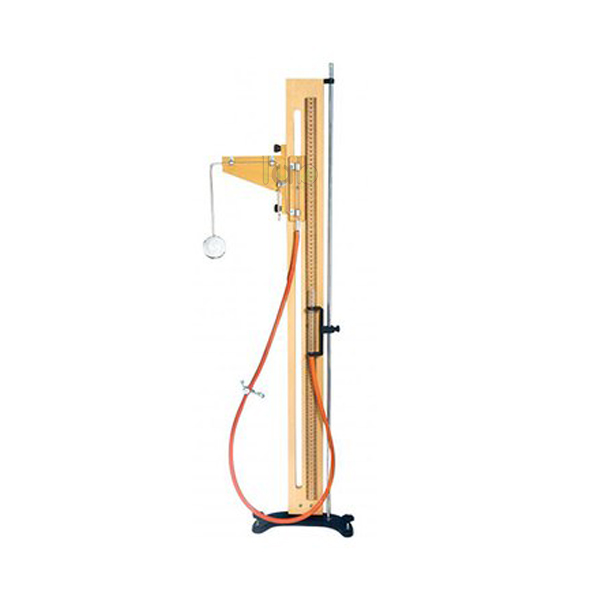

• Charles Law Apparatus (Combined) (EL-POM-10373)
• Lift Pump (EL-POM-10377)

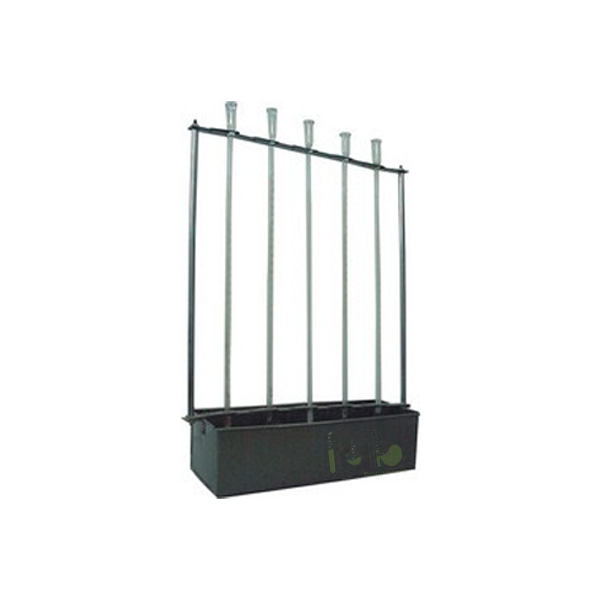

• Expansion of Liquid Apparatus (EL-POM-10372)

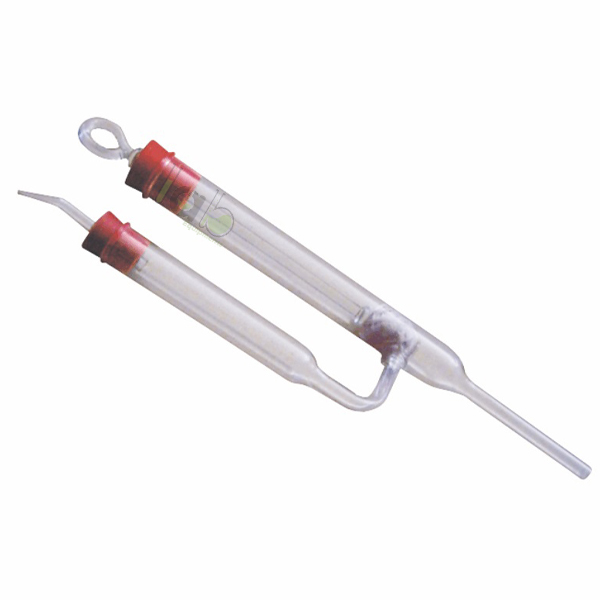

• Force Pump (EL-POM-10378)

The full range is in the Properties of Matter section of the Physics Lab range.

Frequently asked questions

What range does the pressure gauge cover?

The Bourdon gauge is graduated from 0 to 3.4 x 10^5 N/m² (0 to 340 kPa).

How is the air compressed?

An air compression pump is connected through the valve on the oil chamber; the air it pumps in drives oil up the glass tube and compresses the trapped air.

Why is oil used instead of mercury?

Oil transmits the pressure to the trapped air and shows a clear level against the volume scale, without the handling hazards of mercury.

What is the price of the Boyle's law apparatus with oil?

Prices are not published on the website. Add the Boyle's law apparatus with oil to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-POM-10375 and the quantity, to receive a quotation.

Does Lab Exports manufacture the Boyle's law apparatus with oil?

Yes. Lab Exports manufactures the Boyle's law apparatus with oil at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-POM-10375.
