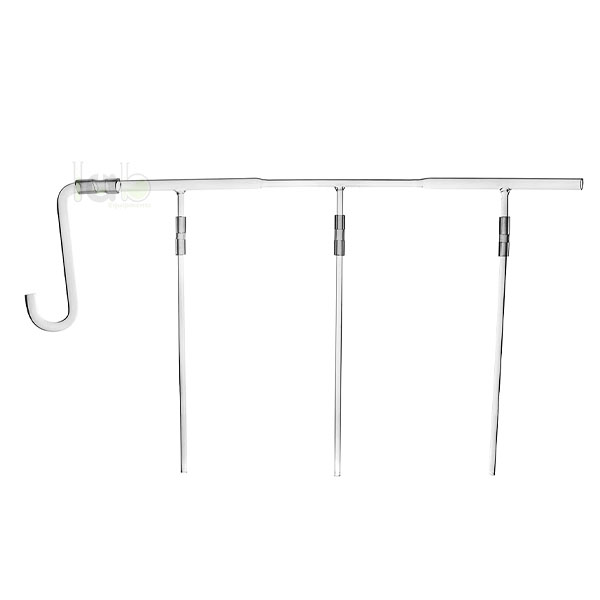

Bernoulli Tube Apparatus
Product Code : EL-POM-10369
Quick answer: The Bernoulli tube apparatus is used to verify Bernoulli's theorem by showing how the pressure of flowing water falls where the tube narrows and the speed rises. It has two 500 x 13 mm flow tubes, a narrowed Bernoulli tube and a constant-bore gradient tube, each with three side tubes read as manometers. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Component | Specification |
|---|---|
| Flow tubes | Two, each 500 mm long x 13 mm OD |
| Side tubes | Three on each flow tube, sealed in, 25 mm long, about 150 mm apart, used as manometers |
| Principle shown | Bernoulli's theorem: pressure against flow speed as the bore changes |
How the Bernoulli theorem experiment is done
Bernoulli's theorem states that along a streamline of steady, incompressible flow the sum p + (1/2) rho v^2 + rho g h stays constant. In a horizontal tube the height term does not change, so wherever the water speeds up its pressure must fall. By continuity, A1 v1 = A2 v2, the water has to move faster through the narrowed centre of the Bernoulli tube, and the manometer there shows a lower water column than those before and after it.
The constant-bore gradient tube is the comparison. With the same bore along its length the speed is the same everywhere, and the three manometer levels fall steadily from inlet to outlet only because of friction losses. Running the two tubes one after the other separates the Bernoulli effect from ordinary pressure loss along a pipe.
- Fit a length of glass tubing to each side tube with the rubber connectors so that each forms a vertical manometer.
- Connect the inlet of the flow tube to a steady water supply at constant head and fit a swan-necked outlet at the far end.
- Let water run until the flow is steady and no air bubbles remain.
- Read the water level in the three manometer tubes and note the drop at the narrowed section.
- Repeat with the constant-bore gradient tube and compare the two sets of readings.
Key features
- Two flow tubes of the same 500 x 13 mm OD size for a fair comparison
- Narrowed central portion on the Bernoulli tube to show the fall in pressure at higher speed
- Constant-bore gradient tube as a control for friction loss
- Sealed-in side tubes, about 150 mm apart, for three pressure readings along each tube
- Swan-necked outlets and rubber connectors for quick assembly on the bench
What is included
- Bernoulli tube with narrowed central portion
- Constant-bore gradient tube
- 6 lengths of glass tubing
- 2 swan-necked outlets
- 8 rubber connectors
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Bernoulli tube apparatus at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
