Hare Apparatus
Product Code : EL-POM-10357
Quick answer: Hare's apparatus compares the densities of two liquids. Suction applied at the short limb of a three-limbed tube draws the liquids up from two beakers, and their column heights are read on a 45 cm scale; the heights are inversely proportional to the densities. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Attribute | Detail |
|---|---|
| Construction | Three-limbed tube on a polished stand |
| Scale | 45 cm, zero at the bottom, cm and mm divisions |
| Supplied | Without rubber tube and pinch cock |
| Spares | Spare tubes available on demand |
How the Hare's apparatus experiment is done
When air is drawn out through the short limb, the pressure above both liquid columns falls by the same amount, so both liquids rise until the pressure of each column balances that difference. The column pressures are then equal: h1 x rho1 x g = h2 x rho2 x g. The relative density of one liquid with respect to the other is therefore rho1 / rho2 = h2 / h1.
- Fit a rubber tube and pinch cock to the short limb.
- Dip the two long limbs into beakers holding water and the test liquid.
- Suck gently through the rubber tube and close the pinch cock when the columns are well up the scale.
- Read the height of each column above the liquid surface in its beaker.
- Release and repeat at different heights; the ratio h2 / h1 should stay the same.
With water as one of the liquids, the ratio gives the relative density of the other directly. Because only column heights are measured, no balance is needed.
Key features
- Three-limbed tube draws up two liquid columns at once.
- 45 cm scale with zero at the bottom, graduated in cm and mm.
- Mounted on a polished stand for steady readings.
- Compares the relative densities of two liquids without weighing.
- Spare tubes are available on demand.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Hare's apparatus at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Properties of Matter products
- Nicholson Hydrometer (EL-POM-10356)
- U-Tube Manometer on Stand, Wall Hanging Type (EL-POM-10358)
- Overflow Vessel (Eureka Can) Plastic (EL-POM-10355)
- U-Tube Manometer on Stand Table Model (EL-POM-10359)
- Overflow Vessel (Eureka Can) (EL-POM-10354)

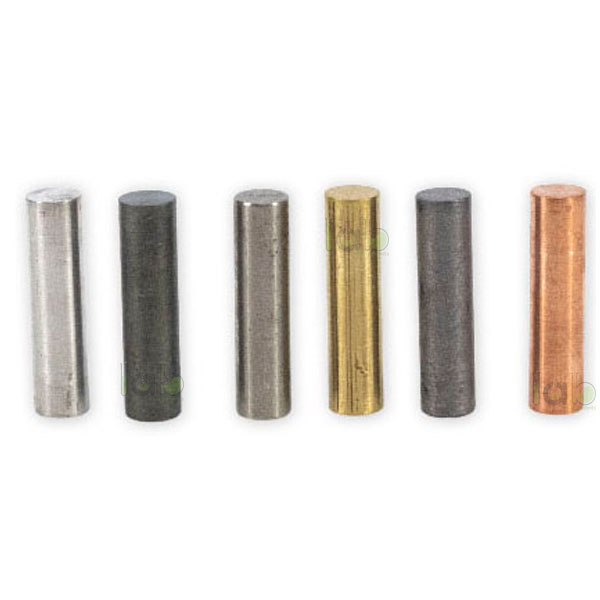

- Metal Cylinder (EL-POM-10360)
The full range is in the Properties of Matter section of the Physics Lab range.
Frequently asked questions
What does Hare's apparatus measure?
The relative density of two liquids, found from the ratio of the heights of the two columns drawn up by suction.
Is the rubber tube included with Hare's apparatus?
No. It is supplied without the rubber tube and pinch cock, which are needed to apply and hold the suction.
What is the price of the Hare's apparatus?
Prices are not published on the website. Add the Hare's apparatus to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-POM-10357 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Hare's apparatus?
Yes. Lab Exports manufactures the Hare's apparatus at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-POM-10357.
Request a quote
Email [email protected] with the house code EL-POM-10357 and the quantity, or add the Hare's apparatus to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
