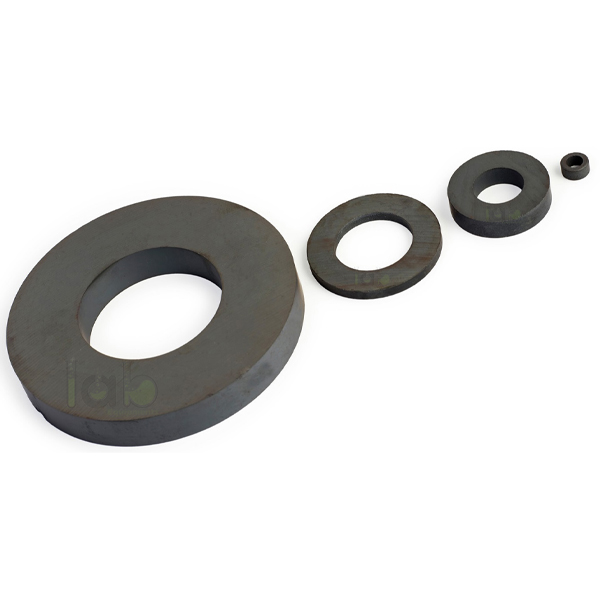

Ferrite Rings
Product Code : EL-M-10306
Quick answer: Ferrite rings are ceramic ring magnets with high coercivity and low cost, offered in five diameter x thickness sizes from 18 x 6 mm to 36 x 8 mm. The open centre lets them slide onto a rod, so they are used for floating-magnet repulsion demonstrations as well as attraction and pole tests. Lab Exports manufactures them in Delhi for schools, colleges and universities.
Specifications
| Attribute | Detail |
|---|---|
| Material | Ferrite (ceramic magnet) |
| Properties | High coercivity; hard and brittle |
| Shape | Ring with open centre |
| Sizes (diameter x thickness) | 18 x 6, 25 x 5, 30 x 5, 32 x 8 and 36 x 8 mm |
Bore diameter and quantity per pack are confirmed with the quotation.
How ferrite rings are used

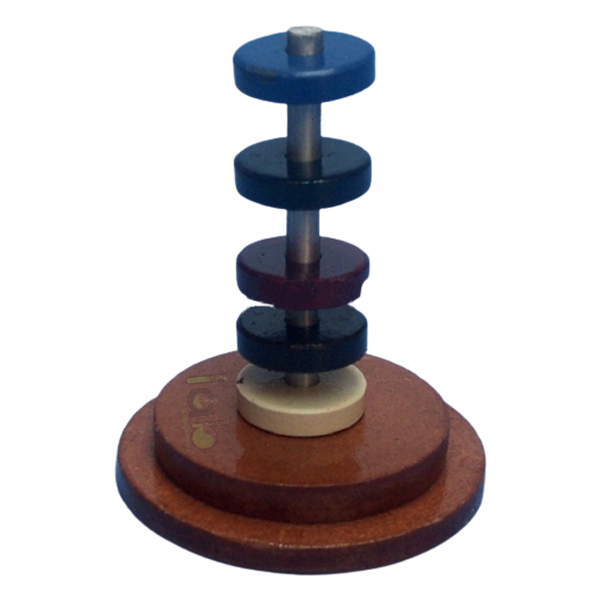

For the floating-ring demonstration the rings are magnetised through their thickness, so one flat face is a north pole and the other a south pole. Slide two rings onto a vertical rod with like faces together and the upper ring floats above the lower one, held up by magnetic repulsion against gravity.
- Stand a non-magnetic rod, such as wood or plastic, upright in a base.
- Slide the first ring onto the rod, then add a second ring with the same face downwards so that like poles face each other.
- Watch the upper ring float; add more rings and note how the gaps change down the stack.
- Press the top ring down gently and release it to show the springy repulsive force.
The gaps are smallest at the bottom because each lower ring must support the weight of all the rings above it, a neat way to link magnetic force with weight.
Key features
- Open centre allows rings to be stacked on a rod for levitation demonstrations.
- High coercivity keeps strength through repeated repulsion experiments.
- Five sizes from 18 to 36 mm diameter.
- Low cost suits bulk classroom sets.
- Ceramic material does not rust; handle with care as it is brittle.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the ferrite ring magnets at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Magnetism products

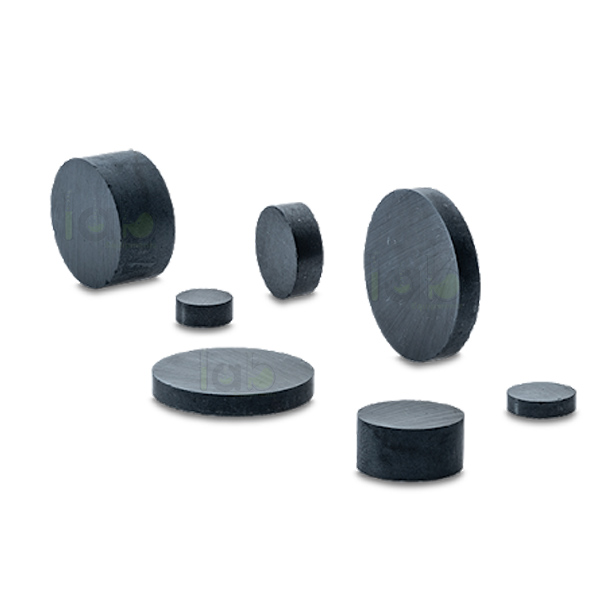

- Ferrite Discs (EL-M-10305)

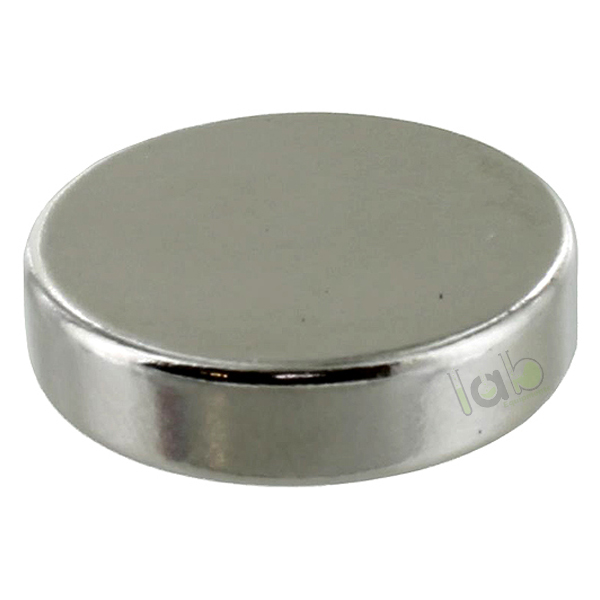

- Neodymium Discs (EL-M-10307)

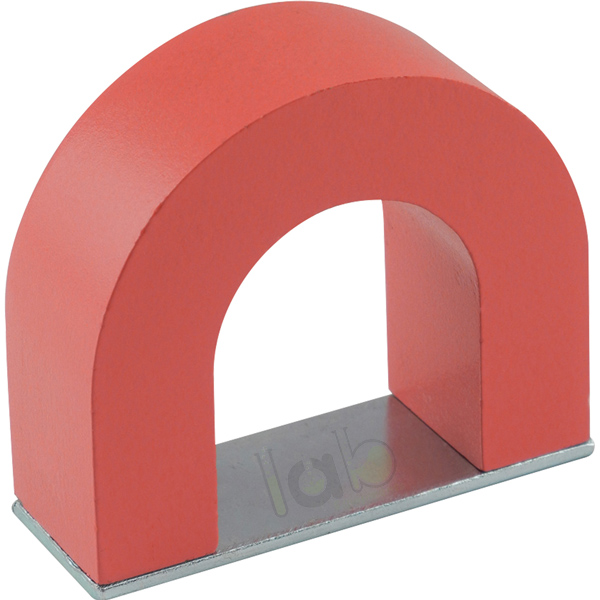

- Alnico U-Shaped Magnet (EL-M-10304)
- Neodymium Cylinder (EL-M-10308)
- U-Shaped Magnet, Chrome Steel (EL-M-10303)

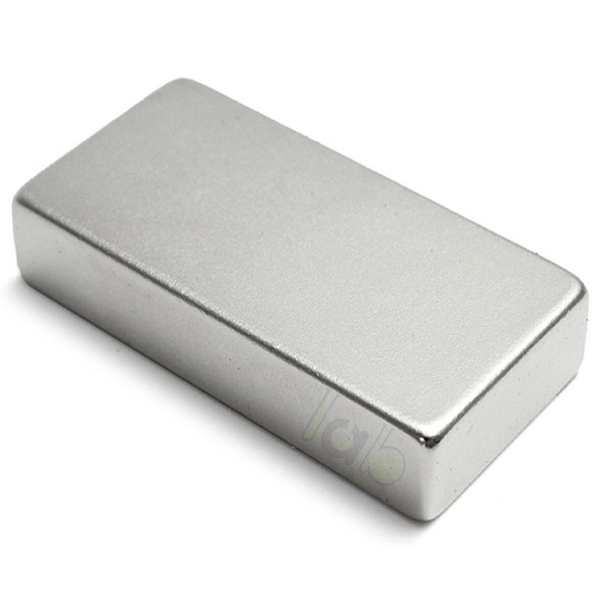

- Neodymium Block (EL-M-10309)
The full range is in the Magnetism section of the Physics Lab range.
Frequently asked questions
What experiments are ferrite rings used for?
Mainly the floating-ring demonstration, where rings on a rod repel each other, plus attraction, repulsion and pole-identification activities.
What sizes of ferrite ring are available?
Five diameter x thickness sizes: 18 x 6, 25 x 5, 30 x 5, 32 x 8 and 36 x 8 mm.
What is the price of the ferrite ring magnets?
Prices are not published on the website. Add the ferrite ring magnets to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-M-10306 and the quantity, to receive a quotation.
Does Lab Exports manufacture the ferrite ring magnets?
Yes. Lab Exports manufactures the ferrite ring magnets at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-M-10306.
