Neodymium Discs
Product Code : EL-M-10307
Quick answer: Neodymium discs are rare-earth magnets that give a very strong pull for their small size and resist demagnetisation. They have a polish-coated surface and come in seven sizes from 5 x 2 mm to 24 x 10 mm, for field-strength comparisons, induction and advanced magnetism demonstrations. Lab Exports manufactures them in Delhi for schools, colleges and universities.
Specifications
| Attribute | Detail |
|---|---|
| Material | Neodymium (NdFeB rare-earth magnet) |
| Properties | High strength for small size; high resistance to demagnetisation |
| Finish | Polish coated |
| Shape | Disc |
| Sizes (diameter x thickness) | 5 x 2, 6 x 3, 10 x 2, 12 x 3, 20 x 3, 24 x 3 and 24 x 10 mm |
How neodymium discs are used
Neodymium-iron-boron magnets are the strongest permanent magnets in general use, so even a 10 mm disc can out-pull a much larger ferrite or steel magnet. This makes them ideal where space is tight or a strong field is needed: dropping a disc through a copper or aluminium tube to show eddy-current braking, building a homopolar motor from a cell and a wire, or comparing the pull of different magnet materials.
Handle them with care. Strong discs snap together hard enough to pinch skin and can chip the coating; separate them by sliding, keep them away from young children, pacemakers, magnetic cards and electronic storage, and store them with spacers.
Key features
- Very high magnetic force from a compact disc.
- High resistance to demagnetisation through repeated use.
- Polish-coated surface protects the magnet material.
- Seven sizes, from 5 x 2 mm to 24 x 10 mm.
- Suited to eddy-current, homopolar motor and field-strength comparison experiments.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the neodymium disc magnets at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Magnetism products
- Ferrite Rings (EL-M-10306)
- Neodymium Cylinder (EL-M-10308)
- Ferrite Discs (EL-M-10305)
- Neodymium Block (EL-M-10309)

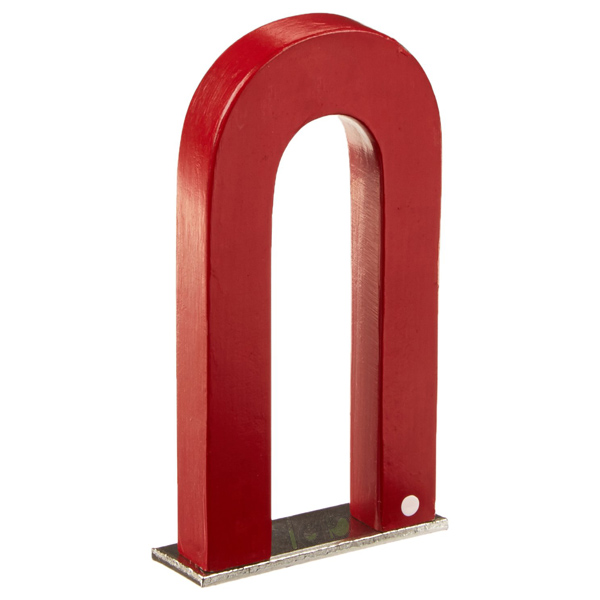

- Alnico U-Shaped Magnet (EL-M-10304)
- Magnadur Magnets (Rectangular Magnet) (EL-M-10310)
The full range is in the Magnetism section of the Physics Lab range.
Frequently asked questions
What sizes of neodymium disc magnet are available?
Seven diameter x thickness sizes: 5 x 2, 6 x 3, 10 x 2, 12 x 3, 20 x 3, 24 x 3 and 24 x 10 mm.
Are neodymium magnets safe for classroom use?
Yes, with supervision: they are strong enough to pinch fingers, must be kept away from pacemakers and small children, and should be slid apart rather than pulled.
What is the price of the neodymium disc magnets?
Prices are not published on the website. Add the neodymium disc magnets to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-M-10307 and the quantity, to receive a quotation.
Does Lab Exports manufacture the neodymium disc magnets?
Yes. Lab Exports manufactures the neodymium disc magnets at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-M-10307.
