Fleming’s Right Hand Rule
Product Code : SCL-M-11199
Quick answer: The Fleming's right hand rule apparatus demonstrates electromagnetic induction: a copper conductor is moved through the gap of a permanent U-shaped magnet, and a centre-zero indicator shows the size and direction of the induced current. Students check each result with the right-hand rule used for generators. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Part | Specification |
|---|---|
| Function | Electromagnetic induction; direction of induced current |
| Base | Non-conductive polymer panel |
| Magnet | Permanent U-shaped magnet assembly |
| Conductor | Movable low-resistance copper armature on guides |
| Indicator | Centre-zero moving pointer |
| Terminals | 4 mm insulated brass binding posts |
Dimensions and weight are confirmed with the quotation.
How the Fleming's right hand rule experiment is done
When a conductor moves through a magnetic field it cuts field lines and an e.m.f. is induced across it. By Faraday's law the e.m.f. equals the rate of change of flux linkage, e = -dPhi/dt, which for a straight conductor becomes e = BLv. Fleming's right-hand rule gives the current direction: with the thumb, forefinger and middle finger of the right hand at right angles, the thumb shows the motion, the forefinger the field (north to south) and the middle finger the induced current.
- Place the apparatus on a bench and check that the indicator rests at the centre zero.
- Move the copper conductor steadily through the magnet gap in one direction and note which way the pointer deflects.
- Move it back the other way and observe the reversed deflection.
- Move the conductor faster and slower to show that the deflection grows with speed, then hold it still to show that no current flows without motion.
- Predict each direction with the right-hand rule before moving the conductor, then confirm it on the indicator.
Key features
- Centre-zero indicator shows both the direction and the size of the induced current.
- Permanent U-shaped magnet provides the field across the conductor path.
- Guided copper conductor moves smoothly through the magnet gap.
- Non-conductive polymer base panel.
- 4 mm binding posts allow an external meter or resistance to be connected.
- Printed direction layout helps students line up thumb, forefinger and middle finger.
What is included
- Apparatus base panel with indicator
- U-shaped permanent magnet (field block)
- Movable copper conductor armature
- 2 insulated connecting leads with 4 mm plugs
- Teacher's instruction manual with sample data sheets
Documentation and supply
A teacher's instruction manual with sample data sheets is supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Fleming's right hand rule apparatus at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Magnetism products
- Fleming's Left Hand Rule (SCL-M-11198)
- Demountable Transformer (SCL-M-11210)
- Electric Motor Model (SCL-M-11214)
- Electromagnet (SCL-M-11183)
- Electromagnet "U" Shape (SCL-M-11228)

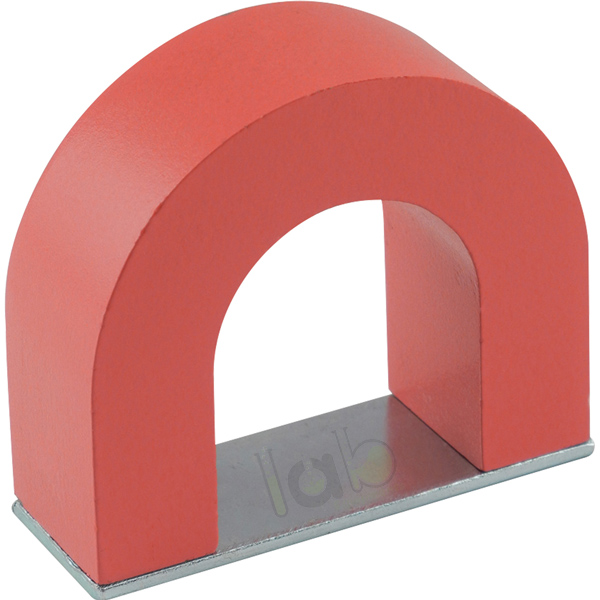

- Horseshoe Magnet (SCL-M-11245)
The full range is in the Magnetism section of the Physics Lab range.
Frequently asked questions
What does Fleming's right hand rule apparatus demonstrate?
Electromagnetic induction: moving a conductor through a magnetic field induces a current whose direction follows Fleming's right-hand rule.
Why does the pointer reverse when the conductor moves back?
Reversing the motion reverses the direction in which the field lines are cut, so the induced e.m.f. and current reverse too.
What is the price of the Fleming's right hand rule apparatus?
Prices are not published on the website. Add the Fleming's right hand rule apparatus to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-M-11199 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Fleming's right hand rule apparatus?
Yes. Lab Exports manufactures the Fleming's right hand rule apparatus at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-M-11199.
Request a quote
Email [email protected] with the house code SCL-M-11199 and the quantity, or add the Fleming's right hand rule apparatus to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
