Galvanometer EDSPOT
Product Code : EL-LM-10390
Quick answer: The Galvanometer EDSPOT is a taut-suspension spot reflecting galvanometer that shows deflection as a hairline in a bright light spot on a translucent scale. It is used to detect very small currents and voltages, such as null points in bridge and potentiometer circuits, with four sensitivity ranges from x1 to x0.001. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Type | Taut-suspension spot reflecting galvanometer |
| Movement | Integral taut suspension movement with lamp unit and scale |
| Readout | Hairline in a light spot on a translucent screen |
| Front scales | 0-18 cm (left zero) and 9-0-9 cm (centre zero), graduated in millimetres |
| Range attenuation | x1, x0.1, x0.01, x0.001 for current and voltage sensitivity, constant input resistance |
| Controls | Lock/unlock, zero adjustment, sensitivity adjustment |
| Input terminals | 4 mm colour-coded sockets |
| Mains input | 220-240 V AC, 50/60 Hz |
How it is used
In a spot galvanometer the coil hangs on a taut suspension instead of pivots, so there is no bearing friction. A small mirror on the coil reflects light from the built-in lamp onto the scale, and the light beam acts as a long, weightless pointer: a very small current gives a deflection that can be read clearly. The movement is damped against sideways vibration of the suspension without changing its electrical behaviour.
- Connect the instrument to 220-240 V AC mains to light the lamp, then release the movement with the lock control.
- Bring the light spot to zero with the zero adjustment; use the 9-0-9 cm centre-zero scale when current may flow in either direction.
- Select the least sensitive range, x0.001, and connect the circuit to the 4 mm terminals.
- Step the sensitivity up towards x1 as the balance point is approached, keeping the spot on the scale.
- Lock the movement before the galvanometer is moved or stored.
Typical experiments include finding the balance point of a Wheatstone bridge or metre bridge, comparing emfs on a potentiometer and detecting the small currents induced in electromagnetic induction work.
Key features
- Taut-suspension movement read by a hairline in a bright light spot, with no pivots to wear.
- Two front scales, 0-18 cm left zero and 9-0-9 cm centre zero, both graduated in millimetres.
- Four range-attenuation settings (x1, x0.1, x0.01, x0.001) for current and voltage, with constant input resistance.
- Damping of transverse suspension vibrations without affecting the electrical characteristics.
- Front-panel lock/unlock, zero and sensitivity controls, and 4 mm colour-coded input sockets.
Documentation and supply
Installation instructions and a manual are supplied with the galvanometer. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the EDSPOT galvanometer at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Lab Meters products
- Demonstration Meter Interscale (EL-LM-10389)

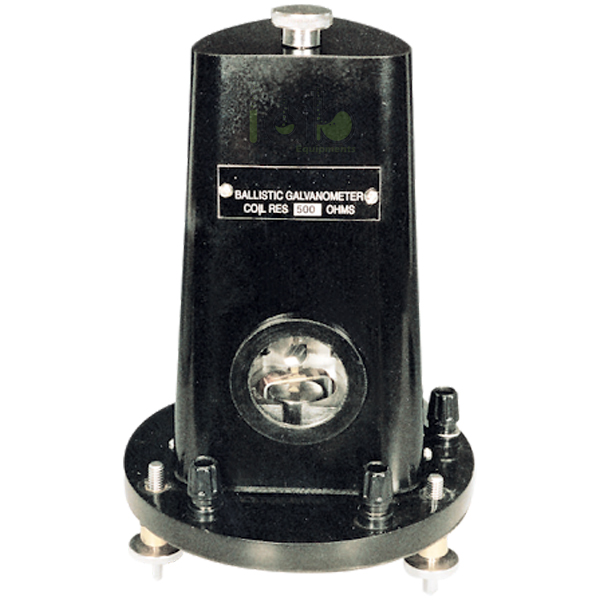

- Ballistic Galvanometer (EL-LM-10391)
- Demonstration Meter Vertical (EL-LM-10388)
- Basic Meter (EL-LM-10392)
- Demonstration Meter Horizontal (EL-LM-10387)
- Tangent Galvanometer (EL-LM-10393)
The full range is in the Lab Meters section of the Physics Lab range.
Frequently asked questions
What scales does the EDSPOT spot reflecting galvanometer have?
Two front scales graduated in millimetres: 0-18 cm with the zero at the left, and 9-0-9 cm with the zero in the centre for readings in either direction.
How is the sensitivity changed?
A range-attenuation control gives x1, x0.1, x0.01 and x0.001 of full sensitivity for both current and voltage, while the input resistance stays constant.
What power supply does the Galvanometer EDSPOT need?
Its lamp unit runs from 220-240 V AC mains at 50 or 60 Hz.
What is the price of the EDSPOT galvanometer?
Prices are not published on the website. Add the EDSPOT galvanometer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LM-10390 and the quantity, to receive a quotation.
Does Lab Exports manufacture the EDSPOT galvanometer?
Yes. Lab Exports manufactures the EDSPOT galvanometer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LM-10390.
