Galvanometer
Product Code : EL-LM-10382
Quick answer: The Galvanometer is an analog moving-coil instrument for detecting and measuring small direct currents in circuit experiments. It is mounted on a Bakelite or acrylic stand with lock-type terminals and is accurate to ±2% F.S.D., in all common ranges. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Item | Specification |
|---|---|
| Type | Analog moving-coil galvanometer / ammeter |
| Mounting | Bakelite or acrylic stand |
| Accuracy | ±2% F.S.D. |
| Terminals | Lock-type |
| Ranges | All common ranges available |
| Packing | Card box |
How it is used
A galvanometer works on the motor effect: current in a coil suspended in a radial magnetic field produces a torque that turns the coil against a control spring, and the deflection of the pointer is proportional to the current. Because the movement is very sensitive, the galvanometer is used both to detect whether any current flows and to measure small currents directly.
In school and college practicals it serves as the null detector in the meter bridge, Wheatstone bridge and potentiometer experiments, where balance is found when the galvanometer shows no deflection. It is also the starting point for the classic exercise of converting a galvanometer into an ammeter with a low-value shunt, S = Ig G / (I - Ig), or into a voltmeter with a high series resistance, R = V / Ig - G.
Key features
- Analog moving-coil movement for detecting and measuring small direct currents
- Accuracy of ±2% F.S.D.
- Lock-type terminals keep leads secure during experiments
- Mounted on a Bakelite or acrylic stand for bench use
- Supplied in all common ranges, packed in a card box
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Galvanometer at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Lab Meters products
- Panel Meters (EL-LM-10381)
- Ammeter (EL-LM-10383)
- Voltmeter (EL-LM-10384)
- Portable Meter (EL-LM-10385)

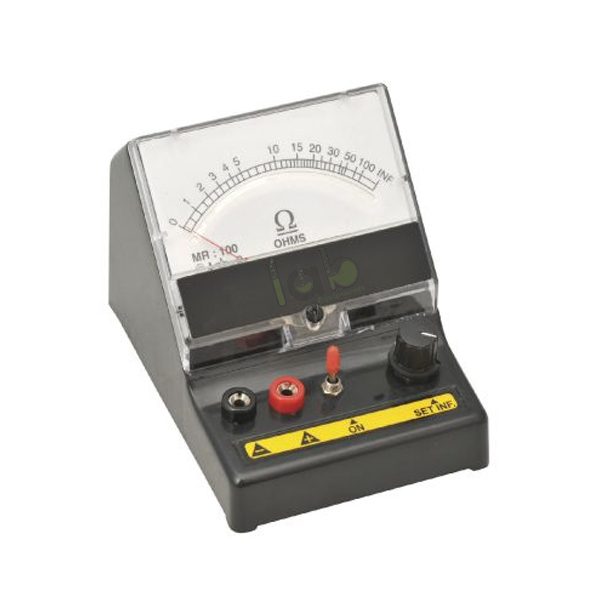

- Ohm Meter (EL-LM-10386)
- Demonstration Meter Horizontal (EL-LM-10387)
The full range is in the Lab Meters section of the Physics Lab range.
Frequently asked questions
What does a galvanometer measure?
It detects and measures small direct currents in a circuit, and is widely used as a null indicator in bridge and potentiometer experiments.
What is the accuracy of the Lab Exports galvanometer?
It is rated at ±2% of full-scale deflection.
Can the galvanometer be converted into an ammeter or voltmeter?
Yes. A low-resistance shunt in parallel turns it into an ammeter, and a high resistance in series turns it into a voltmeter; this conversion is a standard practical.
What is the price of the Galvanometer?
Prices are not published on the website. Add the Galvanometer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LM-10382 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Galvanometer?
Yes. Lab Exports manufactures the Galvanometer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LM-10382.
