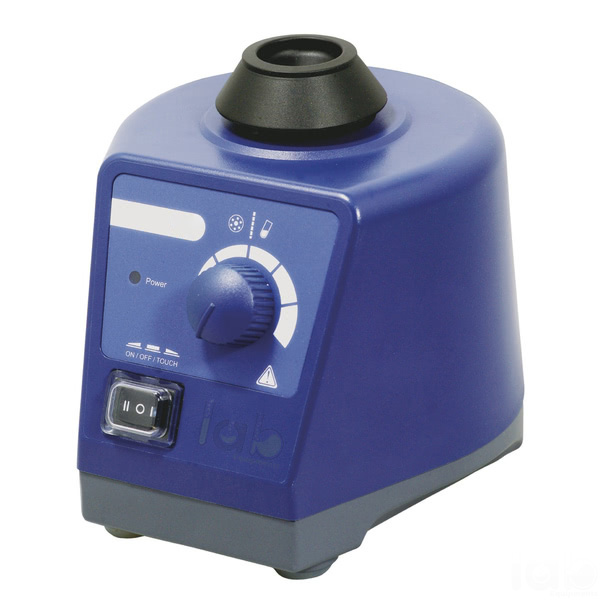

Vortex Mixer
Product Code : EL-LS-10745
Quick answer: A vortex mixer shakes a tube in a rapid circular motion so its contents form a vortex, used to resuspend cells and pellets, dissolve reagents and mix samples before analysis. This model has variable speed from 0 to 2500 rpm, touch and continuous operation modes and vacuum suction feet that hold it steady. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Value |
|---|---|
| Speed range | 0-2500 rpm, variable |
| Operation modes | Touch and continuous |
| Feet | Vacuum suction feet |
| Dimensions | 127 x 130 x 160 mm |
| Weight | 3.5 kg |
For the largest tube size the head will take, email [email protected] with the application.
How the vortex mixer is used
The mixing head moves in a small eccentric circle, so when the base of a tube is pressed onto it the liquid inside spins into a vortex within seconds. This gives vigorous, even mixing of small volumes that would be slow to mix by inversion, and it breaks up pellets of cells or precipitate that have settled after centrifugation.
In touch mode the head runs only while a tube is pressed down on it, which suits quick mixing of many tubes one after another. Continuous mode keeps the head running for longer mixing without holding pressure on the tube.
- Stand the mixer on a clean, flat bench so the suction feet grip.
- Select touch or continuous mode and set a low speed.
- Hold the capped tube near its top and press its base onto the head.
- Raise the speed until a vortex climbs the tube wall without reaching the cap.
- Release the tube, or switch off in continuous mode, once the contents are evenly mixed.
Key features
- Variable speed from 0 to 2500 rpm
- Touch mode for quick tube-by-tube mixing
- Continuous mode for longer runs
- Vacuum suction feet that keep the mixer steady
- Compact 127 x 130 x 160 mm footprint
- Suited to life science, physical and chemical analysis work
Documentation and supply
Operating instructions are supplied with the mixer. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the vortex mixer at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Laboratory Stirrer products

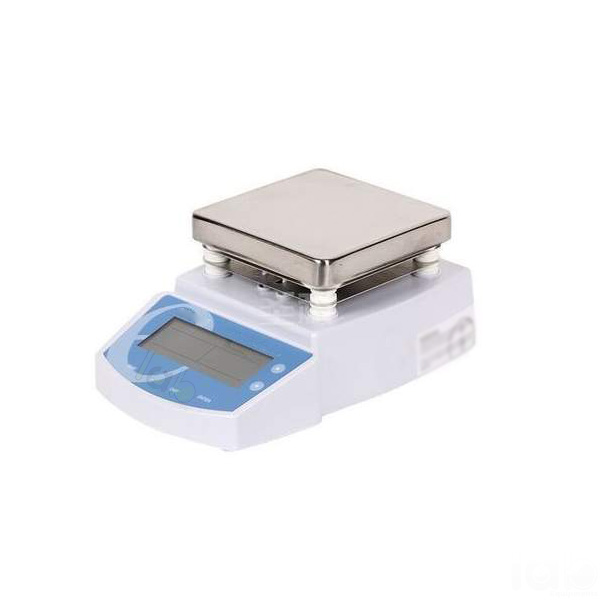

- Hotplate & Stirrer, Digital (EL-LS-10744)
- Advanced Ceramic Hot Plate Magnetic Stirrer (EL-LS-10746)

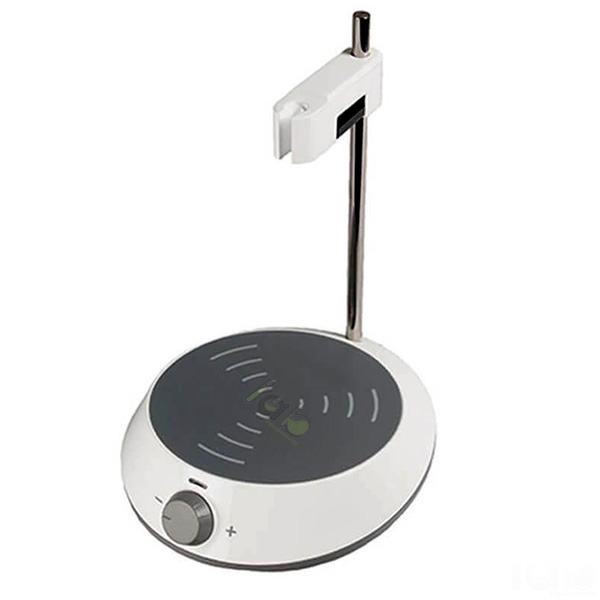

- Mini Magnetic Stirrer (EL-LS-10743)

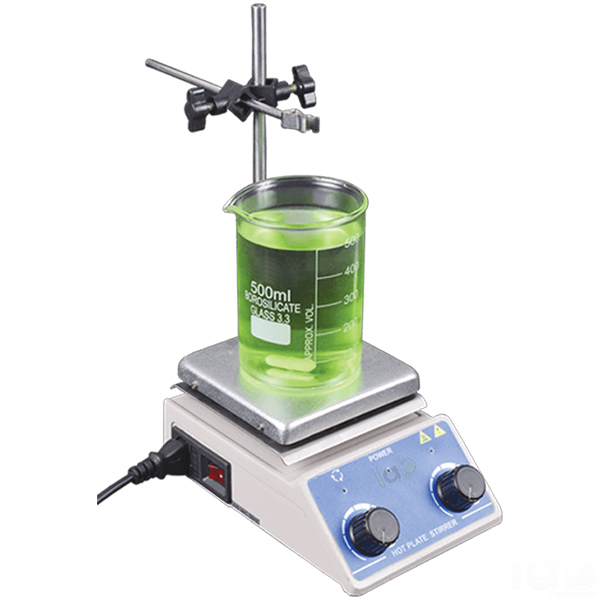

- Hot Plate Magnetic Stirrer (EL-LS-10747)
- Magnetic Stirrer - Ultra Thin (EL-LS-10742)

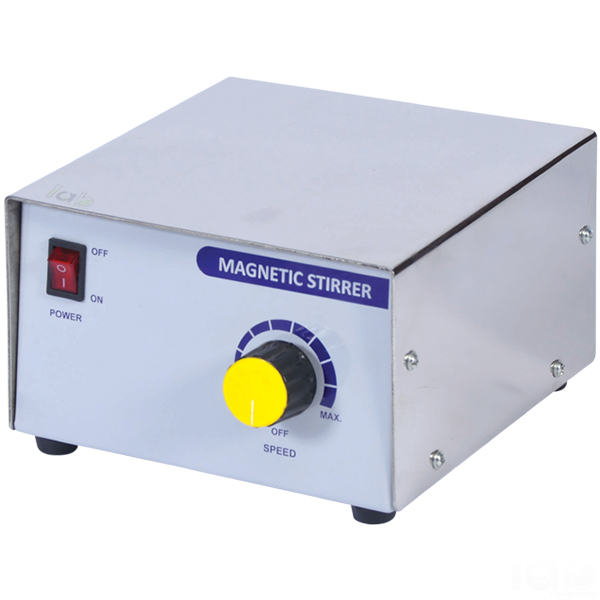

- Magnetic Stirrer (EL-LS-10748)
The full range is in the Laboratory Stirrer section of the Laboratory Equipment range.
Frequently asked questions
What speed range does the vortex mixer have?
Variable from 0 to 2500 rpm.
What is the difference between touch and continuous mode?
In touch mode the head runs only while a tube is pressed onto it; in continuous mode it keeps running without pressure on the tube.
What is a vortex mixer used for?
Resuspending cell and chemical pellets, dissolving reagents and mixing small volumes in tubes in life science and chemistry laboratories.
What is the price of the vortex mixer?
Prices are not published on the website. Add the vortex mixer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LS-10745 and the quantity, to receive a quotation.
Does Lab Exports manufacture the vortex mixer?
Yes. Lab Exports manufactures the vortex mixer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LS-10745.
