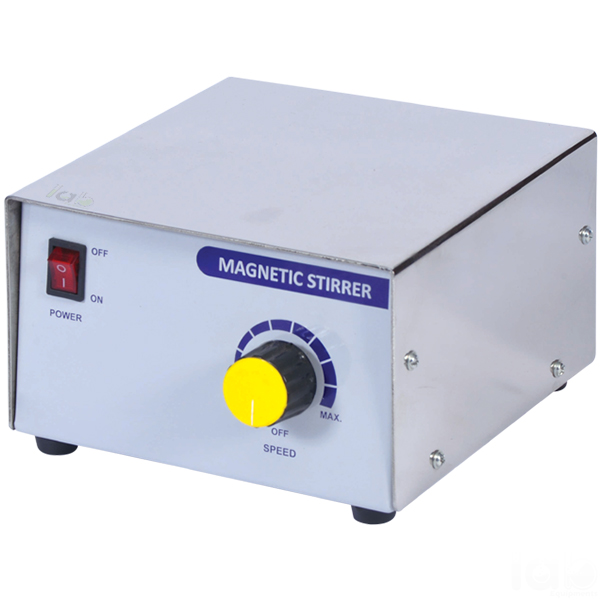

Magnetic Stirrer
Product Code : EL-LS-10748
Quick answer: A magnetic stirrer mixes liquids by spinning a coated stirrer bar inside the vessel with a rotating magnet under the top plate, so no paddle enters the solution. This model stirs up to 2 litres with continuously variable speed from 50 to 1500 rpm and is supplied with two PTFE-coated bars. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Value |
|---|---|
| Stirring capacity | Up to 2 litres |
| Speed range | 50-1500 rpm, continuously variable |
| Stirrer bars | 2 PTFE-coated: 9 x 25 mm and 9 x 35 mm |
| Controls | ON/OFF switch with indicator lamp; speed control on the front panel |
How the magnetic stirrer is used
Stirring with a magnet keeps the vessel open for other work: a burette can deliver titrant, a pH electrode can sit in the solution, or a flask can be stoppered, all while the liquid keeps moving. The low end of the range, from 50 rpm, gives gentle mixing that does not splash or draw in air, while speeds towards 1500 rpm dissolve solids quickly.
Two bar sizes are supplied: the 25 mm bar for small beakers and flasks, and the 35 mm bar for larger volumes up to the 2 litre capacity.
- Put the vessel in the centre of the top plate and add the stirrer bar that suits its size.
- Switch on at the ON/OFF switch; the indicator lamp lights.
- Turn the front-panel speed control up slowly until a steady vortex forms.
- Turn the speed down to zero before removing the vessel, then retrieve and rinse the bar.
Key features
- Stirs up to 2 litres
- Continuously variable speed from 50 to 1500 rpm
- ON/OFF switch with indicator lamp
- Speed control on the front panel
- Two PTFE-coated stirrer bars supplied
Standard accessories

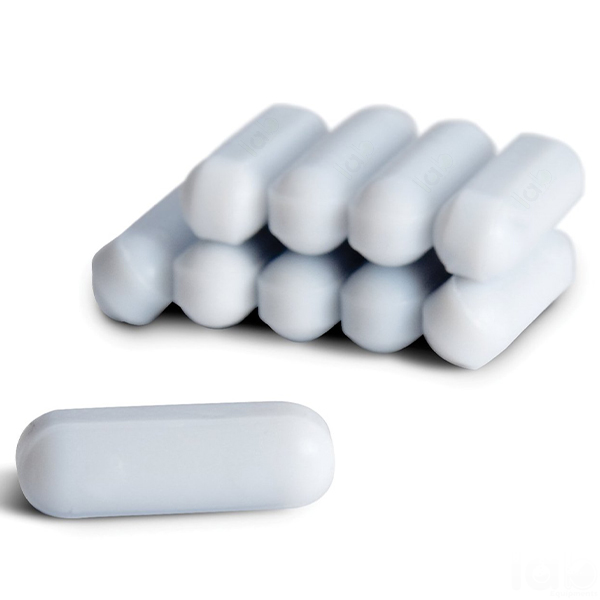

- PTFE-coated stirrer bar, 9 x 25 mm
- PTFE-coated stirrer bar, 9 x 35 mm
Documentation and supply
Operating instructions are supplied with the stirrer. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the magnetic stirrer at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Laboratory Stirrer products

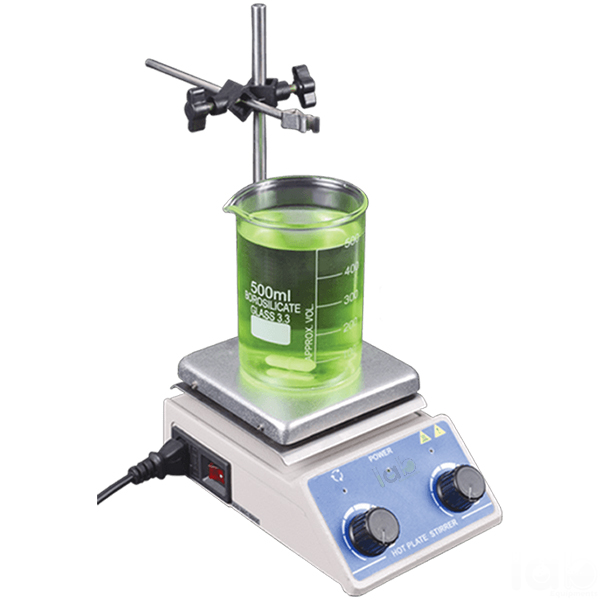

- Hot Plate Magnetic Stirrer (EL-LS-10747)

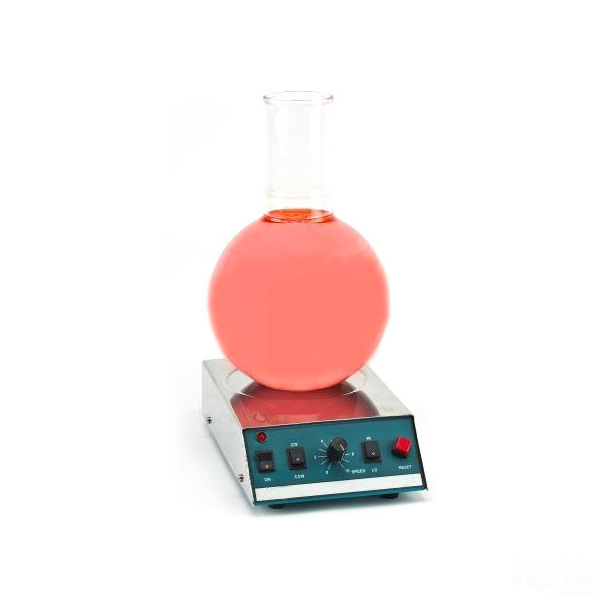

- Motorless Magnetic Stirrer (EL-LS-10749)
- Advanced Ceramic Hot Plate Magnetic Stirrer (EL-LS-10746)

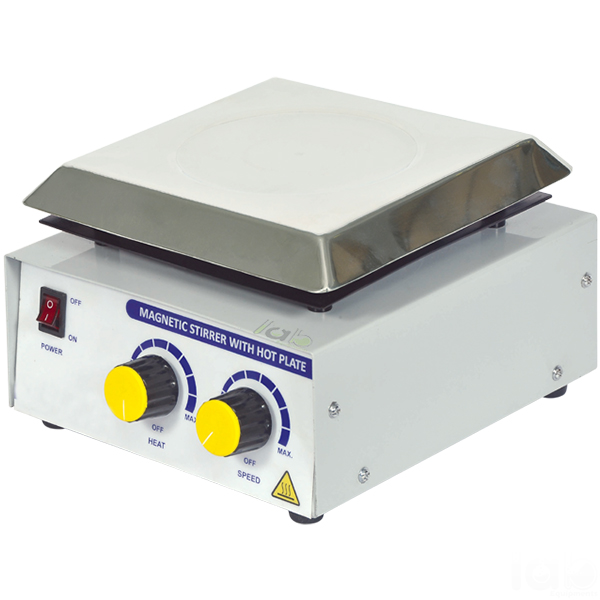

- Magnetic Stirrer with Hot Plate (EL-LS-10750)
- Vortex Mixer (EL-LS-10745)

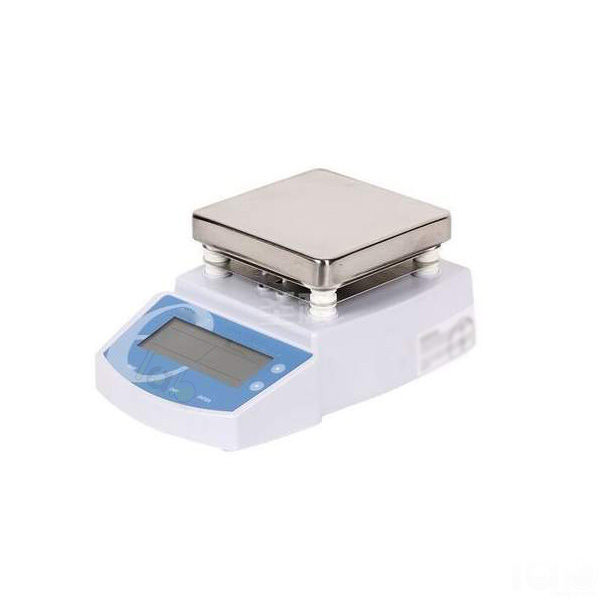

- Hotplate & Stirrer, Digital (EL-LS-10744)
The full range is in the Laboratory Stirrer section of the Laboratory Equipment range.
Frequently asked questions
What volume can the magnetic stirrer handle?
Up to 2 litres.
What stirrer bars are included?
Two PTFE-coated bars, 9 x 25 mm and 9 x 35 mm.
Can this magnetic stirrer be used during a titration?
Yes. The bar stirs inside the flask, so a burette and electrode can be used in the open vessel while stirring continues at a gentle speed.
What is the price of the magnetic stirrer?
Prices are not published on the website. Add the magnetic stirrer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LS-10748 and the quantity, to receive a quotation.
Does Lab Exports manufacture the magnetic stirrer?
Yes. Lab Exports manufactures the magnetic stirrer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LS-10748.
