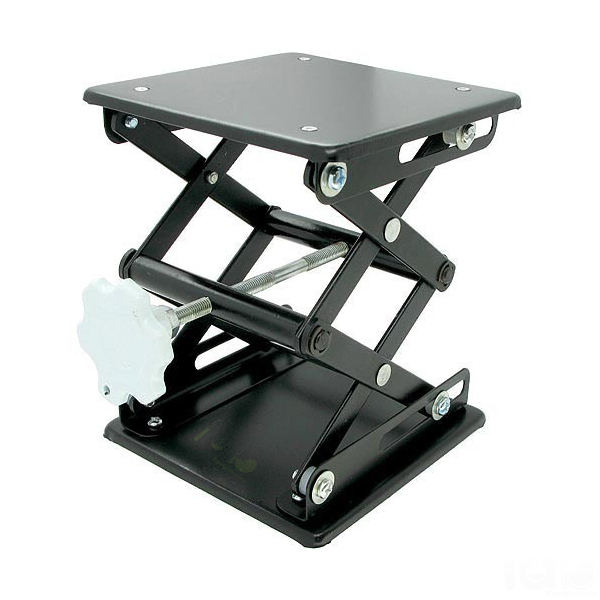

Laboratory Jack
Product Code : EL-LI-10760
Quick answer: A laboratory jack is an adjustable platform that raises and lowers apparatus, used to bring a heating mantle, bath or beaker up to a clamped flask and lower it away again. This screw-operated, scissor-action jack has a 150 x 135 mm top plate, adjusts from 60 mm to 250 mm and carries up to 25 kg. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Mechanism | Screw operated, scissor action |
| Top plate size | 150 x 135 mm |
| Minimum height | 60 mm |
| Maximum elevation | 250 mm |
| Maximum load | 25 kg |
How the laboratory jack is used
The jack works like a scissor lift. Turning the adjusting screw draws the crossed arms together, which pushes the top plate up; turning it the other way lets the plate down. Because the screw holds its position, the platform stays at any height between 60 mm and 250 mm without a separate lock.
In distillation, reflux and extraction set-ups the glassware is clamped to a retort stand and the heat source or cooling bath sits on the jack. Lowering the jack takes the heat away from the flask at once, which is safer than unclamping hot glass, and fine height adjustment lines up funnels, receivers and optical parts in other experiments.
- Stand the jack on a level bench under the clamped apparatus.
- Place the heating mantle, bath or vessel centrally on the top plate, within the 25 kg load.
- Turn the screw to raise the platform until the item meets the flask.
- Lower the platform by turning the screw back when heating must stop.
Key features
- Screw-operated scissor mechanism for smooth, controlled lifting
- Height adjustable from 60 mm to 250 mm
- Supports loads up to 25 kg
- 150 x 135 mm top plate
- Holds its set height during an experiment
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Laboratory Jack at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Laboratory Instruments products
- Lab Cushion (EL-LI-10761)
- Pipette Stand, Horizontal (EL-LI-10758)
- Weighting Tray (EL-LI-10762)
- Pipette Stand, Vertical (EL-LI-10757)
- Vacuum Pump, Hand (EL-LI-10763)

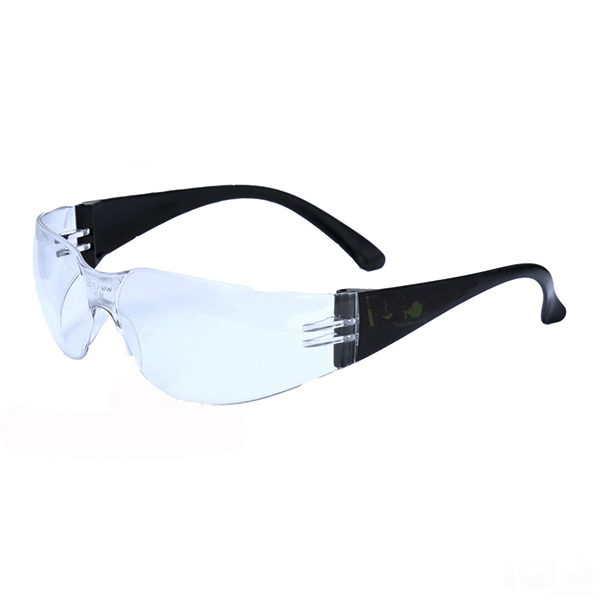

- Premium Safety Spectacles (EL-LI-10756)
The full range is in the Laboratory Instruments section of the Laboratory Equipment range.
Frequently asked questions
What is the height range of the laboratory jack?
The platform adjusts from a minimum of 60 mm to a maximum elevation of 250 mm.
How much weight can the laboratory jack support?
It carries a maximum load of 25 kg on its 150 x 135 mm top plate.
Why is a lab jack used under a heating mantle?
It lets the mantle be lowered away from a clamped flask straight away if heating must stop, without moving the hot glassware.
What is the price of the Laboratory Jack?
Prices are not published on the website. Add the Laboratory Jack to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LI-10760 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Laboratory Jack?
Yes. Lab Exports manufactures the Laboratory Jack at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LI-10760.
