Digital Dissolved Oxygen Meter
Product Code : EL-LI-10792
Quick answer: A dissolved oxygen meter measures how much oxygen is dissolved in a water sample, a key sign of water quality and of biological activity such as respiration and photosynthesis. This digital table model reads 0-20.0 ppm with 0.1 ppm resolution through an amperometric gold/silver membrane probe, compensating for temperature from 0 to 50 °C. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Value |
|---|---|
| Range | 0-20.0 ppm dissolved oxygen |
| Resolution | 0.1 ppm |
| Accuracy | 0.1 ppm + 1 count |
| Temperature compensation | 0-50 °C |
| Manual compensation | ±3% |
| Sensor | Amperometric, gold/silver membrane probe |
| Model | Table model |
| Display | 3½-digit LED |
| Power | 230 V AC, 50 Hz |
| Weight | 2 kg |
How dissolved oxygen is measured
In an amperometric (Clark-type) probe, oxygen from the sample diffuses through a thin membrane and is reduced at the gold cathode, while the silver anode completes the circuit. The current produced is proportional to the oxygen reaching the cathode, and the meter converts it to ppm, which for water is the same as mg/L. Because oxygen solubility and membrane diffusion both change with temperature, the reading is compensated between 0 and 50 °C.
- Connect the probe and let the meter warm up.
- Calibrate in water-saturated air or air-saturated water as described in the manual.
- Immerse the probe in the sample and stir gently, so fresh water keeps flowing past the membrane.
- Read the value in ppm once the display is steady, and rinse the probe with distilled water between samples.
Typical practicals include comparing oxygen in still and aerated water, the effect of temperature on oxygen solubility, oxygen use by aquatic organisms, and the day-zero and day-five readings of a BOD test.
Key features
- 0-20.0 ppm range with 0.1 ppm resolution
- Accuracy of 0.1 ppm + 1 count
- Amperometric gold/silver membrane probe for the table model
- Temperature compensation from 0 to 50 °C
- Manual compensation of ±3%
- Clear 3½-digit LED display
Documentation and supply
Installation instructions and a manual are supplied with the meter. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the dissolved oxygen meter at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Laboratory Instruments products
- Auto Karl Fischer Titrimeter (EL-LI-10791)

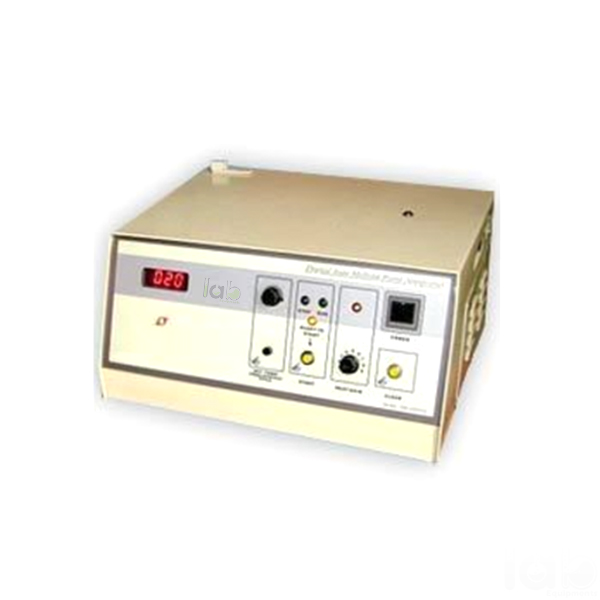

- Automatic Melting Point Apparatus (EL-LI-10793)
- Single Beam Microprocessor UV-VIS Spectrophotometer (EL-LI-10790)
- Water and Soil Analysis Kit (EL-LI-10794)
- Acid Filter for Inverted Mobile Fume Hood (EL-LI-10789)
- Digital Colony Counter (EL-LI-10795)
The full range is in the Laboratory Instruments section of the Laboratory Equipment range.
Frequently asked questions
What is the range of this dissolved oxygen meter?
0 to 20.0 ppm (mg/L) dissolved oxygen, with 0.1 ppm resolution and accuracy of 0.1 ppm + 1 count.
What type of sensor does it use?
An amperometric gold/silver membrane probe.
Why is temperature compensation needed?
Oxygen solubility and the probe response both change with temperature. The meter compensates between 0 and 50 °C so readings taken at different temperatures can be compared.
What is the price of the dissolved oxygen meter?
Prices are not published on the website. Add the dissolved oxygen meter to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LI-10792 and the quantity, to receive a quotation.
Does Lab Exports manufacture the dissolved oxygen meter?
Yes. Lab Exports manufactures the dissolved oxygen meter at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LI-10792.
Request a quote
Email [email protected] with the house code EL-LI-10792 and the quantity, or add the dissolved oxygen meter to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
