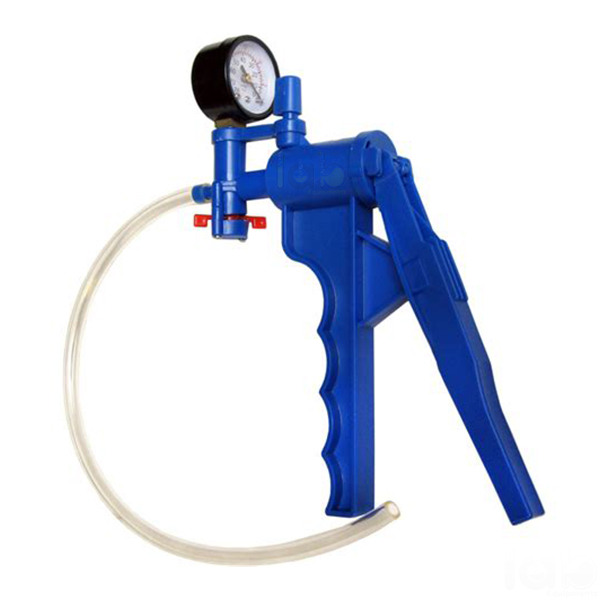

Vacuum Pump, Hand
Product Code : EL-LI-10763
Quick answer: The hand vacuum pump is a lightweight, hand-operated pump that removes air from a vessel or pushes air into it, used for vacuum filtration, air-pressure demonstrations and simple vacuum experiments. It draws 15 cm³ per stroke, is rated to a maximum vacuum of 50 mmHg and gives positive gauge pressure up to 2 atm. Lab Exports manufactures it in Delhi for school and college physics and chemistry laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Hand operated, lightweight |
| Stroke volume | 15 cm³ per stroke |
| Maximum vacuum | 50 mmHg |
| Maximum positive pressure | Up to 2 atm (gauge) |
| Power | None required |
How the hand vacuum pump is used
Each squeeze or stroke of the pump draws about 15 cm³ of air out of the connected vessel, so the pressure inside falls a little with every stroke. Because the pump needs no electricity, it can be used at any bench, in a classroom without power points or on field work.
It serves two kinds of work. In chemistry it provides the suction for small-scale filtration through a Buchner or Hirsch funnel. In physics it shows the effects of air pressure: water in a flask boiling below 100 °C when the pressure is reduced, a balloon swelling inside an evacuated jar, or a column of liquid being drawn up a tube. Used for positive pressure, it can inflate or pressurise a closed system up to 2 atm gauge.
- Connect the pump to the side arm of the flask or the jar outlet with thick-walled tubing.
- Make sure all stoppers and joints are sealed.
- Operate the pump with steady strokes and watch the effect in the vessel.
- Release the vacuum slowly before disconnecting the tubing.
Key features
- Hand operated, so no electrical supply is needed
- Draws 15 cm³ of air per stroke
- Rated to a maximum vacuum of 50 mmHg
- Also produces positive gauge pressure up to 2 atm
- Lightweight for bench and field use
Documentation and supply
Operating instructions are supplied with the pump. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Vacuum Pump, Hand at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Laboratory Instruments products
- Weighting Tray (EL-LI-10762)
- Vacuum Pump, Electric (EL-LI-10764)
- Lab Cushion (EL-LI-10761)
- Tube Roller, Variable Speed (EL-LI-10765)
- Laboratory Jack (EL-LI-10760)
- Thermo-Anemometer (EL-LI-10766)
The full range is in the Laboratory Instruments section of the Laboratory Equipment range.
Frequently asked questions
How much air does the hand vacuum pump draw per stroke?
It draws 15 cm³ per stroke and is rated to a maximum vacuum of 50 mmHg.
Can the hand vacuum pump also produce pressure?
Yes. Besides vacuum it can produce positive gauge pressures up to 2 atm.
Does the hand vacuum pump need electricity?
No. It is operated by hand, so it can be used anywhere without a power supply.
What is the price of the Vacuum Pump, Hand?
Prices are not published on the website. Add the Vacuum Pump, Hand to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LI-10763 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Vacuum Pump, Hand?
Yes. Lab Exports manufactures the Vacuum Pump, Hand at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LI-10763.
