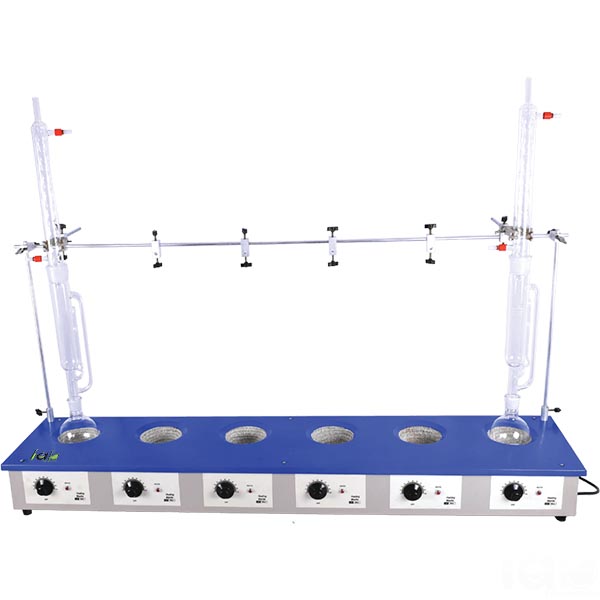

Multi Position Heating Mantle
Product Code : EL-HM-10680
Quick answer: The multi position heating mantle heats 3 to 6 round bottom flasks side by side, each with its own built-in temperature controller, for running parallel distillations, extractions and reflux preparations. It is offered for 100, 250, 500 and 1000 ml flasks, works up to 350 °C, and comes with support rods and clamps. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Multi position heating mantle |
| Positions | 3 to 6 flasks |
| Flask sizes | 100, 250, 500 or 1000 ml round bottom |
| Maximum operating temperature | 350 °C |
| Power rating options | 180, 360, 450, 600, 900, 1200 or 1800 W |
| Control | Individual built-in temperature controller for each position |
| Housing | Vented, with air flow to keep the unit cool to touch |
| Supplied with | Support rods and clamps |
The power rating depends on the number of positions and the flask size ordered.
How it is used
When a class or a quality-control laboratory must run the same procedure on several samples, heating them one after another wastes time and makes results harder to compare. A multi position mantle, sometimes called a battery mantle, holds 3 to 6 flasks in a row so all of them can be heated at once. Each position has its own controller, so one flask can be brought to reflux while another is held at a gentle simmer, or a position can be switched off without affecting the rest.
Typical uses are parallel distillations, Soxhlet extractions of fat or oil from several samples, digestions, and reflux preparations in teaching laboratories where each student group uses one position. The support rods and clamps supplied with the unit hold the condensers and flask necks, and the vented housing with its air flow keeps the outer case cool to touch during long runs.
- Fit the support rods and clamps to the unit.
- Seat a round bottom flask of the correct size in each position to be used and clamp it.
- Charge the flasks and fit the condensers or extraction apparatus.
- Switch on and set each position's controller to the heat required.
- Switch off each position when its run is complete.
Key features
- Heats 3 to 6 round bottom flasks at the same time.
- Individual built-in temperature controller for every position.
- Maximum operating temperature of 350 °C.
- Available for 100, 250, 500 and 1000 ml flasks.
- Vented housing keeps the unit cool to touch.
- Support rods and clamps included.
Supplied with
- Support rods
- Clamps
Documentation and supply
Installation instructions and a manual are supplied with the heating mantle. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the multi position heating mantle at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Heating Mantle products
- Heating Mantle 1000ml (EL-HM-10679)

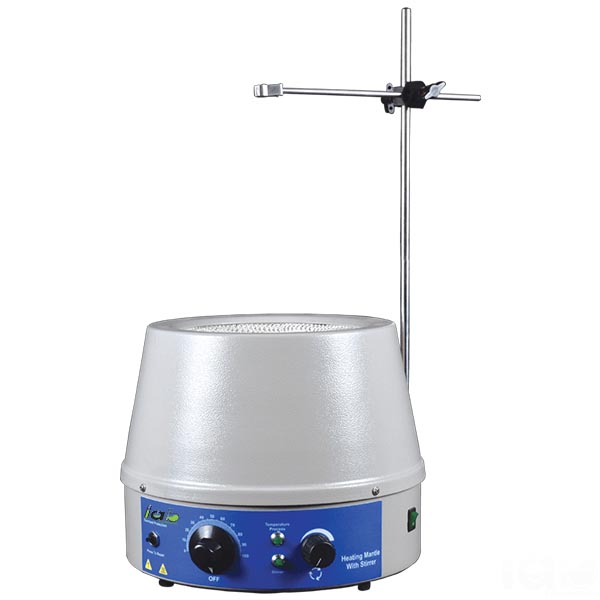

- Heating Mantle with Stirrer (Rota Mantle) (EL-HM-10681)
- Heating Mantle 250ml (EL-HM-10678)

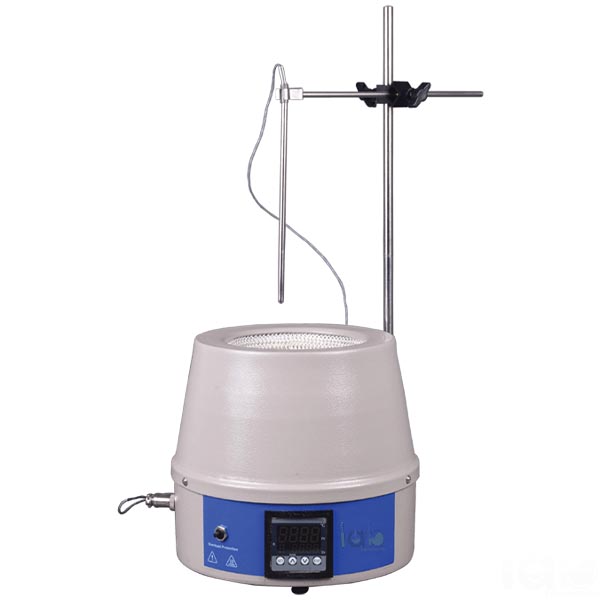

- Digital Heating Mantles (EL-HM-10682)

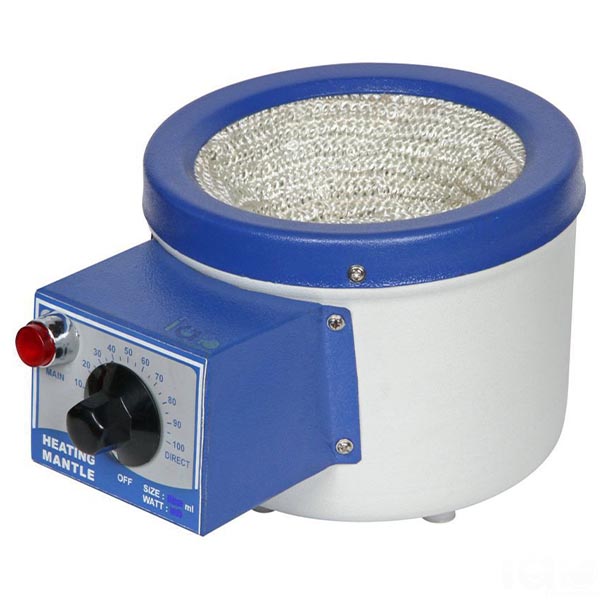

- Heating Mantle (EL-HM-10683)

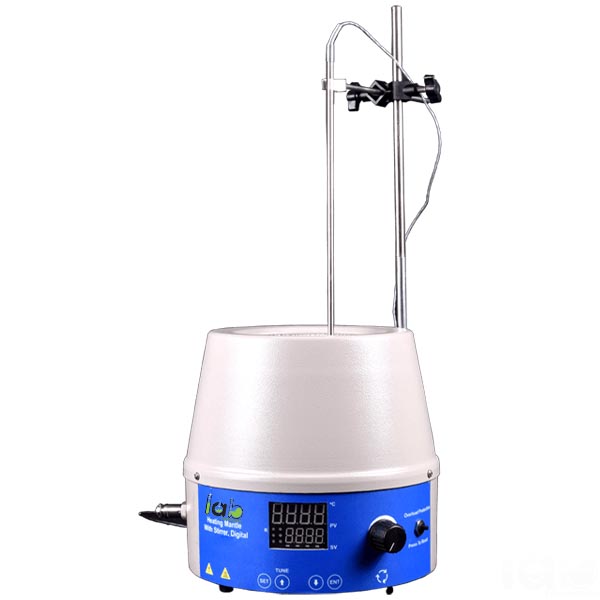

- Digital Heating Mantle with Stirrer (EL-HM-10684)
The full range is in the Heating Mantle section of the Laboratory Equipment range.
Frequently asked questions
How many flasks can the multi position heating mantle heat?
From 3 to 6 round bottom flasks at the same time, depending on the model.
Is each position controlled separately?
Yes. Every position has its own built-in temperature controller.
What flask sizes are available?
100, 250, 500 and 1000 ml.
What is the price of the multi position heating mantle?
Prices are not published on the website. Add the multi position heating mantle to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-HM-10680 and the quantity, to receive a quotation.
Does Lab Exports manufacture the multi position heating mantle?
Yes. Lab Exports manufactures the multi position heating mantle at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-HM-10680.
