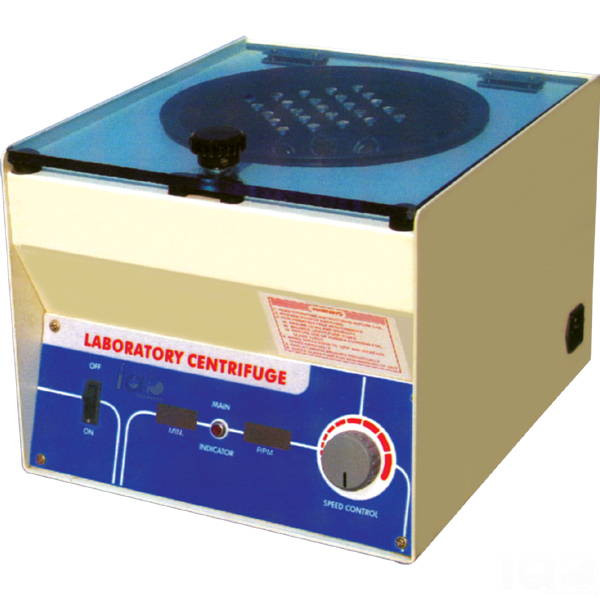

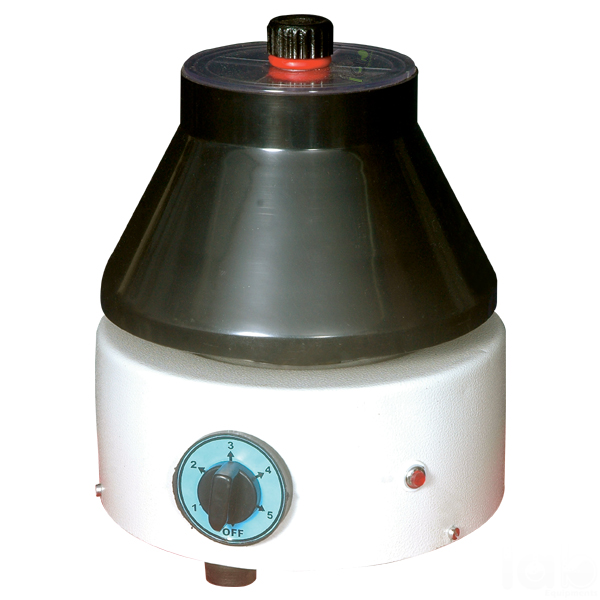

Laboratory Centrifuge
Product Code : EL-C-10700
Quick answer: The laboratory centrifuge is a low-speed swing out centrifuge for clinical and pathological laboratories, including infertility laboratories where gentle, low-speed spinning is recommended. It reaches 3000 rpm without load (2850 rpm loaded), carries an 8 x 15 mL swing out head with adapters for 12 x 100 mm test tubes, and has a 0-99 min digital timer. Lab Exports manufactures it in Delhi for hospital and pathology laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Maximum speed | 3000 rpm without load; 2850 rpm on load |
| Rotor | Swing out head, 8 x 15 mL |
| Adapters | 8 reduction adapters for 12 x 100 mm test tubes |
| Timer | Digital, 0 to 99 min |
| Motor | Brushless AC motor |
| Lid | See-through acrylic |
How it is used
Not every sample should be spun hard. Cells that must stay alive and intact, such as sperm prepared for examination or washing in an infertility laboratory, and fragile blood cells, are best separated at low speed in a swing out head, where the tubes lie horizontal during the run and the pellet forms gently at the bottom. This centrifuge is built for that range: it runs up to 3000 rpm unloaded and 2850 rpm with a full load.
The 8-place swing out head takes 15 mL tubes directly, and the eight reduction adapters let the same head hold 12 x 100 mm test tubes, which are common for urine and serum work in pathology laboratories. The see-through acrylic lid lets the operator check that the head is turning smoothly without opening the chamber.
- Load balanced 15 mL tubes, or 12 x 100 mm tubes in the reduction adapters, into opposite buckets.
- Close the acrylic lid.
- Set the digital timer between 0 and 99 min.
- Start the centrifuge and watch the head through the lid.
- Wait for the head to stop before opening the lid and removing the tubes.
Key features
- Low-speed operation up to 3000 rpm, suited to infertility laboratories.
- 8 x 15 mL swing out head for flat, even pellets.
- 8 reduction adapters for 12 x 100 mm test tubes.
- Digital timer from 0 to 99 min.
- Brushless AC motor.
- See-through acrylic lid for checking the run.
Supplied with
- 8 x 15 mL swing out head
- 8 reduction adapters for 12 x 100 mm test tubes
Documentation and supply
Installation instructions and a manual are supplied with the centrifuge. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the laboratory centrifuge at its works in Laxmi Nagar, Delhi, and supplies it to hospital, clinical, pathology and teaching laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Centrifuges products

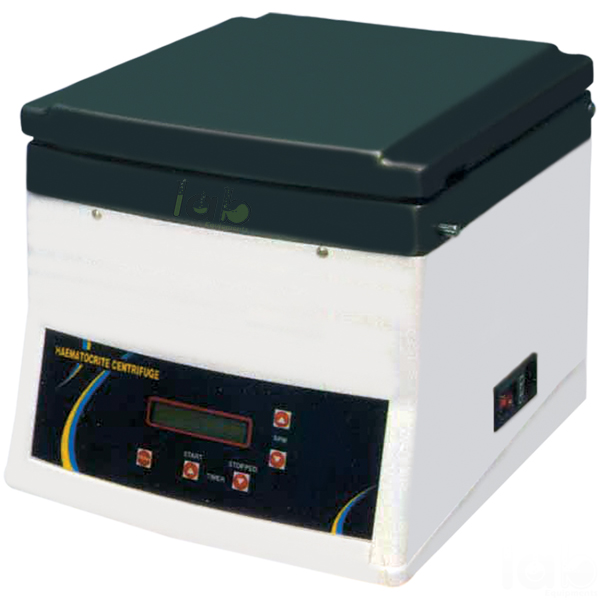

- Hematocrit Centrifuge (EL-C-10699)

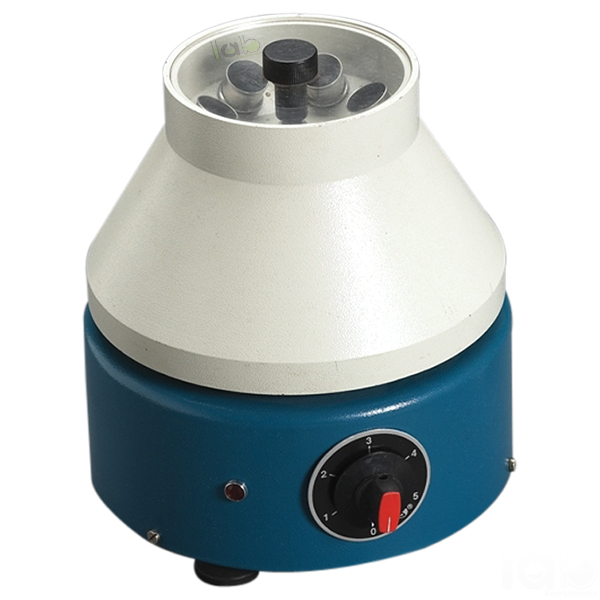

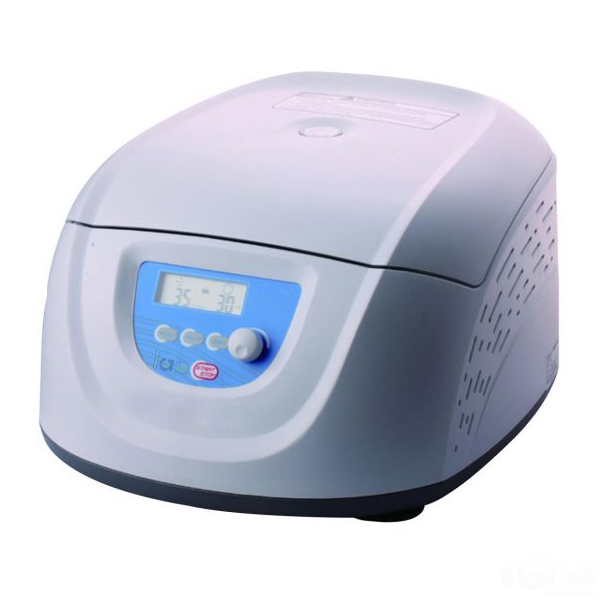

- Clinical Centrifuge (EL-C-10701)
- Micro Centrifuge (EL-C-10698)
- Mini Centrifuge (EL-C-10702)

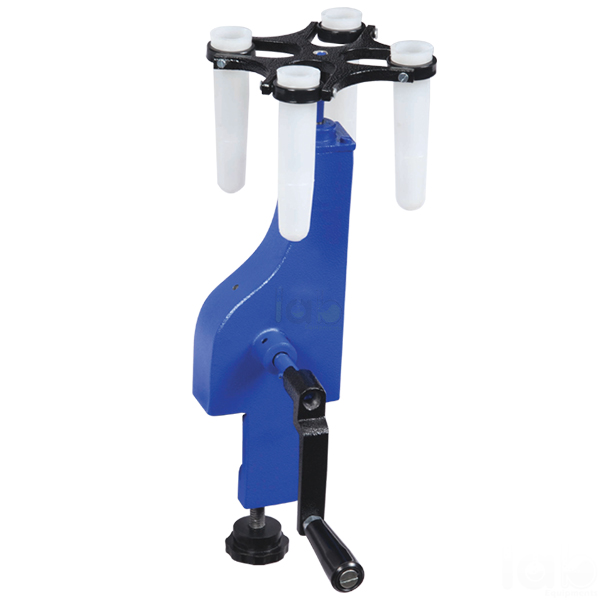

- Hand Centrifuge (EL-C-10697)

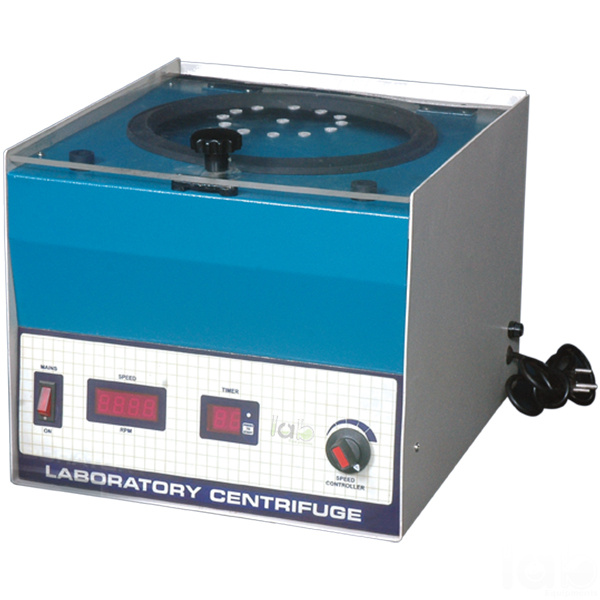

- Universal Centrifuge (EL-C-10703)
The full range is in the Centrifuges section of the Laboratory Equipment range.
Frequently asked questions
What speed does the laboratory centrifuge reach?
3000 rpm without load and 2850 rpm with a full load.
Can it take 12 x 100 mm test tubes?
Yes. The 8 x 15 mL swing out head comes with 8 reduction adapters for 12 x 100 mm test tubes.
What is the price of the laboratory centrifuge?
Prices are not published on the website. Add the laboratory centrifuge to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-C-10700 and the quantity, to receive a quotation.
Does Lab Exports manufacture the laboratory centrifuge?
Yes. Lab Exports manufactures the laboratory centrifuge at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-C-10700.
