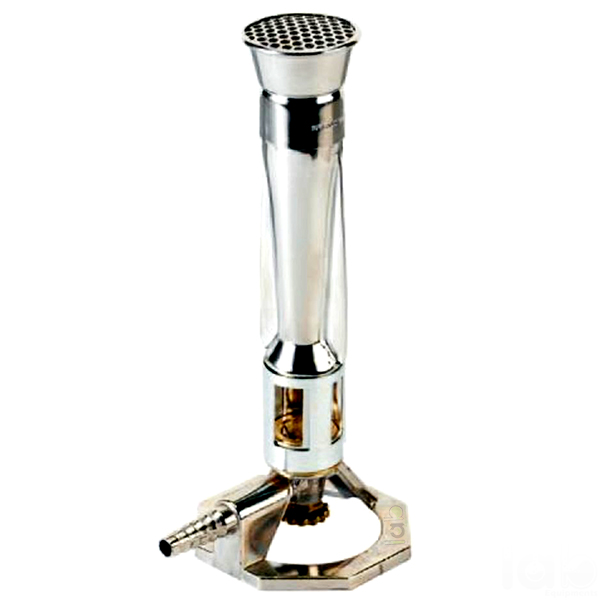

Teclu Burner
Product Code : EL-B-10659
Quick answer: The Teclu Burner is a natural gas laboratory burner with a conical mixing section, a screwed air regulator and a gas control needle, giving a very hot, adjustable flame for glasswork, soldering and general strong heating. Its burner tube is 125 mm high and 13 mm in diameter on an 80 mm base, with a 9 mm gas inlet. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Item | Specification |
|---|---|
| Type | Teclu burner, for natural gas |
| Mixing section | Conical |
| Burner tube | 125 mm (H) x 13 mm (D) |
| Base diameter | 80 mm |
| Gas inlet | 9 mm |
| Controls | Screwed air regulator and gas control needle |
How the Teclu burner works
The Teclu burner, named after the chemist Nicolae Teclu, improves on the Bunsen burner in two ways. The bottom of the tube widens into a cone, and the air supply is set by a screwed regulator at the base of that cone rather than by a sleeve over side holes. The gas flow is set at the burner itself by a control needle in the jet. The conical section mixes gas and air thoroughly before they reach the top of the tube.
The result is a hotter, steadier flame than a basic Bunsen burner, with the needle and the air regulator giving fine control over its size and temperature. That suits glasswork such as bending and sealing tubing, soldering, and any heating where a sharp, hot flame is wanted.
- Connect the 9 mm gas inlet to the natural gas tap with a burner tube.
- Close the air regulator, open the gas control needle slightly and light the burner.
- Screw the air regulator open until the flame turns blue with a sharp inner cone.
- Use the gas control needle to set the size of the flame for the job.
- Close the gas tap after use.
Key features
- Conical mixing section for thorough gas-air mixing
- Screwed air regulator for fine air adjustment
- Gas control needle for setting the gas flow at the burner
- Very hot flame for glasswork and soldering
- 125 x 13 mm burner tube on an 80 mm base, 9 mm gas inlet
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Teclu burner at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Burners products
- Bunsen Burner Pilot Flame (EL-B-10658)
- Meker Burner (EL-B-10660)
- Meker Burner Heavy Base (EL-B-10657)
- High Temperature Burner (EL-B-10661)
- Economy Burner Meker (EL-B-10656)
- Micro Bunsen Burner (EL-B-10662)
The full range is in the Burners section of the Laboratory Equipment range.
Frequently asked questions
What is the Teclu burner used for?
It gives a very hot flame, so it is used for glasswork, soldering and general strong heating in the laboratory.
How does a Teclu burner differ from a Bunsen burner?
It has a conical mixing section with a screwed air regulator and a gas control needle, which give finer control and a hotter flame.
Which gas is the Teclu burner made for?
This model is made for natural gas.
What is the price of the Teclu burner?
Prices are not published on the website. Add the Teclu burner to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10659 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Teclu burner?
Yes. Lab Exports manufactures the Teclu burner at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10659.
