S Shape Electrodes
Product Code : EL-E-10977

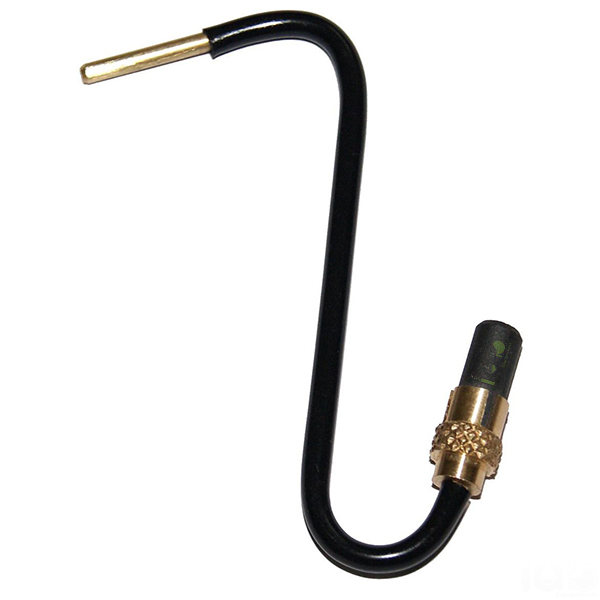

Quick answer: S Shape Electrodes are a pair of insulated brass electrodes with a short carbon rod at the lower end, shaped to hang over the rim of a beaker of electrolyte. A bare contact at the top takes a crocodile clip on a 4 mm lead, so an electrolysis circuit is set up in seconds. Lab Exports manufactures them in Delhi for schools, colleges and universities.
Specifications
| Item | Detail |
|---|---|
| Material | Insulated brass with a carbon rod tip at the lower end |
| Shape | 'S' shaped, to hang over a beaker rim |
| Connection | Bare contact at the top for a crocodile clip with 4 mm leads |
| Supplied as | Pair of electrodes |
How it is used
Carbon (graphite) is the usual electrode material for school electrolysis because it conducts well and is inert: it takes no part in the reaction, so the products seen at each electrode come from the electrolyte alone. Electrolysing copper(II) chloride solution between carbon electrodes, for example, deposits copper at the cathode and releases chlorine at the anode.
The S shape removes the need for stands, clamps or stoppers. Each electrode hooks over the rim of the beaker with its carbon tip in the solution, and the insulation on the brass keeps the metal out of the electrolyte so only the carbon conducts into the solution.
- Pour the electrolyte into a beaker.
- Hang one electrode over each side of the rim so that the carbon tips dip into the solution without touching.
- Clip a 4 mm lead with a crocodile clip onto the bare contact at the top of each electrode.
- Connect the leads to a low-voltage DC supply and observe the products at each electrode.
After use, rinse the carbon tips with water; any metal deposited on the cathode can be wiped off before the next run.
Key features
- Supplied as a pair
- Carbon rod tip gives an inert electrode surface
- Insulated brass body
- 'S' shape hangs securely over a beaker rim, with no stand needed
- Bare top contact for crocodile clips on 4 mm leads
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the S shape electrodes at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrolysis products
- Electrodes Round (EL-E-10976)

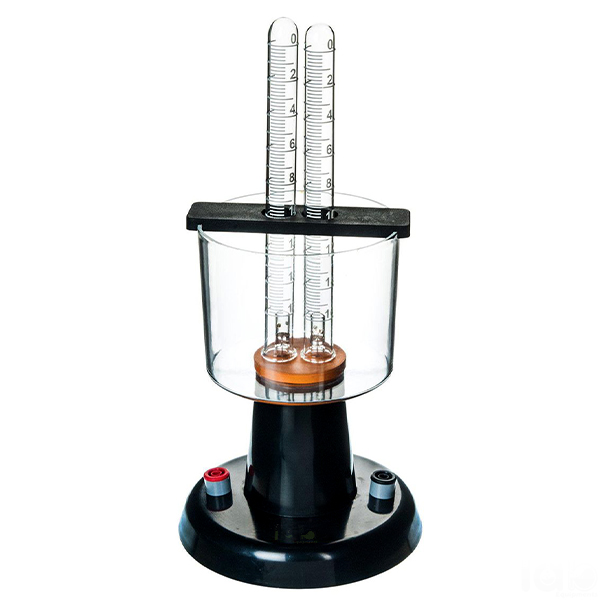

- Student Gas Voltameter (EL-E-10978)

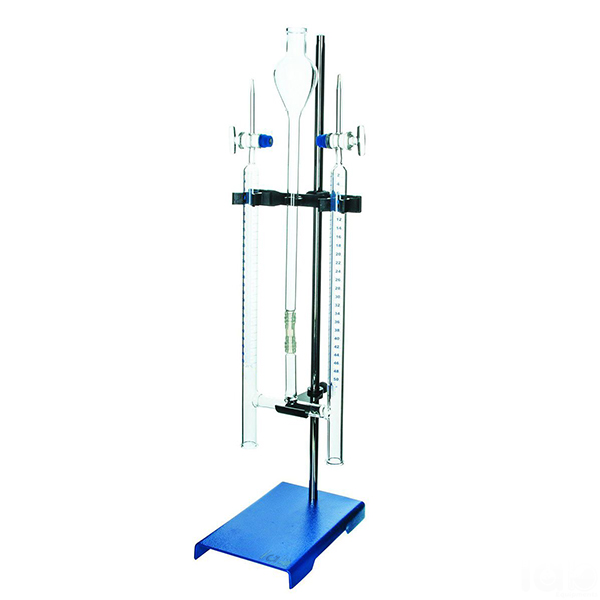

- Hofmann Voltameter (EL-E-10975)

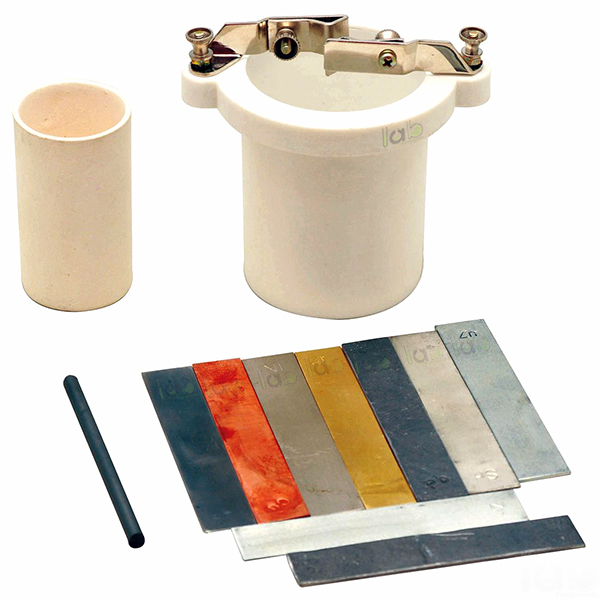

- Simple Cell, Student Kit (EL-E-10979)
- Salt Bridge (EL-E-10980)

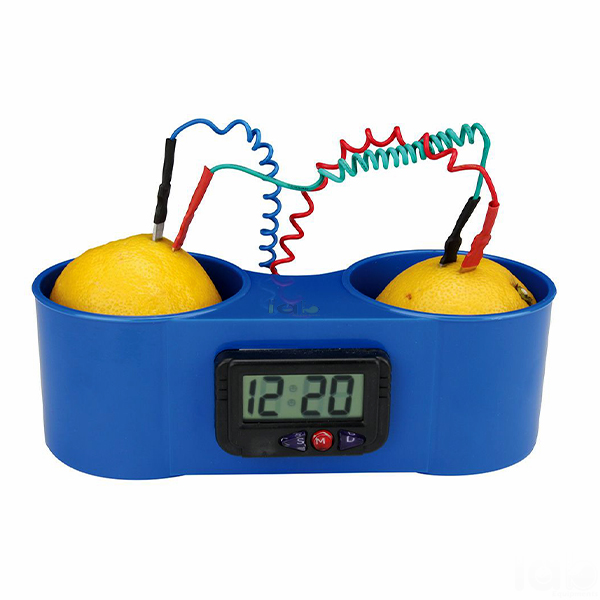

- Fruit Clock (EL-E-10981)
The full range is in the Electrolysis section of the Chemistry Lab range.
Frequently asked questions
What are the S shape electrodes made of?
Insulated brass with a short carbon rod at the lower end.
How are the S shape electrodes connected?
A crocodile clip on a 4 mm lead is attached to the bare contact at the top of each electrode.
What is the price of the S shape electrodes?
Prices are not published on the website. Add the S shape electrodes to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-E-10977 and the quantity, to receive a quotation.
Does Lab Exports manufacture the S shape electrodes?
Yes. Lab Exports manufactures the S shape electrodes at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-E-10977.
