Electrode Connector
Product Code : EL-E-10983
Quick answer: The Electrode Connector is a small acid-resistant plastic fitting that grips a round electrode and links it to a power supply or meter in electrolysis and electrochemical cell experiments. It takes round electrodes up to 7.5 mm in diameter, measures 25 mm O.D. and 12 mm I.D., and its contact screw has a socket for 4 mm safety jacks. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Material | Acid-resistant plastic |
| Electrode compatibility | Round electrodes up to 7.5 mm diameter |
| Outside diameter | 25 mm |
| Inside diameter | 12 mm |
| Connection | Contact screw with socket for 4 mm safety jacks |
How it is used
In an electrolysis or electrochemical cell set-up the electrode has to stay firmly in place in the electrolyte while a lead carries current to or from it. The Electrode Connector does both jobs: the round electrode is pushed into the plastic body and clamped by the contact screw, and a 4 mm safety lead plugs into the socket on that same screw. Because the body is acid-resistant plastic, splashes of dilute acid or salt solution do not attack it.
A set of connectors lets students change between electrodes of different materials without rewiring the circuit, which saves time when comparing electrolysis products or the voltages of simple cells.

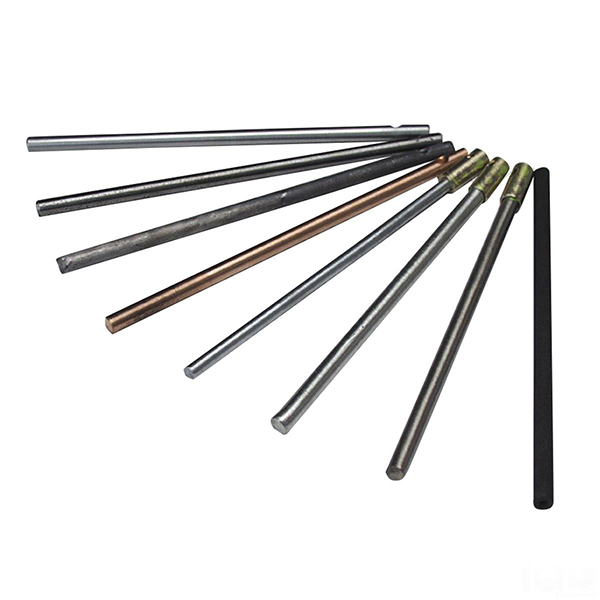

- Slide the round electrode, up to 7.5 mm in diameter, into the connector.
- Tighten the contact screw so it grips the electrode and makes electrical contact.
- Plug a 4 mm safety lead into the socket on the contact screw.
- Lower the electrode into the electrolyte and connect the other end of the lead to the power supply or meter.
Key features
- Acid-resistant plastic body suited to work with dilute acids and salt solutions
- Accepts round electrodes up to 7.5 mm in diameter
- Outside diameter 25 mm and inside diameter 12 mm
- Contact screw that clamps the electrode and carries the current
- Socket for 4 mm safety jacks, so shrouded laboratory leads can be used
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Electrode Connector at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrolysis products
- Electrolysis Cells (EL-E-10982)
- Universal Electrode Holder (EL-E-10984)
- Fruit Clock (EL-E-10981)
- Daniell Cell (EL-E-10985)
- Salt Bridge (EL-E-10980)
- Simple Cell, Student Kit (EL-E-10979)
The full range is in the Electrolysis section of the Chemistry Lab range.
Frequently asked questions
Which electrodes fit the Electrode Connector?
Round (rod) electrodes up to 7.5 mm in diameter. The electrode is held by the contact screw, which also makes the electrical connection.
What leads can be connected to it?
The contact screw carries a socket for 4 mm safety jacks, so standard 4 mm laboratory leads plug straight in.
What is the price of the Electrode Connector?
Prices are not published on the website. Add the Electrode Connector to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-E-10983 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Electrode Connector?
Yes. Lab Exports manufactures the Electrode Connector at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-E-10983.
