Acrylic Lens and Prism
Product Code : EL-LAO-10345
Quick answer: The Acrylic Lens and Prism set is a group of seven acrylic optical shapes used with a light ray source to show refraction, focusing by lenses and deviation by prisms. Frosted surfaces make the path of light inside each piece visible. Each piece is about 70 mm long and 25 mm thick. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Item | Specification |
|---|---|
| Set contents | 7 different lenses and prisms |
| Material | Acrylic |
| Surface | Frosted, to reveal the path of light |
| Size of each piece | Approx. 70 mm (2.75 in) long x 25 mm (1 in) thick |
| Packing | Cardboard box with teacher's guide |
How the set is used in teaching
Laid flat on a sheet of paper in a darkened room, each acrylic shape is lit by a narrow beam or several parallel rays from a ray box. The frosted face scatters a little of the light, so students can see the ray bend on entering and leaving the block instead of only marking where it emerges. Convex shapes bring parallel rays to a focus, concave shapes spread them, and the prisms deviate the beam and, with white light, disperse it into colours.
Tracing the rays around each piece lets students measure angles of incidence and refraction and apply Snell's law, n = sin i / sin r, or locate the focal point of a lens shape.
- Place a piece on white paper and outline it with a pencil.
- Direct a single ray or parallel rays from a ray box at the piece.
- Mark the incident and emergent rays with dots, then remove the piece and join them.
- Measure the angles with a protractor, or find where parallel rays converge for the convex shapes.
Key features
- Seven lens and prism shapes in one set for a range of optics lessons.
- Frosted surfaces make the light path inside each piece visible.
- Uniform size of about 70 mm x 25 mm for easy handling on the bench.
- Teacher's guide included to help plan classroom demonstrations.
- Packed in a cardboard box for storage between classes.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the acrylic lens and prism set at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Light and Optics products

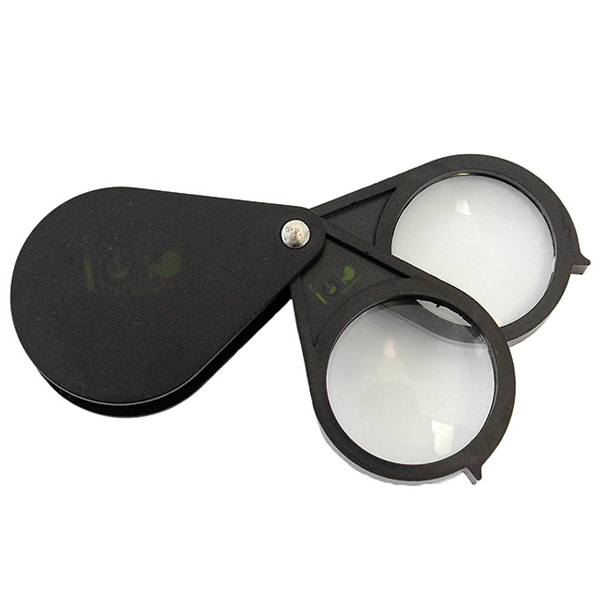

- Double Lens Folding Pocket Magnifier (EL-LAO-10344)
- Plastic Handheld Magnifier (EL-LAO-10346)
- Hand Lens with Black Plastic Case (EL-LAO-10343)
- Glass Lens Demonstration (EL-LAO-10347)
- Hand Lens with White Plastic Handle (EL-LAO-10342)
- Single Lens Eye Loupe (EL-LAO-10348)
The full range is in the Light and Optics section of the Physics Lab range.
Frequently asked questions
What does the acrylic lens and prism set demonstrate?
It shows refraction, the converging and diverging action of lenses, and deviation of light by prisms, with the frosted surfaces making the ray path visible.
Is a light source included with the acrylic lens and prism set?
The set is listed with the seven pieces and a teacher's guide only. A ray box or other narrow-beam light source is used alongside it.
What is the price of the acrylic lens and prism set?
Prices are not published on the website. Add the acrylic lens and prism set to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-LAO-10345 and the quantity, to receive a quotation.
Does Lab Exports manufacture the acrylic lens and prism set?
Yes. Lab Exports manufactures the acrylic lens and prism set at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-LAO-10345.
