Demonstration Meter Interscale
Product Code : EL-LM-10389

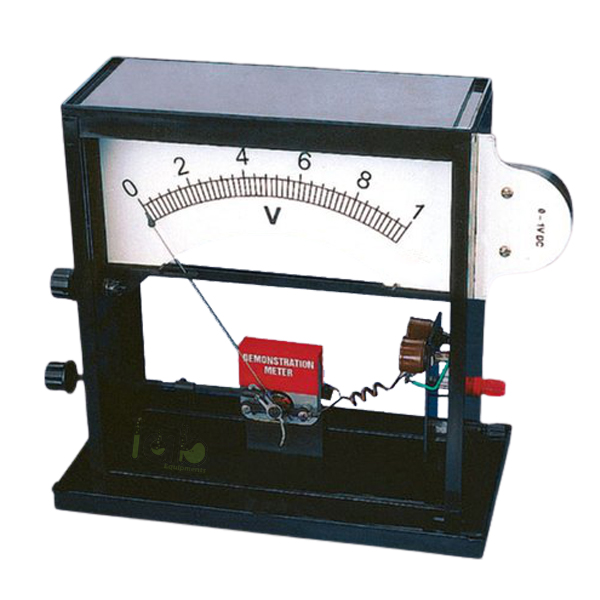

Quick answer: The Demonstration Meter Interscale is a large classroom meter with a 200 mm scale that teachers use to show meter readings and the principles of electrical measurement to a whole class. Its basic movement is 5 mA - 100 mV FSD with an accuracy of ±2.5% FSD. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Value |
|---|---|
| Basic movement | 5 mA - 100 mV FSD |
| Accuracy | ±2.5% of full-scale deflection |
| Scale length | 200 mm (approx.) |
| Dimensions | 300 x 150 x 300 mm |
| Weight | 2 kg (approx.) |
How the meter is used in teaching
A demonstration meter is read by the whole class at once, so its scale has to be large. The 200 mm scale of the interscale meter lets the teacher run a circuit at the front bench while students record the readings from their seats.
The stated movement rating also makes the meter a worked example for converting a galvanometer into an ammeter or voltmeter. Full-scale deflection at 5 mA with 100 mV across the movement means a movement resistance of Rm = V/I = 0.1/0.005 = 20 ohm.
- Write the movement data on the board: Ig = 5 mA, Vg = 100 mV, so Rm = 20 ohm.
- For an ammeter range I, calculate the parallel shunt S = Ig x Rm / (I - Ig); for 1 A this is about 0.1 ohm.
- For a voltmeter range V, calculate the series resistance R = V/Ig - Rm; for 10 V this is 1980 ohm.
- Compare the calculated values with the meter readings taken during the demonstration.
Key features
- Scale length of about 200 mm, readable from a distance in a classroom.
- Accuracy of ±2.5% of full-scale deflection.
- Basic movement of 5 mA - 100 mV FSD, a known rating for shunt and multiplier calculations.
- Overall dimensions of 300 x 150 x 300 mm.
- Weight of about 2 kg, so it stands firmly on a demonstration bench.
Documentation and supply
Installation instructions and a manual are supplied with the meter. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the interscale demonstration meter at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
