Universal Force Table
Product Code : EL-AM-10333

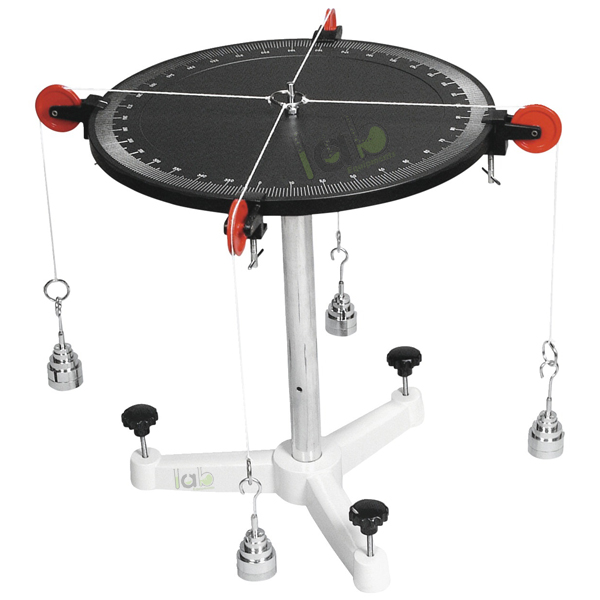

Quick answer: The Universal Force Table is a 40 cm circular aluminium disc graduated from 0 to 360 degrees, with levelling screws, four sliding clamp pulleys, a central ring and string, and four sets of nine slotted weights with a 50 g hanger each. It is used to verify the triangle, parallelogram and polygon laws of forces. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Component | Specification |
|---|---|
| Disc | Circular aluminium, 40 cm, graduated 0-360 degrees |
| Pulleys | Four, sliding clamp type |
| Centre | Central ring with string |
| Weights | Four sets, each of nine slotted weights and one 50 g hanger |
| Levelling | Levelling screws |
How the force table experiment is done
On a force table, each string runs from the central ring over a pulley clamped at a chosen angle on the rim and carries a hanger with slotted weights, so every force is known in size (the weight hung) and direction (the angle on the 360 degree scale). When the forces balance, the ring settles at the centre of the table and their vector sum is zero.
- Level the table with the levelling screws.
- Clamp two pulleys at chosen angles and hang known loads, then find by trial the angle and load on a third pulley that bring the ring to the centre.
- Record each load and angle from the graduated rim.
- Draw the forces to scale: the first two form a parallelogram whose diagonal equals and opposes the third, and the three form a closed triangle.
- Add the fourth pulley and repeat to show that four forces in equilibrium form a closed polygon.
Resolving each force into components, F cos theta and F sin theta, and adding them gives a numerical check that both sums are close to zero, with friction in the pulleys as the main source of error.
Key features
- 40 cm circular aluminium disc graduated 0-360 degrees for reading force directions
- Four sliding clamp pulleys that can be set anywhere on the rim
- Central ring and string for joining the forces at one point
- Four sets of nine slotted weights, each with a 50 g hanger
- Levelling screws to set the table horizontal
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the force table at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Applied Mechanics products
- Moments Disc Apparatus (EL-AM-10332)
- Wheel and Axle, on Stand (EL-AM-10334)
- Fletcher Trolley (EL-AM-10331)
- Maxwell Wheel (EL-AM-10335)
- Parallelogram Force Apparatus (EL-AM-10330)
- Whirling Table (EL-AM-10336)
The full range is in the Applied Mechanics section of the Physics Lab range.
Frequently asked questions
What laws does the Universal Force Table verify?
The triangle law, the parallelogram law and the polygon law of forces.
What weights come with the force table?
Four sets, each containing nine slotted weights and one 50 g hanger.
How many pulleys does the Universal Force Table have?
Four sliding clamp pulleys, which can be fixed at any angle on the graduated rim.
What is the price of the force table?
Prices are not published on the website. Add the force table to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-AM-10333 and the quantity, to receive a quotation.
Does Lab Exports manufacture the force table?
Yes. Lab Exports manufactures the force table at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-AM-10333.
Request a quote
Email [email protected] with the house code EL-AM-10333 and the quantity, or add the force table to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
