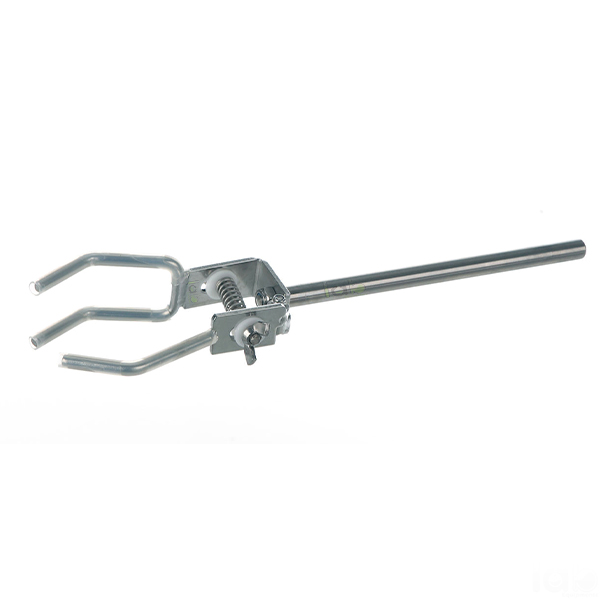

Retort Clamp Special 3-Prongs, 18/10-Stainless Steel
Product Code : EL-RC-10822
Quick answer: The special 3-prong retort clamp is made of 18/10 stainless steel with silicone-coated fingers, for holding round bottom flasks and other glassware firmly on a retort stand or support frame without marking the glass. It is 190 mm long with a 12 mm rod and comes in 0-80 mm and 0-120 mm clamping ranges. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Item | Specification |
|---|---|
| Material | 18/10 stainless steel |
| Fingers | 3 prongs, silicone coated |
| Length | 190 mm |
| Rod diameter | 12 mm |
| Variant 1 | Clamping range 0-80 mm |
| Variant 2 | Clamping range 0-120 mm |
How it is used
Stainless steel clamps are used where apparatus stays assembled for long periods or is exposed to heat, moisture and corrosive vapours, as in distillation rigs, reflux set-ups and support frames. The 18/10 grade keeps its finish, and the silicone coating on the prongs grips the glass without scratching it and copes with warm glassware better than a plain rubber lining.
The 190 mm length gives room to reach glassware set back from the stand rod. Choose the 0-80 mm clamp for flask necks, condensers and smaller round bottom flasks, and the 0-120 mm clamp for larger flask bodies.
- Fix the 12 mm rod in a bosshead on the stand or frame.
- Open the prongs and position the flask neck or body between them.
- Close the prongs evenly until the silicone-coated fingers hold the glass firmly.
- Recheck the grip once the rest of the apparatus is connected.
Key features
- Three silicone-coated prongs for a secure, non-marring grip
- 18/10 stainless steel for corrosion resistance
- 190 mm length with a 12 mm rod
- Two clamping ranges: 0-80 mm and 0-120 mm
- Suited to round bottom flasks, condensers and long-standing set-ups
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the stainless steel 3-prong retort clamp at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Retort Clamp products

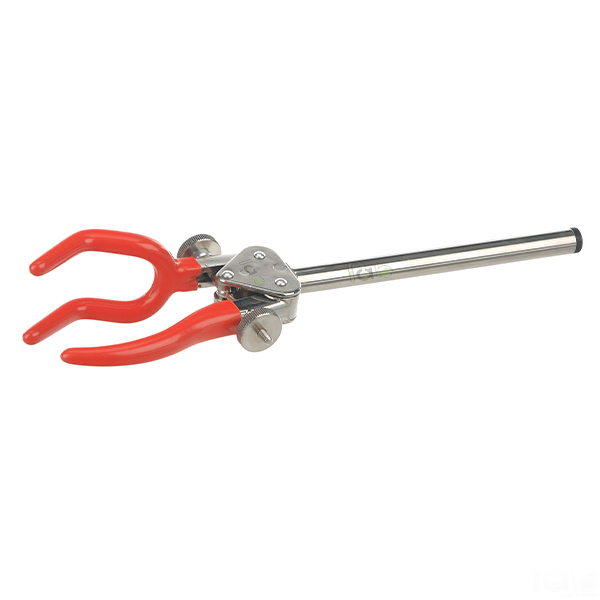

- Retort Clamp 3 Prongs (EL-RC-10821)

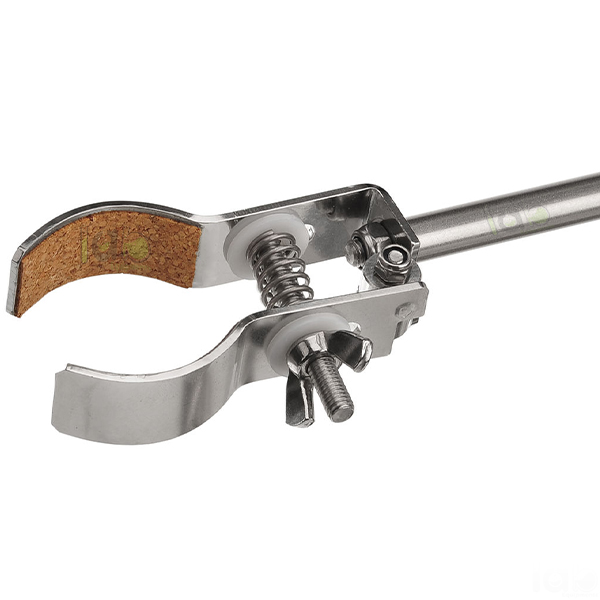

- Retort Clamp Standard 18/10 Stainless Steel (EL-RC-10823)

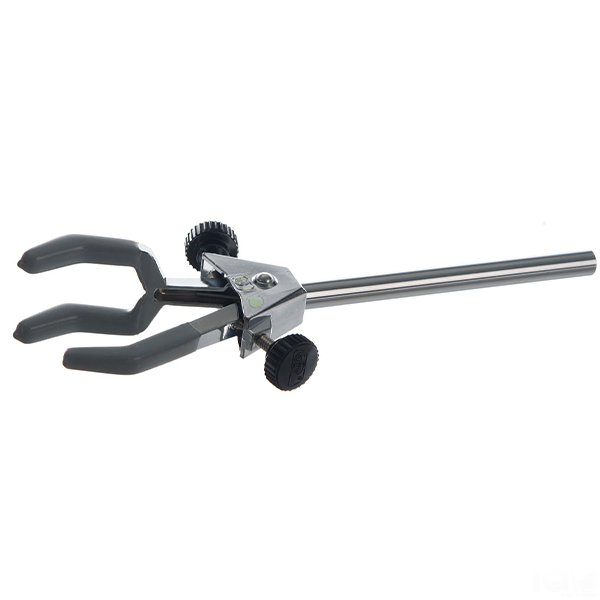

- 3 Finger Clamps with Shaft (EL-RC-10820)

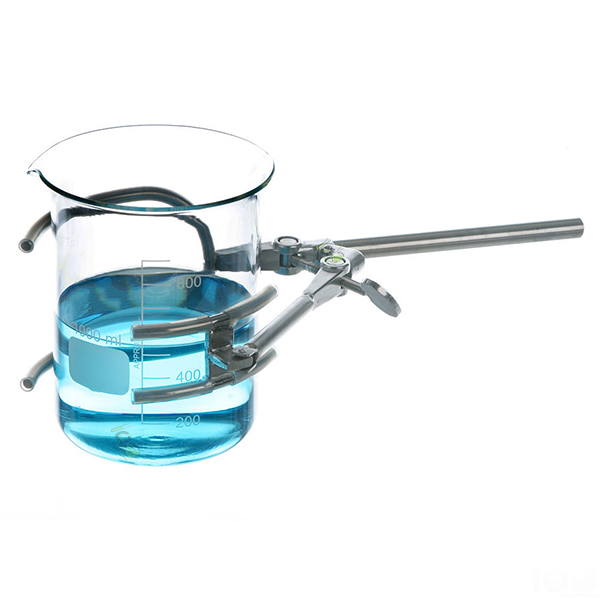

- Retort Clamp Special 4-Prongs (EL-RC-10819)

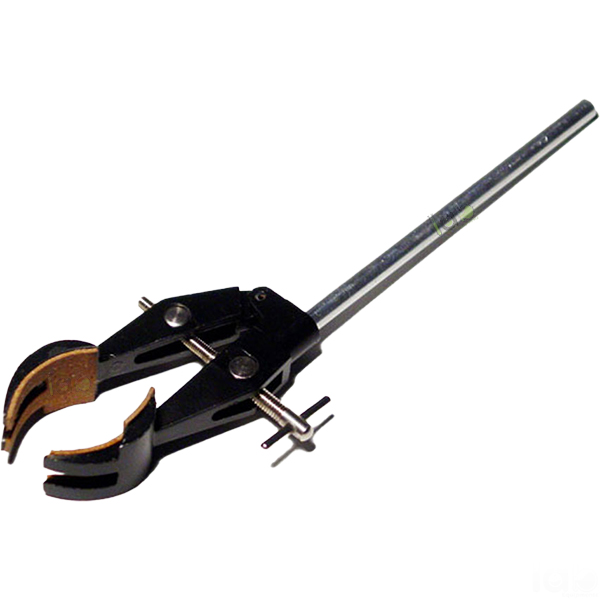

- Retort Clamp with Bosshead, Cork Jaws (EL-RC-10818)

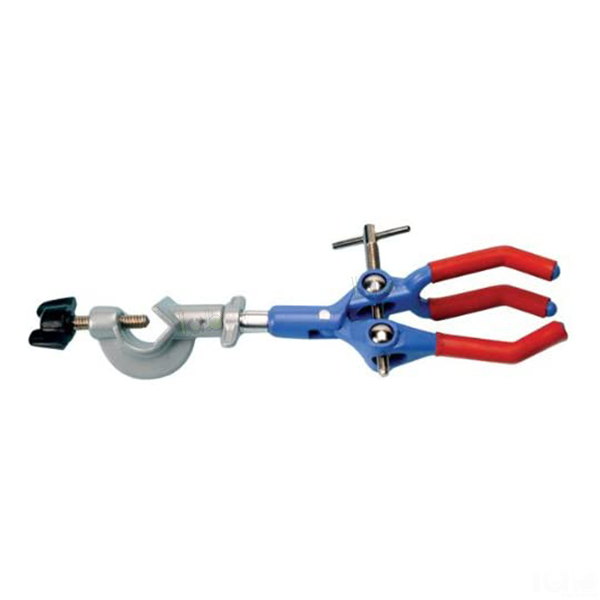

- Retort Clamp with Bosshead, Rubber Jaws (EL-RC-10817)
The full range is in the Retort Clamp section of the Laboratory Equipment range.
Frequently asked questions
Which clamping ranges are available for the stainless steel 3-prong clamp?
0-80 mm and 0-120 mm, both 190 mm long with a 12 mm rod.
How does it differ from the special 4-prong clamp?
The 3-prong clamp holds glassware at three points; the special 4-prong clamp in the same range grips from four sides and also comes in a 50-150 mm range for larger items.
Why are the prongs silicone coated?
Silicone grips glass firmly without scratching or marking it.
What is the price of the stainless steel 3-prong retort clamp?
Prices are not published on the website. Add the stainless steel 3-prong retort clamp to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-RC-10822 and the quantity, to receive a quotation.
Does Lab Exports manufacture the stainless steel 3-prong retort clamp?
Yes. Lab Exports manufactures the stainless steel 3-prong retort clamp at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-RC-10822.
Request a quote
Email [email protected] with the house code EL-RC-10822 and the quantity, or add the stainless steel 3-prong retort clamp to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
