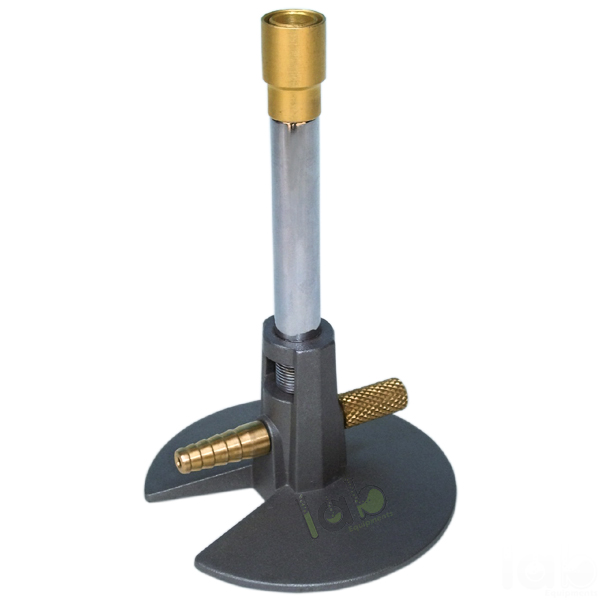

Burner With Flame Stabilizer
Product Code : EL-B-10664
Quick answer: The Burner with Flame Stabilizer is a laboratory gas burner whose stabilizer top releases a ring of gas at low velocity around the main outlet. This ring burns as a pilot that holds the principal flame steady and cuts flicker, so heating is more even. A needle valve adjusts the flame. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Burner with flame stabilizer top |
| Gas control | Needle valve for easy flame adjustment |
| Stabilizer | Low-velocity annular ring that acts as a pilot to steady the flame |
How the flame stabilizer works
A gas flame sits where the speed of the gas-air mixture leaving the tube matches the speed at which the flame burns back into it. If the flow rises, or a draught crosses the bench, the flame can lift off the tube, flicker or blow out. The stabilizer top on this burner divides the outlet so that a small part of the gas leaves through an annular ring at low velocity. That ring burns as a pilot flame around the base of the main flame and keeps re-lighting it, so the principal flame stays anchored to the top of the burner.
The result is a steadier flame that gives more consistent heating for titration warming, evaporations, boiling and routine sample preparation, and fewer interruptions when the burner is used near open windows or fume extraction.
- Connect the burner to the gas supply with suitable tubing.
- Open the needle valve slightly and light the gas at the stabilizer top.
- Adjust the needle valve until the main flame reaches the required height with the pilot ring burning evenly around it.
- Place the vessel on a tripod and gauze or a stand above the flame.
Key features
- Stabilizer top produces a steady, consistent flame.
- Annular pilot ring re-lights and anchors the main flame.
- Needle valve for easy, fine flame adjustment.
- Reduced flicker for more even heating of vessels.
- Keeps burning steadily in mild bench draughts.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Burner with Flame Stabilizer at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Burners products
- Burner Tirrill (EL-B-10663)
- Adjustable Bunsen Burner (EL-B-10665)
- Micro Bunsen Burner (EL-B-10662)
- Natural Gas Burner (EL-B-10666)
- High Temperature Burner (EL-B-10661)
- Bunsen Burners (EL-B-10667)
The full range is in the Burners section of the Laboratory Equipment range.
Frequently asked questions
What does the flame stabilizer do?
It releases a low-velocity annular ring of gas that burns as a pilot around the main flame, keeping the principal flame steady and reducing flicker.
How is the flame adjusted?
The flame height is set with the needle valve on the burner.
What is the price of the Burner with Flame Stabilizer?
Prices are not published on the website. Add the Burner with Flame Stabilizer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10664 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Burner with Flame Stabilizer?
Yes. Lab Exports manufactures the Burner with Flame Stabilizer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10664.
Request a quote
Email [email protected] with the house code EL-B-10664 and the quantity, or add the Burner with Flame Stabilizer to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
