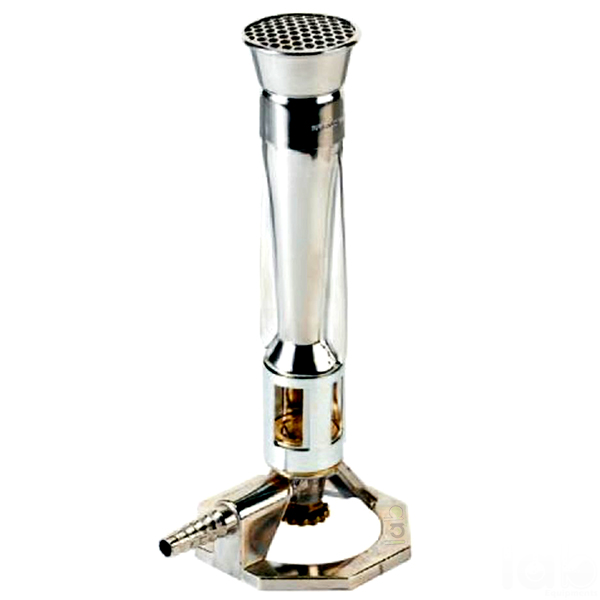

Burner, High-Temperature Natural Gas
Product Code : EL-B-10675
Quick answer: The high-temperature natural gas burner is a Meker-type laboratory burner that gives a very hot, evenly spread flame, hot enough for heating platinum wire and strongly heating crucibles. A honeycombed monel grid on top of a one-piece chrome-plated venturi tube breaks the flame into many small blue cones. It stands 8 1/2 inches high. Lab Exports manufactures it in Delhi for school, college, research and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Meker-type burner |
| Gas | Natural gas |
| Overall height | 8 1/2 inches |
| Venturi tube | One-piece, chrome plated |
| Cap | Honeycombed monel (nickel-copper alloy) grid |
| Flame | Many uniform blue cones |
How the Meker burner gives a hotter flame
A Bunsen flame has one large inner cone, and the hottest zone is a small region just above its tip. The Meker design widens the top of the venturi tube and covers it with a metal grid. Air drawn into the wide venturi mixes thoroughly with the gas, and the grid splits the mixture into many small jets, each burning as its own short blue cone. The whole area above the grid is then close to the hottest part of the flame, so the burner delivers a flat, uniformly hot flame across its width.
The honeycombed grid on this burner is made of monel, a nickel-copper alloy that withstands the flame without scaling quickly. The result is a flame suitable for heating platinum wire, igniting precipitates in crucibles and other work that needs more heat than an ordinary Bunsen burner can supply.
- Connect the burner to the natural gas supply with suitable burner tubing.
- Open the gas and light the mixture just above the grid.
- Adjust the gas until a bed of small, even blue cones covers the grid.
- Place the crucible on a pipe-clay triangle or the wire in the flame just above the tips of the cones.
Key features
- Honeycombed monel grid forms many uniform blue cones.
- One-piece chrome-plated venturi tube for thorough gas-air mixing.
- Very hot flame suitable for heating platinum wire.
- Uniform heat across the full width of the grid.
- 8 1/2 inch overall height for standard bench use.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the high-temperature natural gas burner at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
