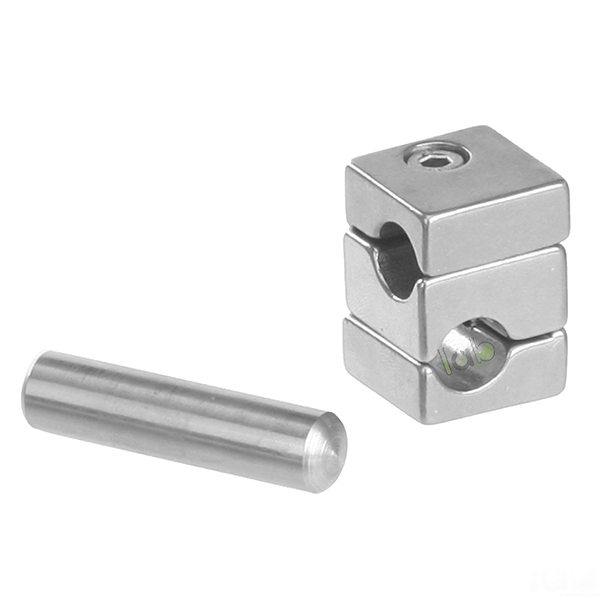

Squared Bosshead
Product Code : EL-B-10828
Quick answer: The Squared Bosshead is an 18/10 stainless steel connector with hexagon socket screws, made for 12-13 mm square-section bars held at 90 degrees. In combination with a 12 mm x 50 mm connection bar, the angle between two members can be adjusted anywhere from 0 to 360 degrees for custom support rigs. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Item | Specification |
|---|---|
| Material | 18/10 stainless steel |
| Screws | Hexagon socket screws |
| Square jaws | 12-13 x 12-13 mm, at 90 degrees |
| Angled version | 12 mm diameter, angle adjustable 0-360 degrees |
| Connection bar | d = 12 mm x 50 mm |
State whether the 12 mm x 50 mm connection bar is required when asking for a quotation.
How the squared bosshead is used
Round rods can rotate in a bosshead when an off-centre load twists them. A square-section bar cannot turn in a square jaw, so a squared bosshead keeps its orientation even when a heavy clamp or piece of apparatus hangs to one side. This suits rigid frames and custom support rigs rather than a simple retort stand.
The hexagon socket screws are tightened with an Allen key, which gives a firm fixing and leaves no projecting wing to catch on tubing or leads. On its own the bosshead holds two square members at 90 degrees. Combined with the 12 mm x 50 mm connection bar, the joint can be set at any angle from 0 to 360 degrees, so inclined members and angled braces can be built into the frame.
- Fit the bosshead onto the first square bar and tighten its hexagon socket screw with an Allen key.
- Insert the second bar, or the 12 mm connection bar for an angled joint.
- Set the required angle when using the connection bar.
- Tighten the remaining screw and check that the joint is rigid.
Key features
- 18/10 stainless steel construction
- Hexagon socket screws for a firm, flush fixing
- Square jaws of 12-13 x 12-13 mm that stop the bar turning
- 90 degree joint as standard
- Angle adjustable from 0 to 360 degrees with a 12 mm x 50 mm connection bar
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the squared bosshead at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Bosshead products
- Safety Screw 18/10 Stainless Steel (EL-B-10827)
- Three Angle Bosshead (EL-B-10829)

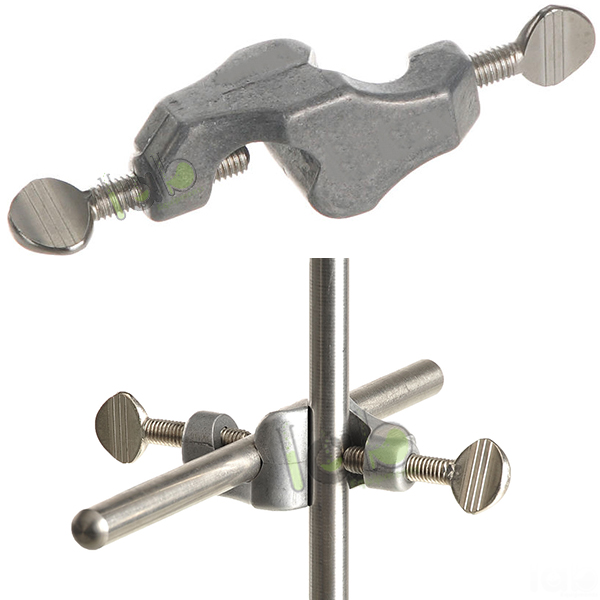

- Bosshead, Coated Aluminium, Black (EL-B-10826)
- Hook Bosshead, 18/10 Stainless Steel (EL-B-10830)
- Bosshead, Metal (EL-B-10825)
- Bosshead for Frames, Malleable Cast Iron, Chromium Plated (EL-B-10831)
The full range is in the Bosshead section of the Laboratory Equipment range.
Frequently asked questions
What bar size does the squared bosshead take?
The square jaws take bars of 12-13 x 12-13 mm, and the angled arrangement uses a 12 mm diameter connection bar.
Can the squared bosshead be set to angles other than 90 degrees?
Yes. In combination with the 12 mm x 50 mm connection bar, the angle can be adjusted from 0 to 360 degrees.
What is the price of the squared bosshead?
Prices are not published on the website. Add the squared bosshead to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10828 and the quantity, to receive a quotation.
Does Lab Exports manufacture the squared bosshead?
Yes. Lab Exports manufactures the squared bosshead at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10828.
Request a quote
Email [email protected] with the house code EL-B-10828 and the quantity, or add the squared bosshead to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
