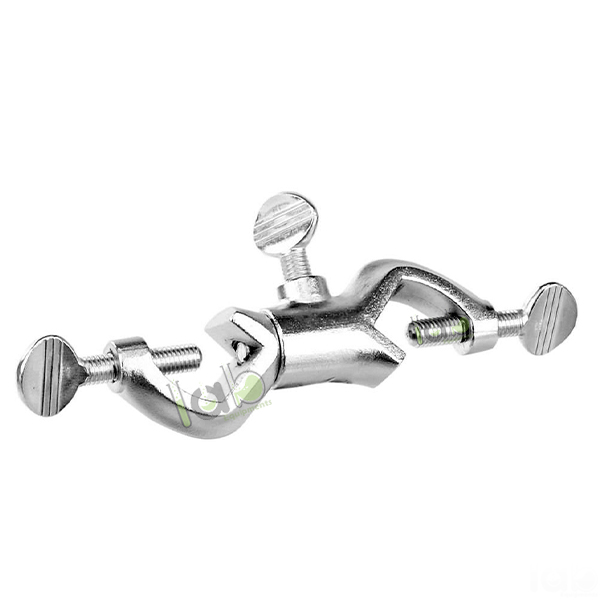

Bosshead Swivel Type, Malleable Cast Iron, Chromium Plated
Product Code : EL-B-10833
Quick answer: The swivel-type bosshead in chromium-plated malleable cast iron joins two retort stand rods at any angle through a full 0 to 360 degree swivel, for tilted condensers, angled clamps and inclined supports. It has a thumb screw for tool-free tightening, a 16.5 mm clamping diameter and an 8 mm thread. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Item | Specification |
|---|---|
| Material | Malleable (tempered) cast iron, chromium plated |
| Screw type | Thumb screw |
| Clamping diameter (d) | 16.5 mm |
| Angle | 0-360 degrees, full swivel |
| Thread | 8 mm |
How the swivel bosshead is used
Many set-ups need a clamp that is neither vertical nor horizontal. A Liebig condenser slopes downward from the still head in a distillation, a test tube for heating is held at an angle, and a gas-collection train often needs one arm set at an awkward angle. The two halves of this bosshead rotate through a full 360 degrees relative to each other, so the second rod can be locked at exactly the angle the apparatus needs.
The body is malleable cast iron, heat-treated so it is tough rather than brittle, and chromium plated for a bright surface that resists rust. The thumb screw is tightened by hand, so the angle can be changed during a practical without looking for a spanner or key.
- Fix one half of the bosshead to the stand rod with the thumb screw.
- Insert the clamp shank or cross rod into the other half.
- Rotate the swivel to the angle the apparatus needs.
- Tighten firmly and check the joint before loading glassware.
Key features
- Full 0 to 360 degree swivel between the two rods
- Thumb screw for quick, tool-free tightening
- Malleable cast iron body, chromium plated
- 16.5 mm clamping diameter
- 8 mm thread
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the cast iron swivel bosshead at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Bosshead products
- Bosshead for Frames, 18/10 Stainless Steel (EL-B-10832)
- Bosshead Swivel Type, 18/10 Stainless Steel (EL-B-10834)

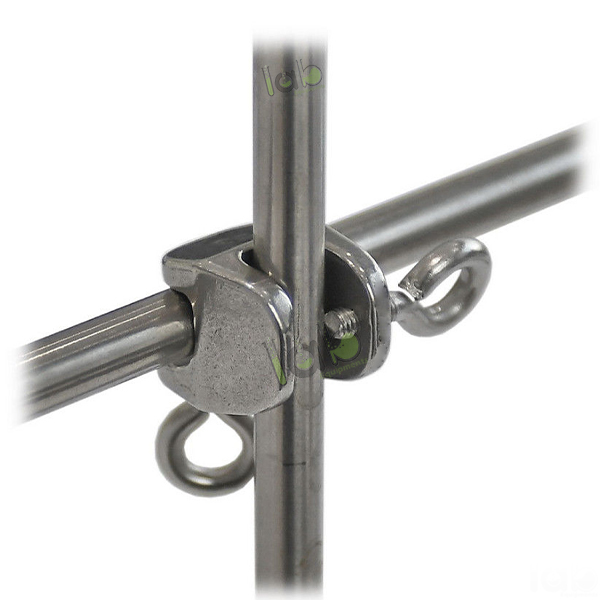

- Bosshead for Frames, Malleable Cast Iron, Chromium Plated (EL-B-10831)
- Bosshead (EL-B-10835)
- Hook Bosshead, 18/10 Stainless Steel (EL-B-10830)
- Bosshead Cross Type Malleable Cast Iron Chromium Plated (EL-B-10836)
The full range is in the Bosshead section of the Laboratory Equipment range.
Frequently asked questions
How far does the swivel bosshead rotate?
It swivels through the full 0 to 360 degrees, so the two rods can be set at any angle.
What is this swivel bosshead made of?
It is malleable (tempered) cast iron with a chromium-plated finish.
What is the price of the cast iron swivel bosshead?
Prices are not published on the website. Add the cast iron swivel bosshead to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10833 and the quantity, to receive a quotation.
Does Lab Exports manufacture the cast iron swivel bosshead?
Yes. Lab Exports manufactures the cast iron swivel bosshead at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10833.
