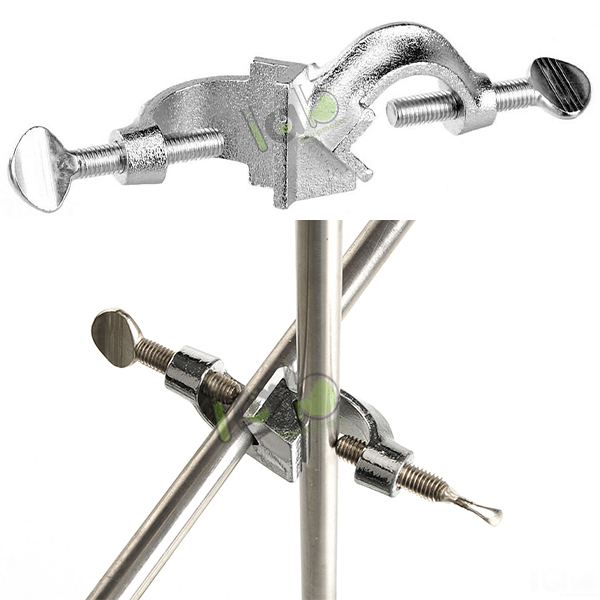

Bosshead Malleable Cast Iron Chromium Plated
Product Code : EL-B-10839
Quick answer: The chromium-plated malleable cast iron bosshead joins stand rods at a fixed 90 degree angle and comes in three clamping diameters, 16.5 mm, 20 mm and 36 mm, so it can be matched to light stand rods or heavy frame bars. All sizes have an 8 mm thread and take a heart-type safety screw or a thumb screw. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Variant | Specification |
|---|---|
| Material | Malleable (tempered) cast iron, chromium plated |
| Clamping diameter, size 1 | 16.5 mm |
| Clamping diameter, size 2 | 20.0 mm |
| Clamping diameter, size 3 | 36.0 mm |
| Angle | 90 degrees, all sizes |
| Thread | 8 mm, all sizes |
| Screw options | Safety screw (heart type) or thumb screw |
How the cast iron bosshead is used
The three sizes are the point of this bosshead. The 16.5 mm size is for ordinary stand rods, the 20 mm size for thicker support rods and the 36 mm size for heavy frame bars, so one design can run through a whole laboratory from student stands to fixed rigs. Every size joins its rods at a fixed 90 degree angle.
Malleable cast iron is heat-treated after casting, so it is tough and slightly ductile rather than brittle, and it holds a tight screw without cracking. The chromium plating keeps the surface bright and resists rust on damp benches. The thumb screw gives quick adjustment by hand; the heart-type safety screw is the alternative fastening.
- Pick the size that matches the rod: 16.5, 20 or 36 mm.
- Place the bosshead on the upright and tighten it at the working height.
- Insert the second rod or clamp shank at right angles and tighten.
- Check the joint before loading.
Key features
- Three clamping diameters: 16.5 mm, 20.0 mm and 36.0 mm
- Fixed 90 degree joint on every size
- Malleable cast iron, chromium plated
- 8 mm thread throughout
- Heart-type safety screw or thumb screw
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the cast iron bosshead at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Bosshead products

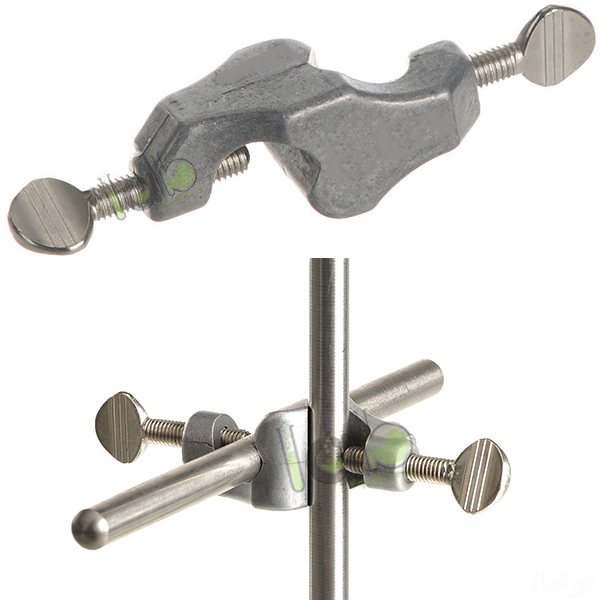

- Bosshead Aluminium (EL-B-10838)

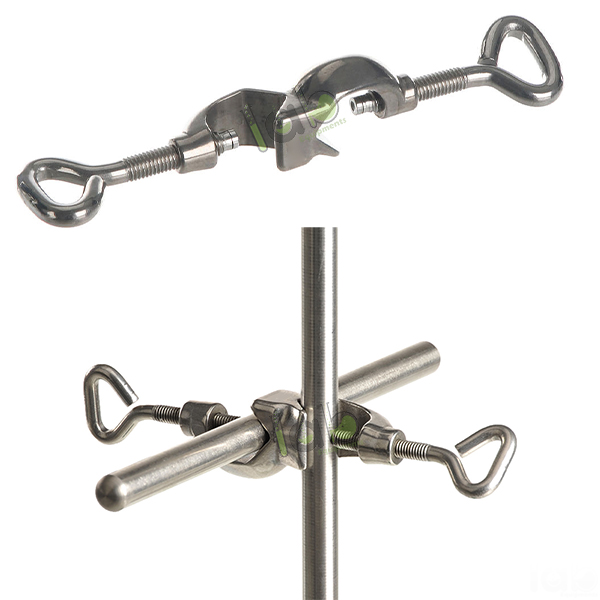

- Bossheads 18/10 Stainless Steel (EL-B-10840)
- Bosshead Cross Type 18/10 Stainless Steel (EL-B-10837)
- Bosshead Cross Type Malleable Cast Iron Chromium Plated (EL-B-10836)
- Bosshead (EL-B-10835)
- Bosshead Swivel Type, 18/10 Stainless Steel (EL-B-10834)
The full range is in the Bosshead section of the Laboratory Equipment range.
Frequently asked questions
What sizes does the cast iron bosshead come in?
It is available with clamping diameters of 16.5 mm, 20.0 mm and 36.0 mm, all with an 8 mm thread.
Which screws are available for the cast iron bosshead?
A safety screw of heart type or a thumb screw.
What is the price of the cast iron bosshead?
Prices are not published on the website. Add the cast iron bosshead to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10839 and the quantity, to receive a quotation.
Does Lab Exports manufacture the cast iron bosshead?
Yes. Lab Exports manufactures the cast iron bosshead at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10839.
