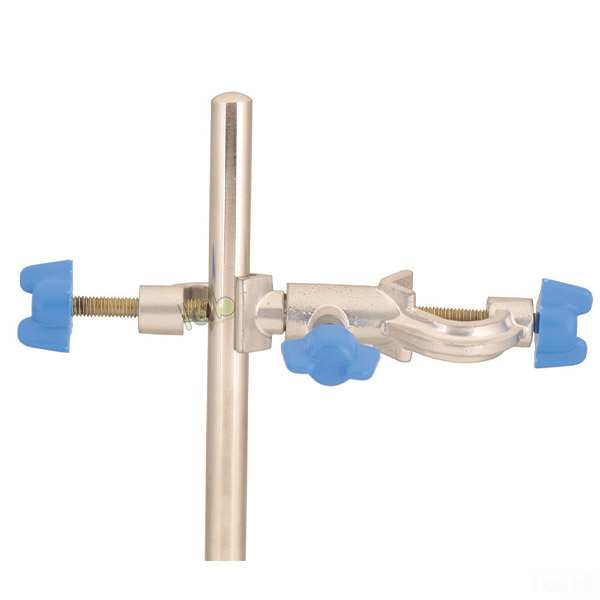

Bosshead, Swivel
Product Code : EL-B-10824
Quick answer: The swivel bosshead is a zinc die-cast connector that joins two support rods of up to 16 mm diameter and lets them be set at any angle to each other. It is used on retort stands and support frames to mount clamps, rings and cross rods for chemistry and physics set-ups. Lab Exports manufactures it in Delhi for school, college and research laboratories.
Specifications
| Item | Specification |
|---|---|
| Material | Zinc, die-cast |
| Rod capacity | Up to 16 mm diameter |
| Rods held | Two |
| Action | Swivel; the two rods can be fitted at any angle |
| Pack | Pack of 25 |
How the swivel bosshead is used
A bosshead is the joint of a laboratory support system. One side grips the upright rod of a retort stand or frame, the other side grips a clamp shank or a cross rod, and a screw on each side locks the rod in place. On a fixed bosshead the two rods cross at a right angle; the swivel type lets the second rod be turned to any angle before it is locked.
That freedom helps whenever apparatus has to be tilted: holding a condenser at a slope for distillation, angling a test tube over a burner, setting up an inclined support in a physics practical, or bringing a clamp in from an awkward direction on a crowded frame. The zinc die-cast body is compact and takes rods up to 16 mm in diameter.
- Slide one side of the bosshead onto the stand rod and tighten its screw at the required height.
- Pass the clamp shank or cross rod through the other side.
- Turn the second rod to the angle needed.
- Tighten the screws and check that the joint holds before loading any glassware.
Key features
- Zinc die-cast body
- Grips rods up to 16 mm diameter
- Swivel action sets the two rods at any angle
- Joins two rods in one fitting
- Supplied in packs of 25 for class sets of stands
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the swivel bosshead at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Bosshead products
- Bosshead, Metal (EL-B-10825)
- Bosshead, Coated Aluminium, Black (EL-B-10826)
- Safety Screw 18/10 Stainless Steel (EL-B-10827)
- Squared Bosshead (EL-B-10828)
- Three Angle Bosshead (EL-B-10829)
- Hook Bosshead, 18/10 Stainless Steel (EL-B-10830)
The full range is in the Bosshead section of the Laboratory Equipment range.
Frequently asked questions
What rod size does the swivel bosshead take?
It holds rods up to 16 mm in diameter.
How is a swivel bosshead different from a standard bosshead?
A standard bosshead holds two rods at right angles, while the swivel bosshead lets the two rods be fitted at any angle.
How many swivel bossheads are in a pack?
They are supplied in packs of 25.
What is the price of the swivel bosshead?
Prices are not published on the website. Add the swivel bosshead to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-B-10824 and the quantity, to receive a quotation.
Does Lab Exports manufacture the swivel bosshead?
Yes. Lab Exports manufactures the swivel bosshead at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-B-10824.
