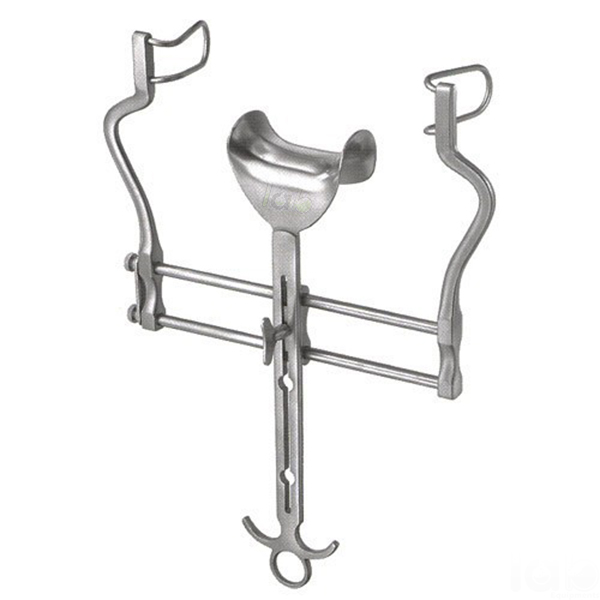

Balfour Abdominal Retractor 3 Blades
Product Code : EL-SI-10952
Quick answer: The Balfour abdominal retractor is a self-retaining retractor that holds a laparotomy or lower abdominal incision open, freeing the assistant's hands during surgery. It has two fenestrated blades of approx. 35 x 70 mm, a solid centre blade of approx. 45 x 80 mm and a locking frame that opens the wound to about 180 mm, all in martensitic steel. Lab Exports manufactures it in Delhi for hospitals, clinics and medical colleges.
Specifications
| Item | Specification |
|---|---|
| Type | Balfour abdominal retractor, self-retaining, 3 blades |
| Material | Martensitic steel, quenched (hardened), magnetic |
| Composition | 0.50% carbon, 13% chromium, 0.60-0.90% molybdenum |
| Fenestrated blades (2) | Approx. 35 x 70 mm |
| Solid centre blade | Approx. 45 x 80 mm |
| Maximum wound opening | Approx. 180 mm |
| Mechanism | Locking mechanism with hinged-arm compass (self-holding) |
How it is used
After the abdomen is opened, the two fenestrated blades are placed against the wound edges and the frame is spread along its compass until the incision is held open; the lock then keeps that width without anyone holding it. The solid centre blade is fitted at one end of the wound to hold back the bladder or other structures, giving three-point exposure of the pelvis and lower abdomen.
Retracting skin, fat, muscle and viscera in this way gives the surgeon a clear, stable operative field for open abdominal and pelvic operations, and leaves the assistant's hands free for other tasks.
Hardened martensitic chromium steel keeps its shape and spring under load and withstands repeated cleaning and steam sterilisation between operations.
Key features
- Self-retaining design with a locking mechanism, so no one has to hold the retractor
- Hinged-arm compass support for stable, adjustable spread
- Two fenestrated blades plus a solid centre blade
- Maximum wound opening of approx. 180 mm
- Martensitic steel with 13% chromium and molybdenum for repeated sterilisation and use
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Balfour retractor at its works in Laxmi Nagar, Delhi, and supplies it to hospitals, clinics and medical colleges in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Surgical Instruments products

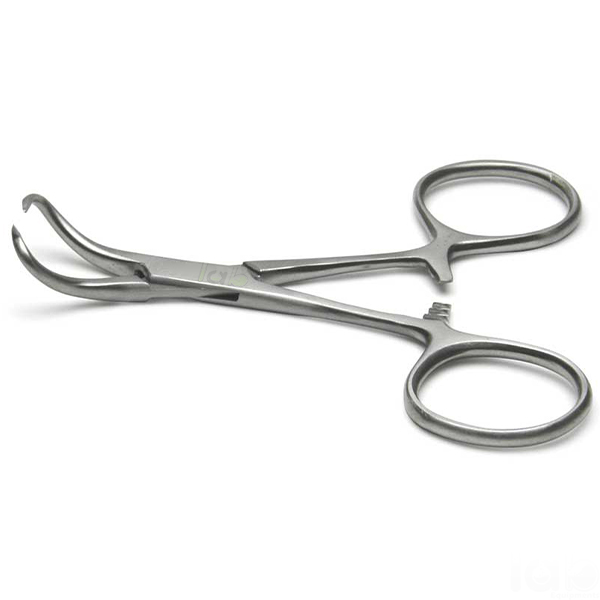

- Backhaus Towel Clamp (EL-SI-10953)

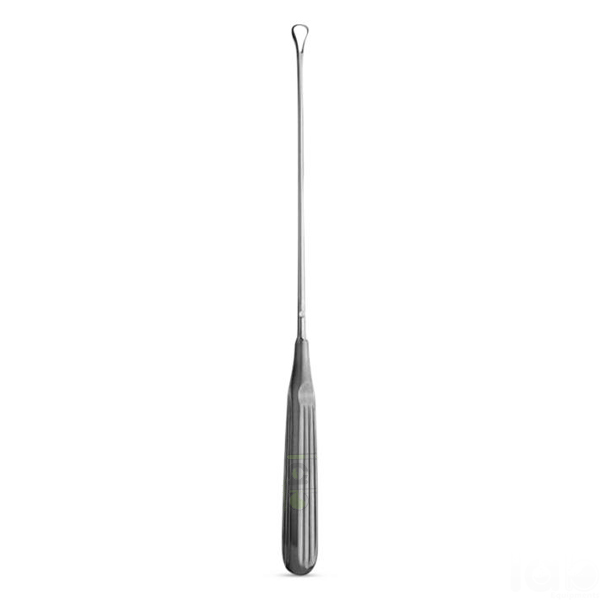

- Sims Uterine Curette Sharp (EL-SI-10954)

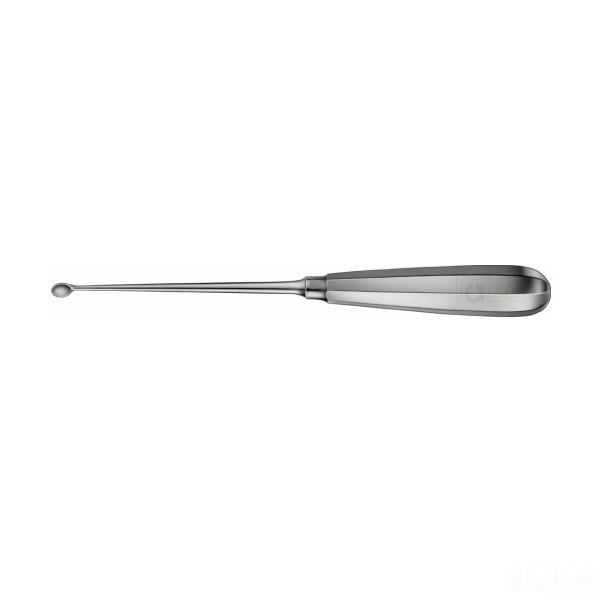

- Simon Uterine Scoop Sharp (EL-SI-10955)

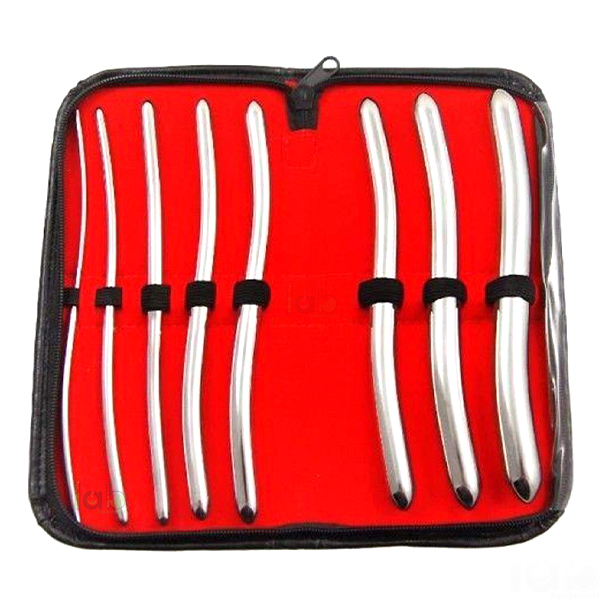

- Hegar Uterine Dilator Double Ended (EL-SI-10956)

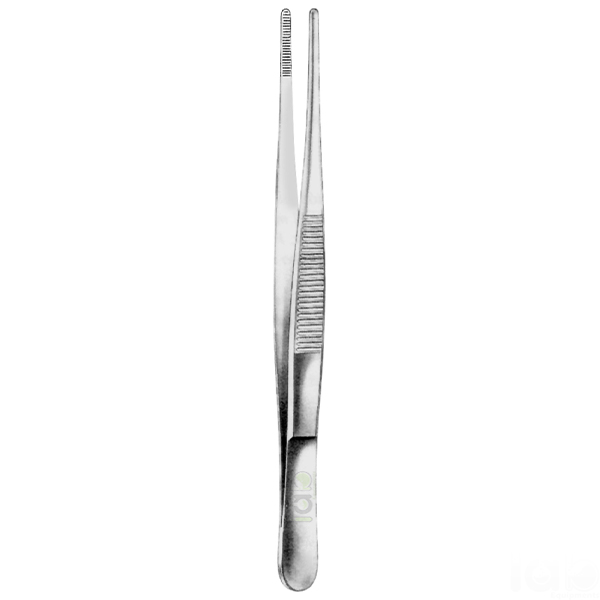

- Dressing Forceps Standard Straight (EL-SI-10957)

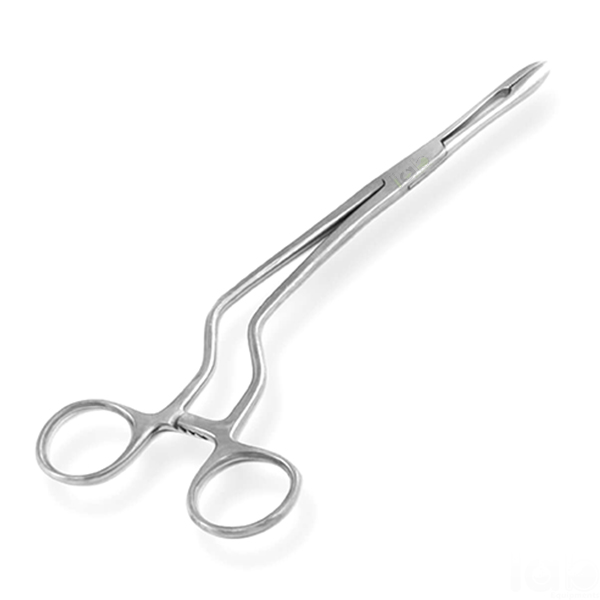

- Cheron Dressing Forceps (EL-SI-10958)
The full range is in the Surgical Instruments section of the Hospital Lab range.
Frequently asked questions
How wide does the Balfour retractor open?
The maximum wound opening is approximately 180 mm.
What are the blade sizes?
The two fenestrated blades are approx. 35 x 70 mm and the solid centre blade is approx. 45 x 80 mm.
What steel is the retractor made of?
Martensitic steel with 0.50% carbon, 13% chromium and 0.60-0.90% molybdenum, hardened by quenching.
What is the price of the Balfour retractor?
Prices are not published on the website. Add the Balfour retractor to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-SI-10952 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Balfour retractor?
Yes. Lab Exports manufactures the Balfour retractor at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-SI-10952.
Request a quote
Email [email protected] with the house code EL-SI-10952 and the quantity, or add the Balfour retractor to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
