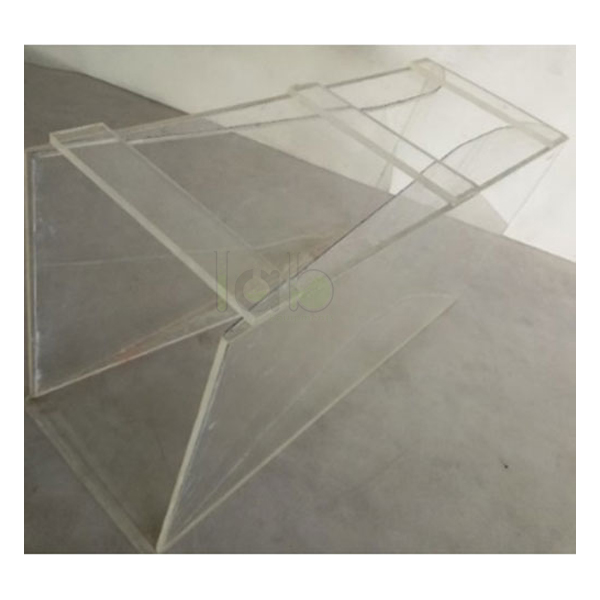

Venturi Flume
Product Code : EL-EFFCA-11066
Quick answer: The venturi flume is a clear PMMA constriction that fits the Lab Exports experimental flume. It narrows the channel to a 42 x 240 mm throat so that the flow passes through critical depth, letting students measure open-channel discharge from an upstream depth reading. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Parameter | Specification |
|---|---|
| Construction | Base plate with 2 transparent side elements and sealing lips |
| Side element material | PMMA (acrylic) |
| Narrowest cross section (W x H) | 42 x 240 mm |
| Overall dimensions (L x W x H) | 450 x 84 x 260 mm |
| Weight | Approx. 2 kg |
How the venturi flume measures flow
A venturi flume works like a venturi meter laid open: the side walls converge to a throat and the water accelerates. When the contraction is strong enough the flow becomes critical in the throat, where the depth is two-thirds of the specific energy, and the discharge then depends only on the upstream head. For a rectangular throat of width b, Q = b * sqrt(g) * (2H/3)^1.5, where H is the upstream energy head; students compare this with the rotameter reading of the flume.
- Place the venturi flume on the floor of the test section with the sealing lips against the walls.
- Set a steady discharge and note the rotameter reading.
- Measure the water depth upstream of the contraction and in the throat.
- Calculate the discharge from the upstream head and compare it with the metered value.
- Repeat over the flow range to find the discharge coefficient.
Key features
- Transparent PMMA side elements show the water surface dropping through the throat
- 42 mm wide throat in an 84 mm wide insert gives a clear contraction
- Flat base plate with sealing lips for quick fitting in the flume
- Light, at about 2 kg, for easy handling between experiments
- Demonstrates critical flow and discharge measurement in an open channel
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the venturi flume at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Experimental Flume Flow Channel Apparatus products

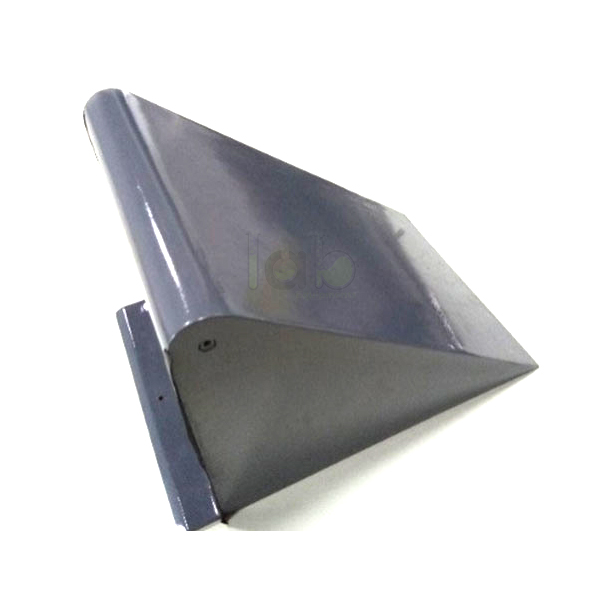

- Ogee-Crested Weir with Pressure Measurement (EL-EFFCA-11065)
- Set of Plate Weirs, Four Types (EL-EFFCA-11068)

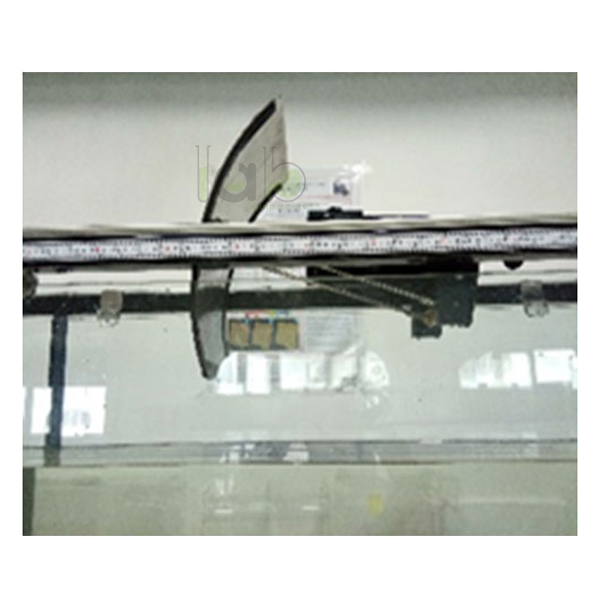

- Radial Gate (EL-EFFCA-11063)
- Extension Element of the Experimental Flume (EL-EFFCA-11069)

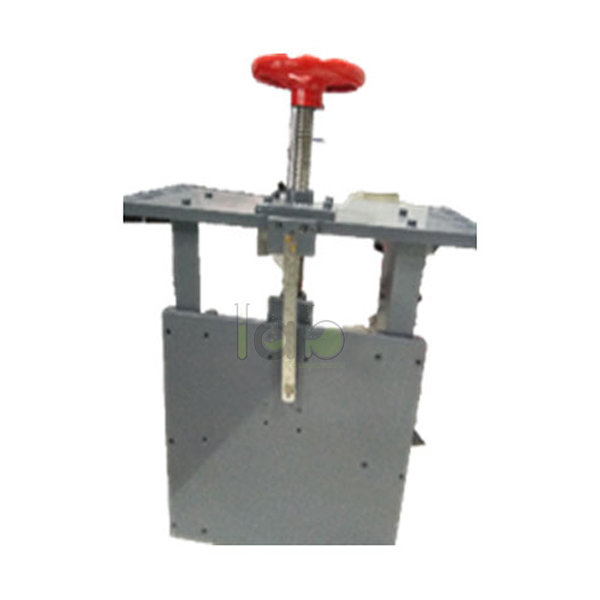

- Sluice Gate (EL-EFFCA-11062)

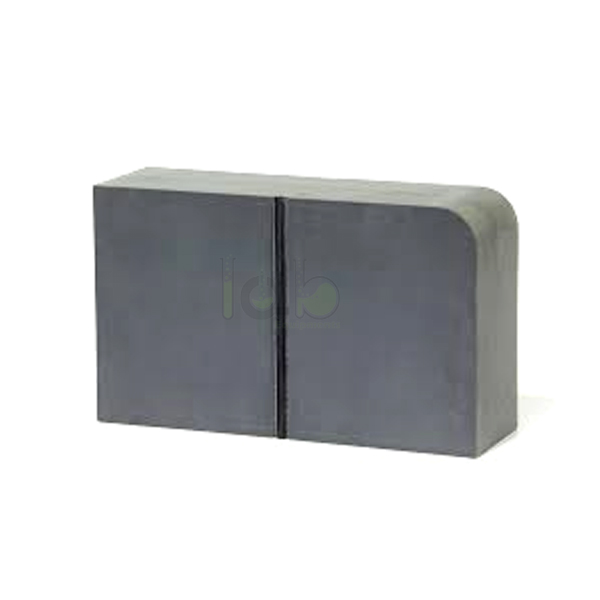

- Broad Crested Weir (EL-EFFCA-11070)
