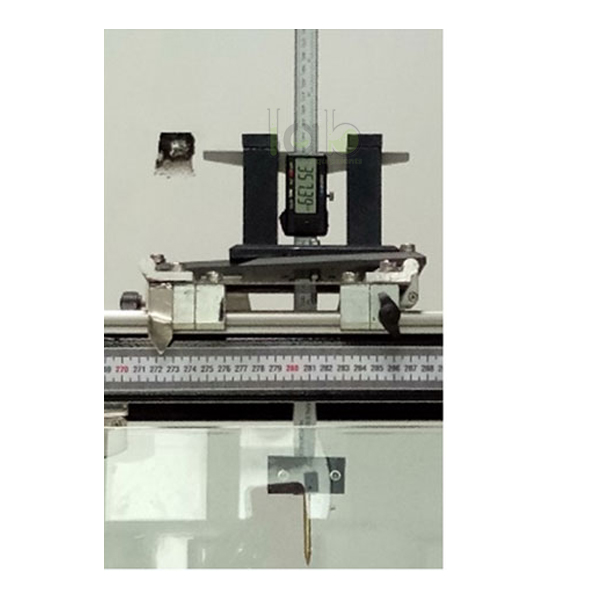

Digital Level Gauge
Product Code : EL-EFFCA-11075
Quick answer: The digital level gauge measures water depth in the Lab Exports experimental flume with a vertically travelling probe tip or hook and shows the reading on a digital display. Resolution is 0.01 mm over 300 mm of travel, which suits head readings for weirs, gates and flumes. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Item | Specification |
|---|---|
| Measuring method | Vertically travelling probe tip or hook |
| Display | Digital, showing water depth |
| Resolution | 0.01 mm |
| Maximum travel | 300 mm |
| Dimensions (L x W x H) | 150 x 120 x 380 mm |
| Weight | Approx. 2 kg |
| Material | Corrosion resistant |
How the level gauge is used
Almost every open-channel result depends on a depth: the head over a weir, the depth upstream of a gate or the depth at a flume throat. Because weir discharge varies with H^1.5 or H^2.5, a small error in head becomes a larger error in flow, so a fine-resolution gauge makes a real difference to the accuracy of Cd values.
The gauge offers two ways to find the surface. A point tip is lowered from above until it just touches the water, which is easy to see. A hook is raised from below until its tip breaks the surface, which avoids the error caused by surface tension drawing water up the probe.
- Fix the carrier at the measuring point on the flume.
- Lower the probe to the channel bed or weir crest and note the zero reading.
- Bring the probe tip or hook to the water surface and read the display.
- Subtract the zero reading to get the depth or head.
Key features
- Digital display gives a direct reading of water depth
- 0.01 mm resolution over 300 mm of vertical travel
- Choice of probe tip from above or hook from below
- Carrier fixes at any position along the experimental section
- Corrosion-resistant construction for wet laboratory use
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the digital level gauge at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Experimental Flume Flow Channel Apparatus products

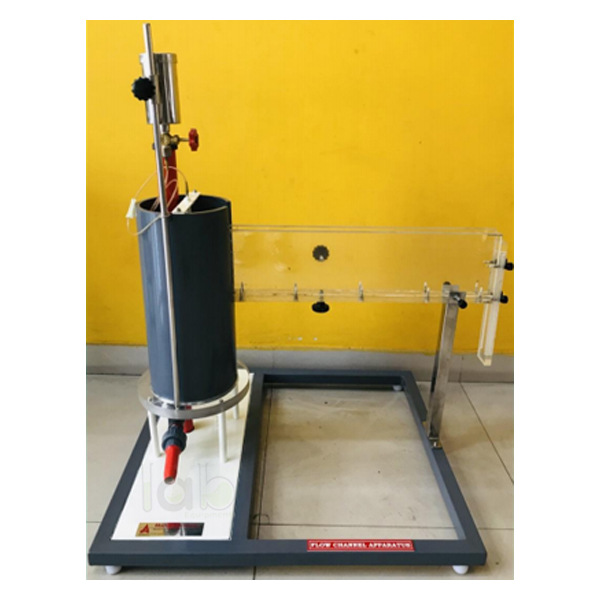

- Flow Channel Apparatus (EL-EFFCA-11076)

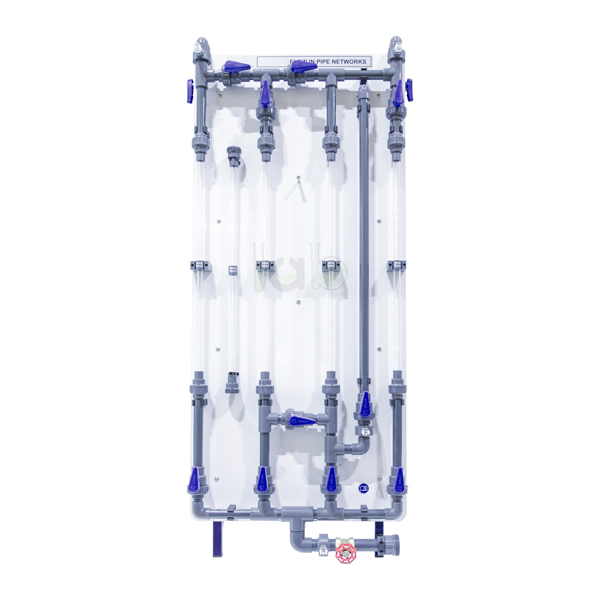

- Pipe Network Apparatus (EL-EFFCA-11077)

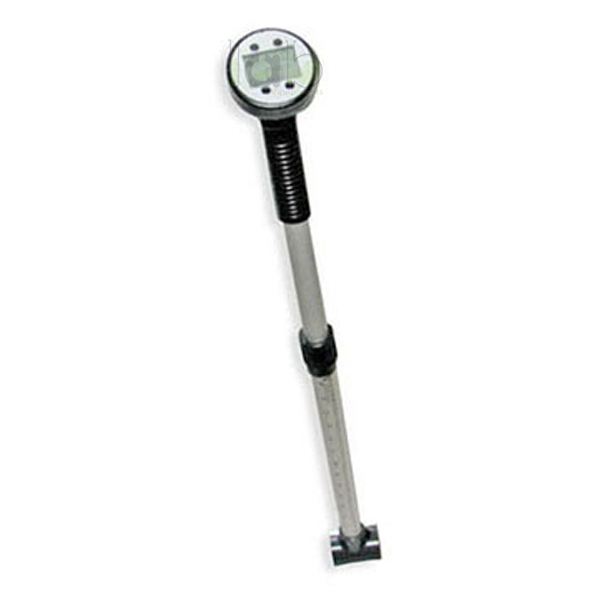

- Velocity Meter (EL-EFFCA-11072)

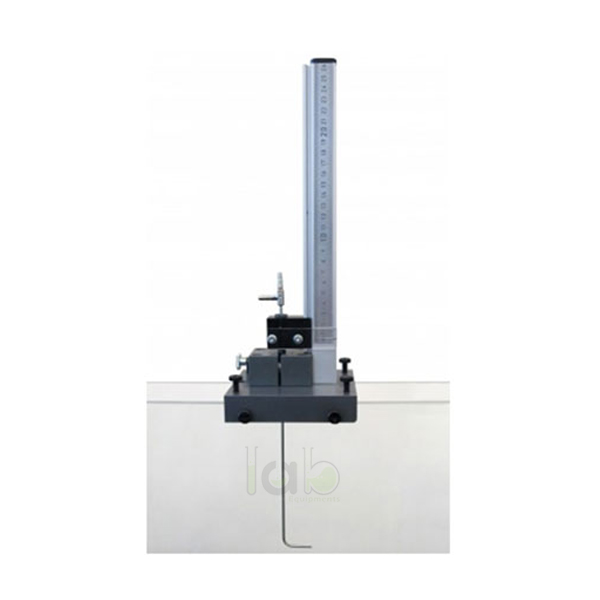

- Pitot Static Tube (EL-EFFCA-11071)

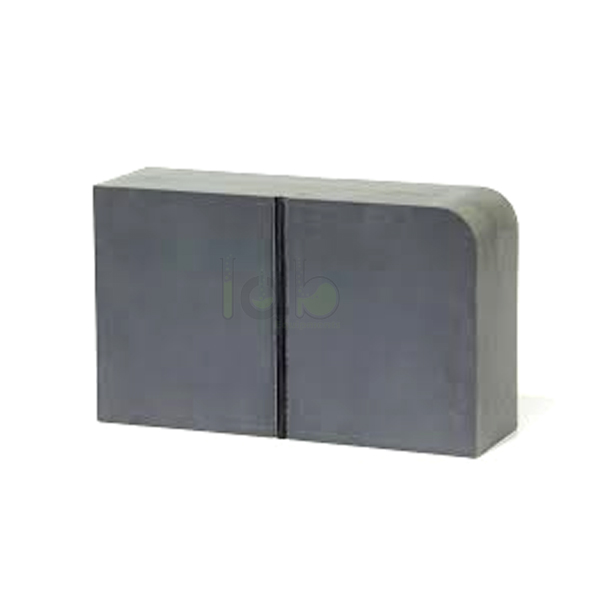

- Broad Crested Weir (EL-EFFCA-11070)

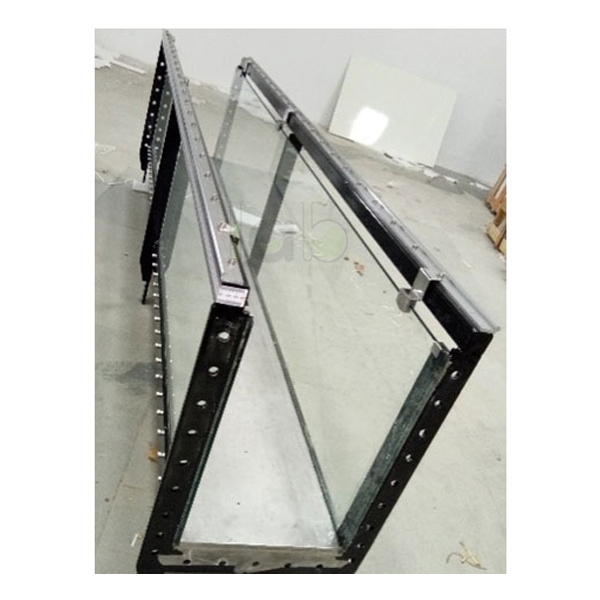

- Extension Element of the Experimental Flume (EL-EFFCA-11069)
The full range is in the Experimental Flume Flow Channel Apparatus section of the Engineering Lab range.
Frequently asked questions
What is the difference between a point gauge and a hook gauge?
A point gauge is lowered until its tip touches the water surface; a hook gauge is raised from below until its tip breaks the surface. The hook method is less affected by surface tension.
What resolution does the digital level gauge have?
It resolves 0.01 mm over a maximum travel of 300 mm.
What is the price of the digital level gauge?
Prices are not published on the website. Add the digital level gauge to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-EFFCA-11075 and the quantity, to receive a quotation.
Does Lab Exports manufacture the digital level gauge?
Yes. Lab Exports manufactures the digital level gauge at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-EFFCA-11075.
