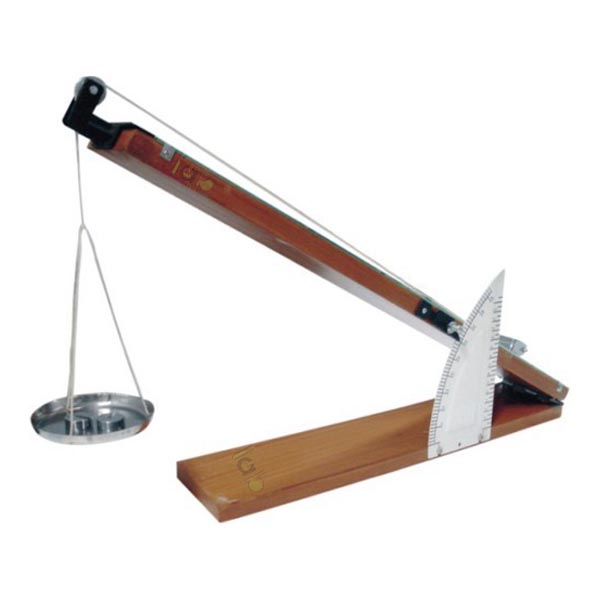

Inclined Plane Economy
Product Code : EL-AM-10329
Quick answer: The Inclined Plane Economy is a 7.5 x 60 cm polished wood plane with a frictionless pulley and an angle set on a graduated cast aluminium arc, supplied with an iron roller, glass plate and scale. It is used in school practicals on the component of a weight along a slope, friction and motion. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Component | Specification |
|---|---|
| Board | Polished wood, 7.5 x 60 cm |
| Pulley | Frictionless |
| Angle scale | Graduated cast aluminium arc, adjustable |
| Included parts | Iron roller, glass plate, scale |
| Variant | Also available with brass parts |
How it is used
The economy plane covers the standard school experiment on an inclined plane. The glass plate provides a smooth running surface for the iron roller. At an angle theta, the component of the roller's weight W acting down the slope is W sin theta, and a cord over the pulley to a hanging load measures the force needed to hold the roller in place.
Comparing runs on the glass plate with runs on the polished wood shows how friction adds to the force needed, and the scale is used to measure distances along the plane for motion work.
- Set the plane to a chosen angle on the graduated cast aluminium arc and read the angle.
- Place the glass plate and the iron roller on the plane and run a cord from the roller over the pulley to a hanging load.
- Adjust the load until the roller just stays at rest, and record it.
- Repeat at other angles and compare the balancing load with W sin theta.
Key features
- Polished wood board, 7.5 x 60 cm
- Frictionless pulley for the load cord
- Graduated cast aluminium arc for adjusting and reading the angle
- Iron roller, glass plate and scale included
- Also available with brass parts
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the economy inclined plane at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Applied Mechanics products
- Inclined Plane Euro (EL-AM-10328)
- Parallelogram Force Apparatus (EL-AM-10330)
- Deluxe Inclined Plane (EL-AM-10327)
- Fletcher Trolley (EL-AM-10331)
- Inclined Plane Brass (EL-AM-10326)
- Moments Disc Apparatus (EL-AM-10332)
The full range is in the Applied Mechanics section of the Physics Lab range.
Frequently asked questions
What size is the Inclined Plane Economy?
The polished wood board is 7.5 x 60 cm.
What parts come with the economy inclined plane?
An iron roller, a glass plate and a scale, with a frictionless pulley and a graduated cast aluminium arc on the plane.
Is a brass version of the inclined plane available?
Yes. The Inclined Plane Economy is also available with brass parts.
What is the price of the economy inclined plane?
Prices are not published on the website. Add the economy inclined plane to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-AM-10329 and the quantity, to receive a quotation.
Does Lab Exports manufacture the economy inclined plane?
Yes. Lab Exports manufactures the economy inclined plane at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-AM-10329.
Request a quote
Email [email protected] with the house code EL-AM-10329 and the quantity, or add the economy inclined plane to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
