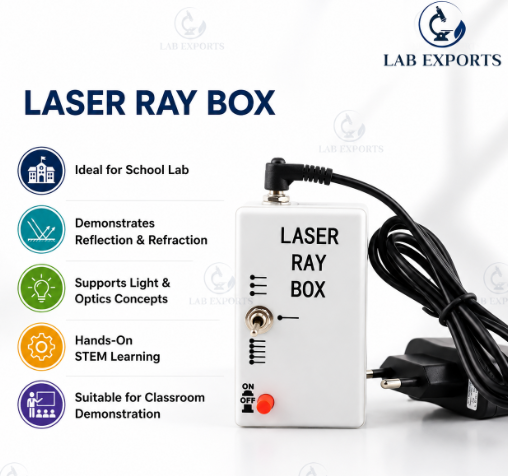

Laser Ray Box
Product Code : SCL-EAE-11128
Quick answer: The Laser Ray Box projects visible rays of light so that students can see and trace light paths in optics practicals. It is used with mirrors, lenses, prisms and transparent blocks to verify the laws of reflection, study refraction and show how convex and concave lenses converge or diverge rays. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Parameter | Detail |
|---|---|
| Function | Projection of visible rays for ray tracing |
| Used with | Mirrors, lenses, prisms, transparent optical blocks |
| Topics | Rectilinear propagation, reflection, refraction, lens ray paths |
For the number of rays, power source and accessories supplied, email [email protected] with the house code SCL-EAE-11128.
How the laser ray box experiment is done
A narrow, bright laser ray stays sharp across a whole sheet of paper, so the incident and emergent rays can be marked with a pencil and joined up afterwards. This turns textbook ray diagrams into measurements: at a plane mirror the angle of incidence equals the angle of reflection, and at a boundary between air and glass the ray bends according to Snell's law, n1 sin i = n2 sin r.
- Place the ray box on a stable table with a sheet of paper as the ray-tracing surface.
- Connect the power source as given in the supplied instructions.
- Set the mirror, lens, prism or block on the paper in the path of the ray and switch on.
- Mark points along the incident and emergent rays, then switch off and draw the ray paths.
- Measure the angles with a protractor and compare them with the laws of reflection or refraction.
With a convex lens, parallel rays meet at the principal focus; with a concave lens they spread out as if from a focus behind the lens. Never look into the laser aperture or point the beam at anyone's eyes, and keep reflecting surfaces angled down towards the bench.
Key features
- Projects visible light paths for direct observation during optics experiments.
- Supports verification of the laws of reflection with suitable mirrors.
- Shows refraction as light passes between air and transparent media.
- Traces converging and diverging rays through convex and concave lenses.
- Follows ray paths through prisms and transparent optical blocks.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the laser ray box at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrical and Electronics products
- Resonance Strips Model (SCL-EAE-11127)
- K Constant Spring (SCL-EAE-11126)
- Solar Wind Dynamo Model (SCL-EAE-11130)
- Copper Voltameter (SCL-EAE-11125)
- Tuning Fork Set of 8 - Welch (SCL-EAE-11124)
- Electrical Transformer (SCL-EAE-11122)
The full range is in the Electrical and Electronics section of the Physics Lab range.
Frequently asked questions
What experiments can be done with a laser ray box?
Rectilinear propagation of light, verification of the laws of reflection, refraction through transparent blocks, ray paths through prisms, and convergence and divergence by convex and concave lenses.
How should students use a laser ray box safely?
Under supervision: never look into the beam or aim it at anyone's eyes, and keep mirrors and other reflecting surfaces angled towards the bench.
What is the price of the laser ray box?
Prices are not published on the website. Add the laser ray box to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code SCL-EAE-11128 and the quantity, to receive a quotation.
Does Lab Exports manufacture the laser ray box?
Yes. Lab Exports manufactures the laser ray box at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code SCL-EAE-11128.
