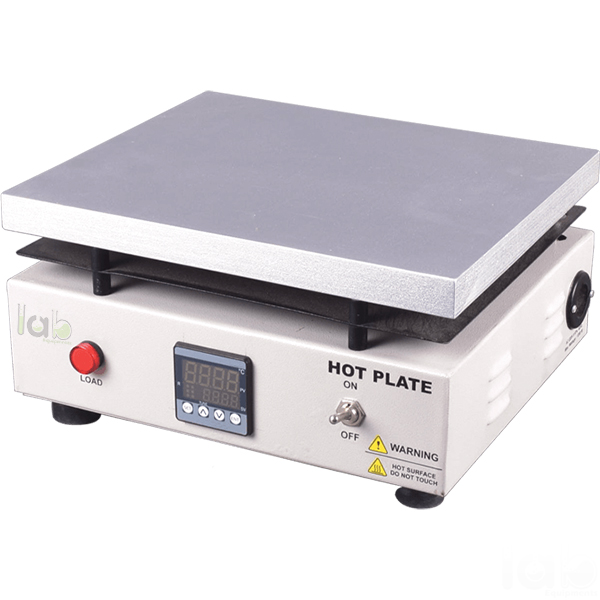

Laboratory Digital Rectangular Hot Plate
Product Code : EL-HP-10687
Quick answer: The laboratory digital rectangular hot plate is a large flat heater that takes several beakers or flasks at once, used for evaporation, digestion and general heating. A PID controller reading an external probe regulates the cast iron plate up to 350 °C, and three sizes run from 30 x 25 cm to 45 x 30 cm. Lab Exports manufactures it in Delhi for school, college and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Type | Rectangular digital hot plate |
| Plate | Heavy-duty cast iron enclosing the heating element |
| Body | MS (mild steel) |
| Maximum surface temperature | Up to 350 °C |
| Control | PID controller with external temperature probe |
| Power rating options | 1.2 kW, 1.6 kW |
| Size options | 30 x 25 cm (12 x 10 in), 40 x 25 cm (16 x 10 in), 45 x 30 cm (18 x 12 in) |
| Supplied with | External temperature probe, support rods and clamps |
How the digital hot plate is used
A flat hot plate suits flat-bottomed vessels such as beakers, conical flasks, evaporating dishes and trays, which sit in full contact with the surface. The thick cast iron plate stores heat and spreads it across its area, so vessels placed at different points warm at a similar rate and the surface temperature stays steady when a cold vessel is added.
Temperature is set on the digital PID controller. With the external probe placed in the liquid or on the plate, the controller compares the reading with the set point and adjusts power continuously, which gives a repeatable temperature for evaporating extracts, concentrating solutions or running several digestions side by side.
- Choose the plate size to fit the number and footprint of vessels to be heated.
- Stand the vessels on the plate and clamp the external probe on the support rod so its tip sits in the liquid.
- Set the required temperature on the PID controller and switch on.
- Leave the controller to hold the set point while the samples evaporate or digest.
- Switch off and allow the cast iron plate to cool before moving the unit.
Key features
- PID controller for precise regulation from an external probe
- Heavy-duty cast iron plate enclosing a robust heating element
- MS body construction
- Three plate sizes, from 30 x 25 cm to 45 x 30 cm
- Power ratings of 1.2 kW and 1.6 kW
- Probe, support rods and clamps included
Supplied with the hot plate
- External temperature probe
- Support rods
- Clamps
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Laboratory Digital Rectangular Hot Plate at its works in Laxmi Nagar, Delhi, and supplies it to school, college, research and industrial laboratories in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Hot Plates products

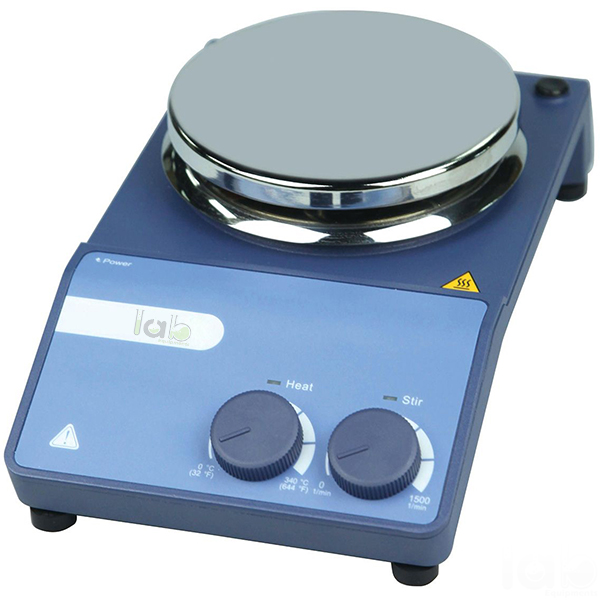

- Hotplate & Magnetic Stirrer (EL-HP-10686)

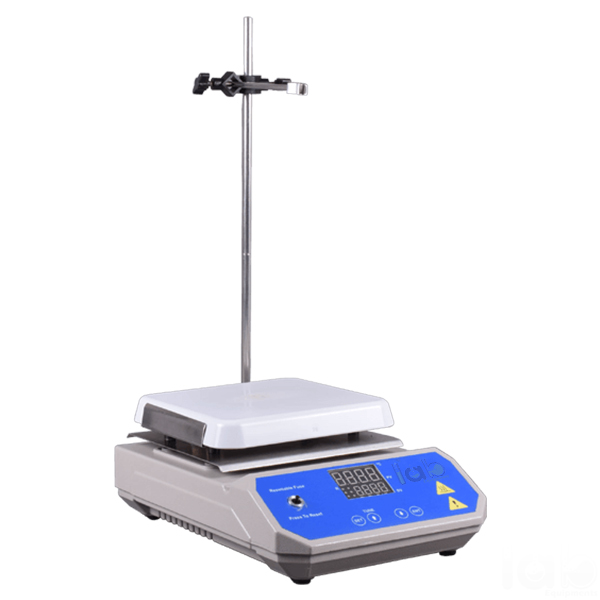

- Laboratory Advanced Ceramic Hot Plate (EL-HP-10688)

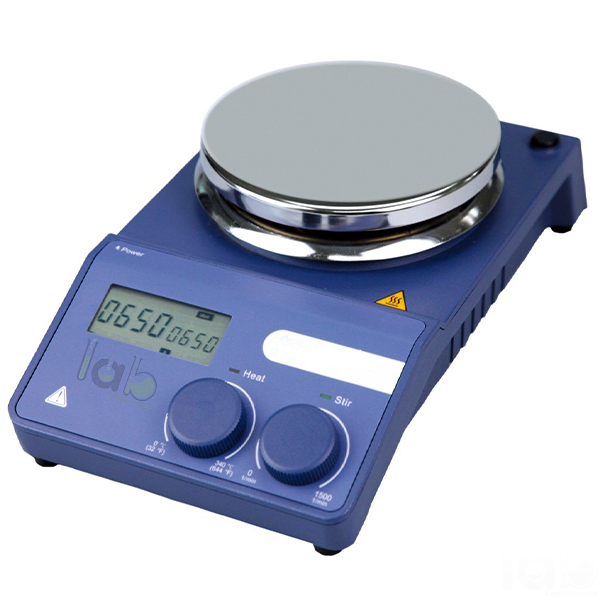

- Hotplate & Magnetic Stirrer Pro (EL-HP-10685)

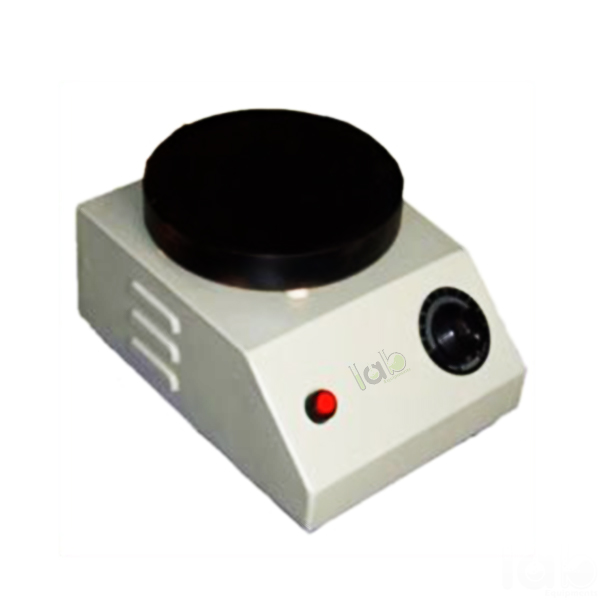

- Laboratory Round Hot Plate (EL-HP-10689)

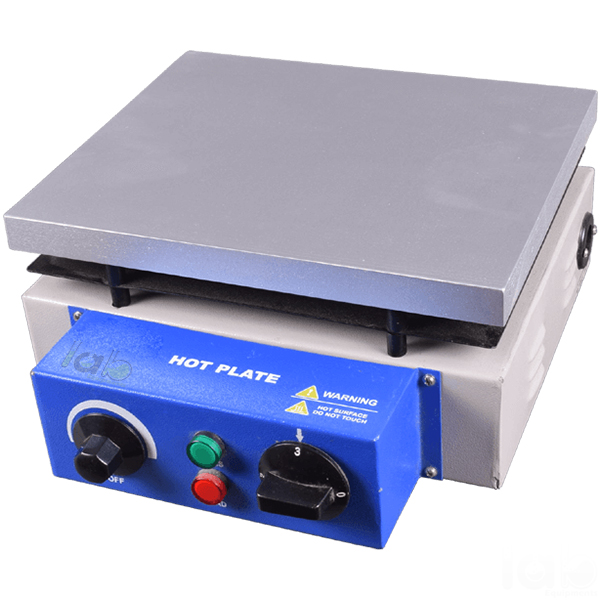

- Laboratory Rectangular Hot Plate (EL-HP-10690)

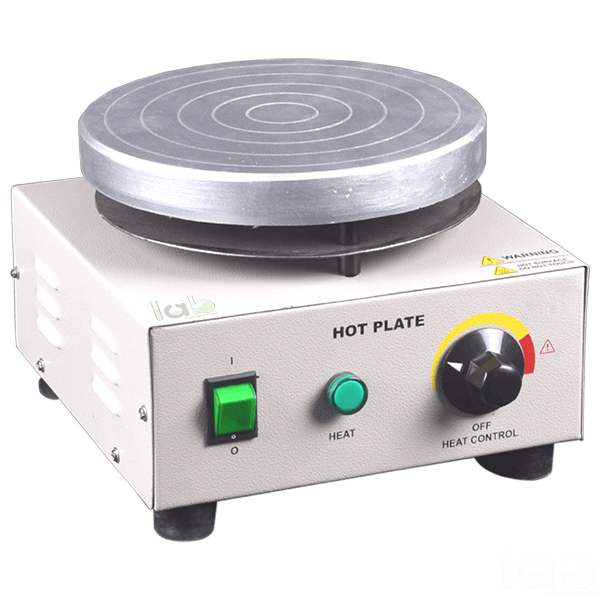

- Hot Plate General Purpose (EL-HP-10691)
The full range is in the Hot Plates section of the Laboratory Equipment range.
Frequently asked questions
What sizes of digital rectangular hot plate are available?
Three sizes are offered: 30 x 25 cm (12 x 10 in), 40 x 25 cm (16 x 10 in) and 45 x 30 cm (18 x 12 in), with power ratings of 1.2 kW and 1.6 kW.
How is the temperature of the digital hot plate controlled?
A PID controller reads the external temperature probe and adjusts the power to hold the set temperature, up to a maximum surface temperature of 350 °C.
Which vessels work best on a rectangular hot plate?
Flat-bottomed glassware and metal vessels, such as beakers, conical flasks, evaporating dishes and trays, because they sit in full contact with the cast iron surface.
What is the price of the Laboratory Digital Rectangular Hot Plate?
Prices are not published on the website. Add the Laboratory Digital Rectangular Hot Plate to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-HP-10687 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Laboratory Digital Rectangular Hot Plate?
Yes. Lab Exports manufactures the Laboratory Digital Rectangular Hot Plate at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-HP-10687.
