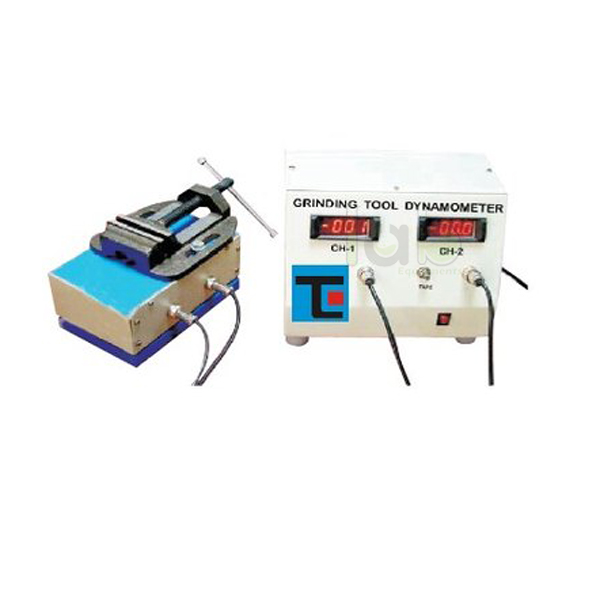

Grinder Tool Dynamometers
Product Code : EL-TOML-11034
Quick answer: The grinder tool dynamometer measures two components of the grinding force at the same time, giving students a practical set-up for tool design study. Two octagonal rings with strain gauges sense forces of 0 to 200 kg per direction, shown on a two-channel digital force indicator. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Component | Specification |
|---|---|
| Sensing unit | Two octagonal rings with strain gauges |
| Force range | 0 to 200 kg in each coordinate direction |
| Mechanical unit size | 300 x 300 mm |
| Force indicator | Two-channel digital, with balancing potentiometers and polycarbonate front plate |
| Construction | Rigid, compact unit |
| Power supply | 230 V, single phase, 50 Hz stabilised |
How the grinding force test is done
A grinding wheel removes metal with thousands of small abrasive grains, each acting as a tiny cutting edge with a large negative rake. The resulting force is usually resolved into a tangential component, which sets the power used, and a normal component pressing the wheel and work apart, which affects accuracy, wheel wear and surface finish. In grinding, the normal force is often larger than the tangential force.
The dynamometer is mounted under the work on the grinding machine, so the force of the wheel on the work passes through the octagonal rings. The two indicator channels show the components during the pass, and repeating the test at different depths of cut, feeds, speeds and work materials shows how each parameter changes the grinding force.
- Mount the dynamometer on the grinding machine table and clamp the work piece on it.
- Zero both channels with the balancing potentiometers.
- Set the wheel speed, table feed and depth of cut.
- Make a grinding pass and record both force readings.
- Repeat for other settings and materials and plot force against depth of cut.
Key features
- Measures two grinding force components at the same time
- Two octagonal rings with strain gauge sensors
- Range of 0 to 200 kg in each coordinate direction
- Rigid, compact 300 x 300 mm mechanical unit
- Two-channel digital force indicator with balancing potentiometers and polycarbonate front plate
- Demonstration set-up for tool design study
Documentation and supply
Installation instructions and a manual are supplied with the apparatus. Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the grinder tool dynamometer at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Theory of Machine Lab products

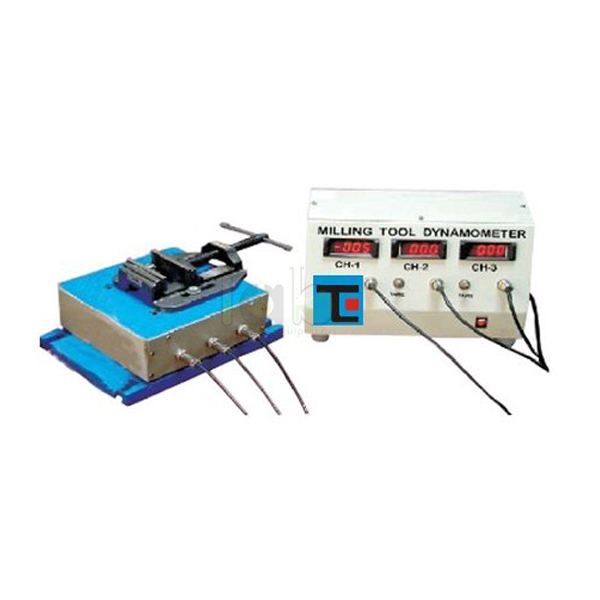

- Milling Tool Dynamometers (EL-TOML-11033)

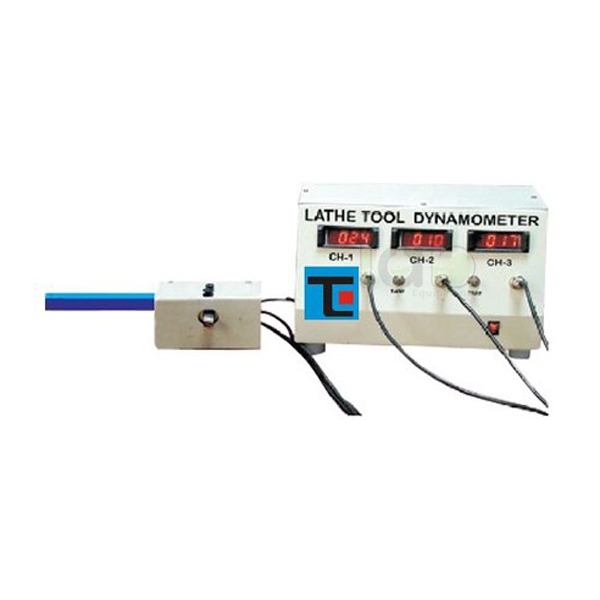

- Lathe Tool Dynamometers (EL-TOML-11035)
- Tool Dynamometers (EL-TOML-11032)
- Drilling Tool Dynamometers (EL-TOML-11036)
- Dead Weight Pressure Gauge Tester (EL-TOML-11031)
- Journal Bearing Apparatus (EL-TOML-11030)
The full range is in the Theory of Machine Lab section of the Engineering Lab range.
Frequently asked questions
What is the force range of the grinder tool dynamometer?
0 to 200 kg in each coordinate direction, on two channels.
How many force components does it measure?
Two force components at the same time, shown on a two-channel digital force indicator.
What is the price of the grinder tool dynamometer?
Prices are not published on the website. Add the grinder tool dynamometer to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-TOML-11034 and the quantity, to receive a quotation.
Does Lab Exports manufacture the grinder tool dynamometer?
Yes. Lab Exports manufactures the grinder tool dynamometer at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-TOML-11034.
