Lathe Tool Dynamometers
Product Code : EL-TOML-11035

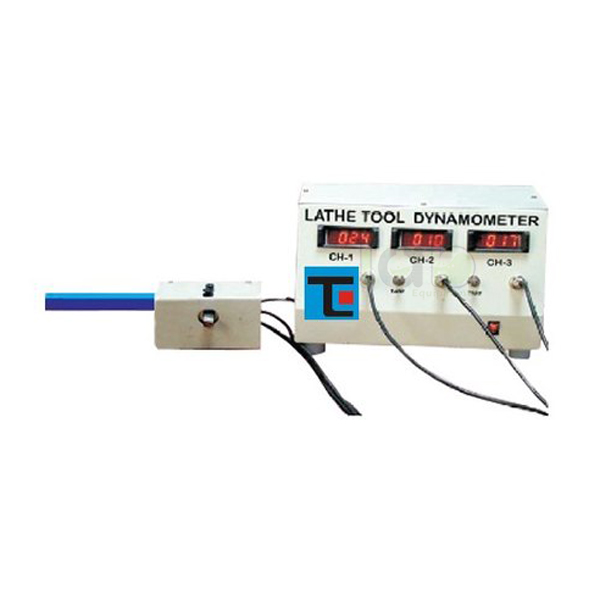

The Lathe Tool Dynamometer from Lab Exports is a strain gauge type, two-component dynamometer designed to measure vertical and horizontal cutting forces during an orthogonal cutting process on a lathe. It allows students to study how these forces change with variations in speed, depth of cut and feed.
Specifications
| Sensing Unit | Mechanical sensing unit / tool holder with strain gauges |
| Tool | H.S.S. tool of 1/2" size included |
| Mounting | Fits on top of the cross slide after removing the swivel base and compound slide of a lathe |
| Force Indicator | Control panel with digital force indicator to measure two forces simultaneously |
| Control Panel Includes | Balancing potentiometers, connecting cable, necessary switches and fuses |
| Measurement Type | Vertical and horizontal cutting forces (two-component) |
Key Features
- Rigid construction with sensitive transducing and amplifying system for accurate force measurement
- Compact digital force indicator
- Allows use of cutting fluid during operation
- Measures vertical and horizontal forces simultaneously during orthogonal cutting
- Strain gauge based two-component sensing method
- Enables study of force variation with changing speed, cut and feed
Applications
The Lathe Tool Dynamometer is used in production and manufacturing engineering laboratories to study cutting forces during orthogonal turning operations on a lathe, helping students correlate machining parameters such as speed, depth of cut and feed with the resulting vertical and horizontal cutting forces.
Why Choose Lab Exports
Lab Exports is a trusted manufacturer and exporter of engineering lab equipment including a complete range of Theory of Machine Lab apparatus for engineering colleges and technical institutes. Every unit is built for classroom durability, measurement accuracy and long-term reliability, backed by responsive after-sales support.
Related Products in Theory of Machine Lab
- Tool Dynamometers
- Milling Tool Dynamometer
- Grinder Tool Dynamometer

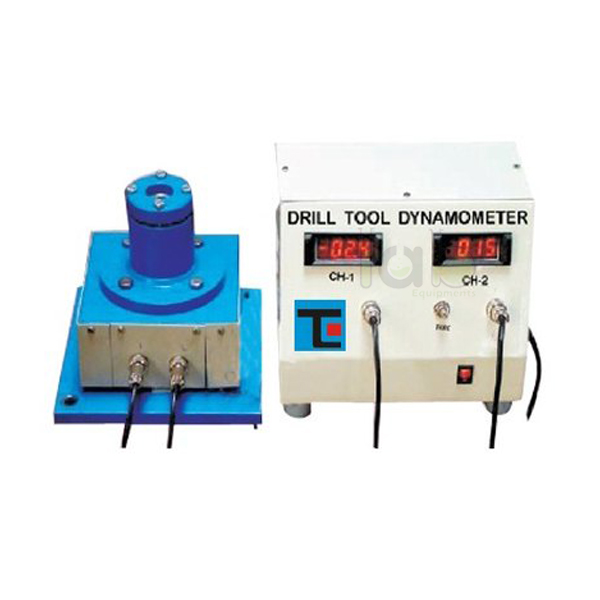

- Drilling Tool Dynamometer

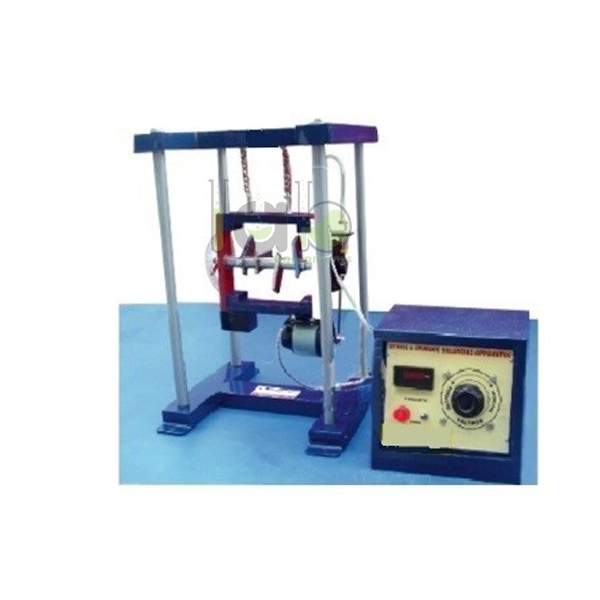

- Static Dynamic Balancing Apparatus
Frequently Asked Questions
Q1. What does a Lathe Tool Dynamometer measure?
It measures vertical and horizontal cutting forces during orthogonal cutting on a lathe, using a strain gauge type sensing system.
Q2. How is the sensing unit mounted?
The mechanical sensing unit or tool holder is mounted on top of the cross slide after removing the swivel base and compound slide of a lathe.
Q3. What tool comes with the dynamometer?
An H.S.S. tool of 1/2" size is included as part of the supply.
Q4. Can cutting fluid be used during operation?
Yes, the design allows the use of cutting fluid during the cutting process.
Q5. What parameters can students study with this apparatus?
Students can study how vertical and horizontal cutting forces change with variations in speed, depth of cut and feed.
Request a Quote
For pricing, specifications or export documentation on the Lathe Tool Dynamometer, contact Lab Exports for a detailed quotation.
