Pitot Static Tube
Product Code : EL-EFFCA-11071
Quick answer: The pitot static tube measures local water velocity in the Lab Exports experimental flume. It reads total and static pressure at one point, and the difference shown on twin tube manometers (2 x 0-350 mm WS) gives the velocity. A holder with a 0-240 mm scale sets the depth for velocity profiles. Lab Exports manufactures it in Delhi for engineering colleges, polytechnics and TVET institutes.
Specifications
| Item | Specification |
|---|---|
| Function | Discharge velocity from differential pressure |
| Positioning | Holder with vertical scale showing tube position |
| Vertical scale | 0 to 240 mm, 1 mm graduation |
| Connections | Hoses to twin tube manometers |
| Pressure range | 2 x 0 to 350 mm WS |
| Dimensions (L x W x H) | 250 x 180 x 510 mm |
| Weight | Approx. 3 kg |
How the velocity profile is measured
The pitot-static tube has a forward-facing opening that senses total pressure and side holes that sense static pressure. By Bernoulli's equation the difference between them is the dynamic pressure, so the local velocity is v = sqrt(2 g dh), where dh is the difference between the two manometer columns in metres of water.
In an open channel the velocity is not uniform: it is lowest near the bed and walls and highest a little below the surface. Traversing the tube vertically and integrating the readings over the flow area gives a discharge that students can check against the flume's rotameter.
- Fix the carrier at the chosen station along the experimental section.
- Bleed the hoses and manometer tubes so that no air is trapped.
- Lower the tube to the first depth on the vertical scale, facing upstream.
- Read the two manometer columns and note the difference.
- Step through the depth and repeat, then plot velocity against height.
Key features
- Reads total and static pressure at the same point in the flow
- Twin tube manometers show both pressures together
- Carrier can be fixed at any position along the experimental section
- Tube moves vertically on a 0-240 mm scale with 1 mm graduation
- Measuring range of 2 x 0 to 350 mm water column
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the pitot static tube at its works in Laxmi Nagar, Delhi, and supplies it to engineering colleges, polytechnics and TVET institutes in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Experimental Flume Flow Channel Apparatus products
- Broad Crested Weir (EL-EFFCA-11070)
- Velocity Meter (EL-EFFCA-11072)
- Extension Element of the Experimental Flume (EL-EFFCA-11069)

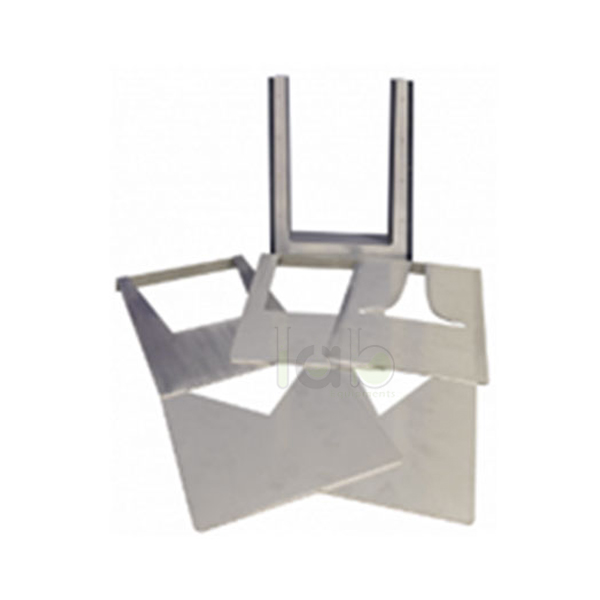

- Set of Plate Weirs, Four Types (EL-EFFCA-11068)
- Digital Level Gauge (EL-EFFCA-11075)
- Venturi Flume (EL-EFFCA-11066)
The full range is in the Experimental Flume Flow Channel Apparatus section of the Engineering Lab range.
Frequently asked questions
How is velocity found with a pitot static tube?
The manometers show total and static pressure; the difference is the dynamic pressure, and the velocity is v = sqrt(2 g dh).
Can the tube measure at different depths and positions?
Yes. The carrier fixes at any station along the flume, and the tube moves vertically against a 0-240 mm scale.
What is the price of the pitot static tube?
Prices are not published on the website. Add the pitot static tube to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-EFFCA-11071 and the quantity, to receive a quotation.
Does Lab Exports manufacture the pitot static tube?
Yes. Lab Exports manufactures the pitot static tube at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-EFFCA-11071.
