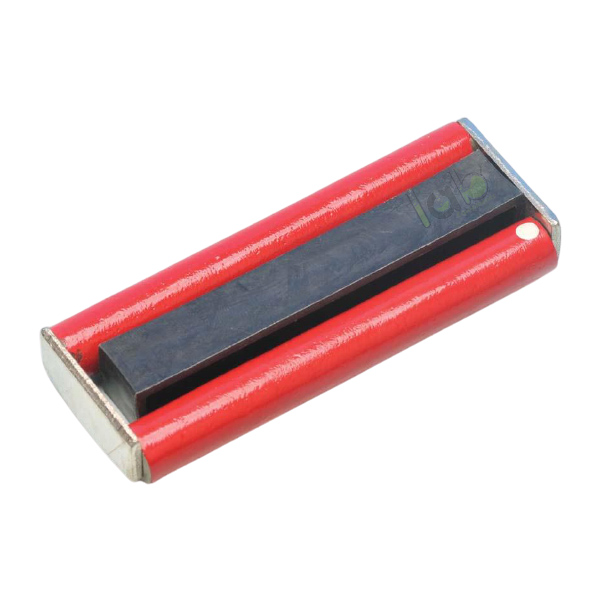

Alnico Cylindrical Magnet Pair
Product Code : EL-M-10300
Quick answer: The Alnico cylindrical magnet pair is two rod-shaped Alnico magnets, 10 mm in diameter, supplied with keepers in lengths of 50, 75, 100 or 150 mm. Alnico keeps a strong field for years, so the pair suits field-line mapping, polarity and attraction-repulsion work in school and college labs. Lab Exports manufactures it in Delhi for schools, colleges and universities.
Specifications
| Attribute | Detail |
|---|---|
| Material | Alnico |
| Strength | High, long-lasting magnetism |
| Form | Cylindrical rod, 10 mm diameter |
| Lengths | 50, 75, 100 and 150 mm |
| Supplied as | Pair, with keepers |
Uses
Alnico holds a strong, stable magnetisation, so even a slim 10 mm rod produces a field that a plotting compass detects well away from its ends. The cylindrical shape suits experiments where the magnet is rolled, hung from a thread or pushed into a coil, and the pair allows two-magnet field patterns to be set up side by side or end to end.
Typical activities include tracing the field of a single rod, finding neutral points between two rods, showing that like poles repel and unlike poles attract, and moving a rod into and out of a coil connected to a galvanometer to show electromagnetic induction.
Key features
- Alnico keeps its magnetism longer than standard steel rod magnets.
- Slim 10 mm diameter rod slides easily into coils and holders.
- Four lengths: 50, 75, 100 and 150 mm.
- Keepers supplied to protect strength between lessons.
- Strong enough for college demonstrations as well as school practicals.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Alnico cylindrical magnet pair at its works in Laxmi Nagar, Delhi, and supplies it to schools, colleges and universities in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Magnetism products
- Cylindrical Bar Magnet, Pair, Chrome Steel (EL-M-10299)
- Horseshoe Magnet Chrome Steel (EL-M-10301)
- Alnico Bar Magnet Pair (EL-M-10298)
- Alnico Horseshoe Magnet (EL-M-10302)

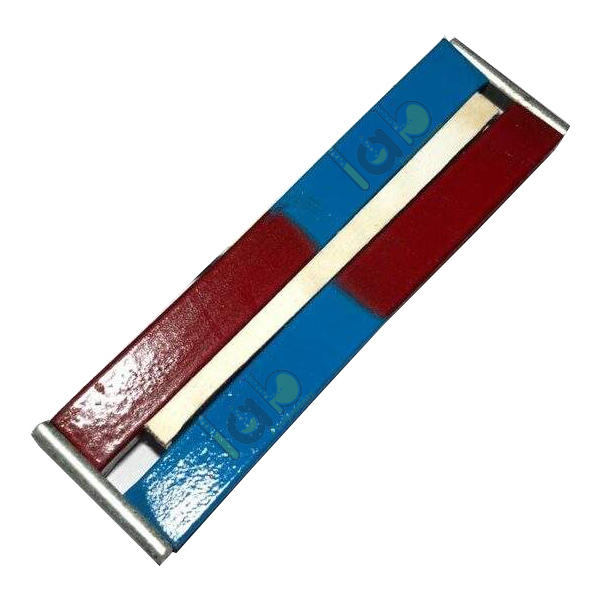

- Bar Magnet Pair Chrome Steel (EL-M-10297)
- U-Shaped Magnet, Chrome Steel (EL-M-10303)
The full range is in the Magnetism section of the Physics Lab range.
Frequently asked questions
Which sizes are available for the Alnico cylindrical magnet pair?
Four sizes, all 10 mm in diameter: 50, 75, 100 and 150 mm long.
Can the cylindrical Alnico magnet be used for electromagnetic induction?
Yes. Moving the rod into or out of a coil connected to a galvanometer induces a current, a standard demonstration of Faraday's law.
What is the price of the Alnico cylindrical magnet pair?
Prices are not published on the website. Add the Alnico cylindrical magnet pair to the Enquiry Cart with the Add To Cart button on this page, or email [email protected] with the house code EL-M-10300 and the quantity, to receive a quotation.
Does Lab Exports manufacture the Alnico cylindrical magnet pair?
Yes. Lab Exports manufactures the Alnico cylindrical magnet pair at its works at 11/315, Lalita Park, Laxmi Nagar, Delhi 110092, under house code EL-M-10300.
Request a quote
Email [email protected] with the house code EL-M-10300 and the quantity, or add the Alnico cylindrical magnet pair to the Enquiry Cart with the Add To Cart button on this page. Tender buyers can also see the Tenders and OEM page.
