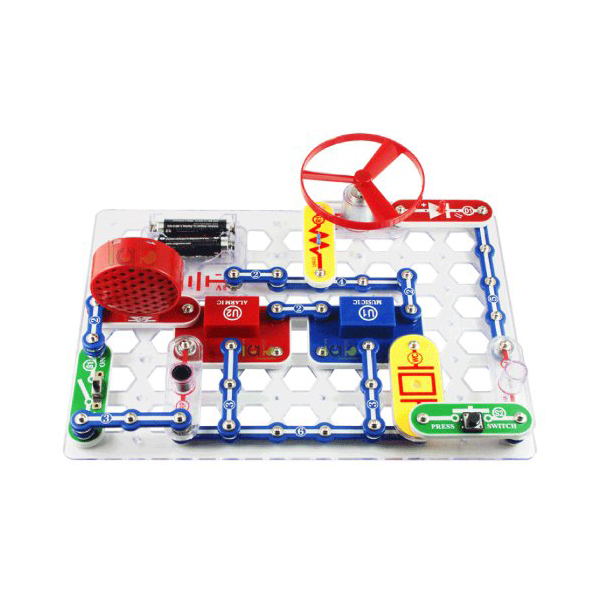

Circuit Board Junior
Product Code : EL-EAE-10292
Quick answer: The Circuit Board Junior is a low-voltage board on which young students build simple electric circuits and see how a switch, fuse, bulb and small fan behave. It is single-sided with a transparent plastic base, runs on 3 V DC and carries a cell holder, ON/OFF switch, connectors, fan, fuse and bulb holder. Lab Exports manufactures it in Delhi for schools.
Specifications
| Item | Specification |
|---|---|
| Board type | Single sided |
| Base | Transparent plastic |
| Operating voltage | 3 V DC |
| Components | Cell holder, ON/OFF switch, connectors, fan, fuse, bulb holder |
How the board is used in teaching
The Circuit Board Junior introduces the idea of a complete circuit. Students join the cell holder, switch and bulb holder with the connectors, close the switch and see the bulb light; opening the switch or breaking a connection stops the current and the bulb goes out. Replacing the bulb with the fan shows that the same electrical energy can produce motion instead of light.
The fuse gives a first look at circuit protection: it is the deliberately weak link that breaks the circuit if too much current flows. Because the base is transparent, pupils can trace each connection by eye and relate the circuit they build to the circuit diagram they draw.
- Fit cells into the cell holder to give the 3 V DC supply.
- Join the cell holder, ON/OFF switch and bulb holder in a loop using the connectors.
- Switch on and observe the bulb; switch off and note that the circuit is broken.
- Swap the bulb for the fan, or add the fuse in series, and discuss what each component does.
Key features
- Transparent plastic base so pupils can follow every connection.
- Low 3 V DC operation suited to junior classes.
- Cell holder, ON/OFF switch and connectors for building a complete circuit.
- Bulb holder and fan to show electrical energy turned into light and motion.
- Fuse included to introduce circuit protection.
- Single-sided layout that keeps the board simple to set up and clear away.
Documentation and supply
Most Lab Exports products carry a one-year manufacturer warranty.
Lab Exports manufactures the Circuit Board Junior at its works in Laxmi Nagar, Delhi, and supplies it to schools in India and 60+ countries, handling the export documents for each shipment. More about the company is on the About Lab Exports page.
Related Electrical and Electronics products
- Pencil Jockey (EL-EAE-10291)

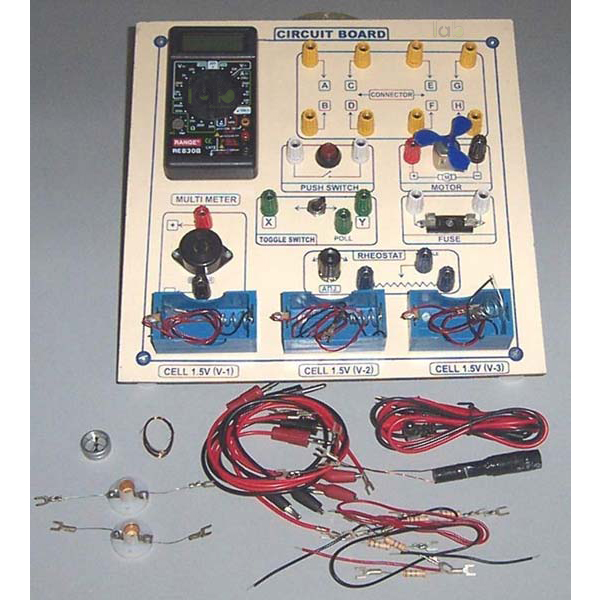

- Circuit Board Senior (EL-EAE-10293)
